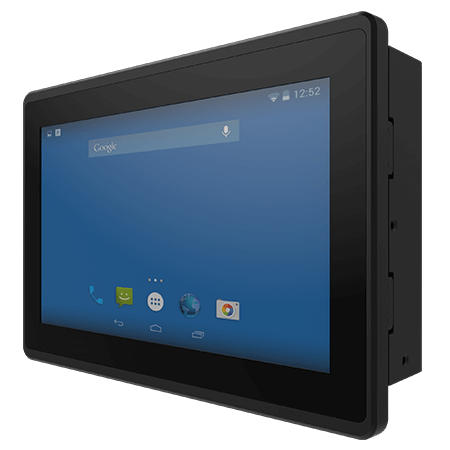

Winmate W07FA3S-EHO1 7 Inch E Series HMI Panel PC
Designed for industrial applications, the Winmate W07FA3S-EHO1 7 Inch E Series HMI Panel PC provides a compact control interface with robust environmental protection. Its metal housing and front panel sealed to IP65 ensure effective dust and water resistance, suitable for manufacturing environments with temperature and humidity variations. The fanless design lowers maintenance needs by reducing mechanical part failures, supporting continuous operation from 0°C to 50°C with up to 90% non-condensing humidity.
Powered by an NXP i.MX6 dual-core processor and equipped with up to 2GB memory and 32GB onboard storage, it offers reliable performance for diverse industrial software platforms including Linux and Android. The high-brightness 7-inch capacitive touchscreen with 1000 nits brightness delivers clear, sharp visibility under variable lighting conditions. Multiple connectivity options such as USB, serial, CANBUS, LAN with PoE support, and optional micro HDMI enhance integration flexibility within complex control systems. The unit mounts via VESA standard, facilitating secure installation in field-ready setups.
W07FA3S-EHO1 Features
- 7” 1024 x 600 PCAP touchscreen
- NXP i.MX6 Dual Core
- Fanless cooling system
- Front IP65
- 1 x USB ; 1 x RS232 /422/485; 1 x CAN BUS
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
7.0 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1024x600
Panel Brightness
1000.0 nits
Contrast Ratio
700:1
View Angles
75-75-75-70
Active Area
153.6x90 mm
Processor
NXP i.MX6 Dual Core- 1.0GHz
Memory
1GB 2GB (Optional)
Storage
eMMC: Onboard 16 GB eMMC: Onboard 32 GB (Optional)
Operating System
Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional)
Dimension
185 x 128 x 56 mm
Cut out
174.9 x 117.7 mm
Weight
0.9 kg
Mounting
Panel mount VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
1 x Console Port (Mini USB) 1 x USB OTG 1 x USB2.0 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232)
LAN
1 x LAN RJ45 Connector with PoE(PD- 802.3 at)
Video
1 x Micro HDMI (Optional)
SD Card Slot
1 x Micro SD card slot
Expansion Port
1 x mPCIe slot(for Wi-Fi module)
CANBUS
1 x CANBUS- D-sub9
Power Input
1 x 12V DC- 2-Pin Terminal Block
Accessory
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
Power Rating
12V DC
Adapter
12V 50W
The Winmate W07FA3S-EHO1 7 Inch E Series HMI Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W07FA3S-EHO1 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Pharmaceutical.
Across these sectors, the W07FA3S-EHO1 is typically used in applications such as Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access.
These examples demonstrate the versatility of the W07FA3S-EHO1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W07FA3S-EHO1 is appropriate for your specific application, please contact us.
The Winmate W07FA3S-EHO1 7 Inch E Series HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W07FA3S-EHO1 7 Inch E Series HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W07FA3S-EHO1 7 Inch E Series HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W07FA3S-EHO1 7 Inch E Series HMI Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W07FA3S-EHO1 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
