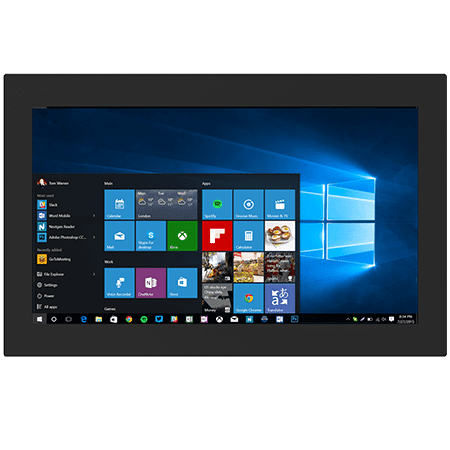

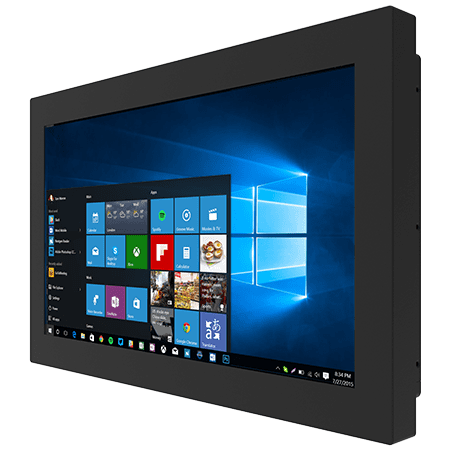

Winmate W15IAD3S-CHA2 15.6 Inch Chassis Panel PC
For industrial environments requiring reliable panel PCs, the Winmate W15IAD3S-CHA2 15.6 Inch Chassis Panel PC offers durability and consistent operation. This device is housed in a metal chassis with fanless cooling, reducing wear in dust and vibration-heavy settings. It features an IP65-rated sealed front panel protecting against dust and water, suitable for manufacturing and automation tasks. Powered by an Intel Core i5-1235U processor and supporting DDR5 memory up to 32GB alongside various NVMe and SATA SSD options, it meets demanding workflow needs with continuous duty capability.
The system supports dual 2.5 Gigabit LAN ports and multiple serial connections, ensuring robust network integration. An optional resistive touchscreen provides dependable input across lighting conditions. Certified to IEC and CE/FCC standards, it also withstands a temperature range of 0°C to 50°C and up to 90% humidity non-condensing, emphasising its suitability for diverse industrial indoor deployments. Its vibration tolerance and shock-resistant build further reinforce reliability across extended field use.
W15IAD3S-CHA2 Features
- 15.6” 1366 x 768 Resolution Chassis Panel PC
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
15.6 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1366x768
Panel Brightness
400.0 nits
Contrast Ratio
500:1
View Angles
85-85-80-80
Active Area
344.232x195.536 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
398.3 x 254 x 69 mm
Weight
4.3 kg
Mounting
VESA mount
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 120W"
The Winmate W15IAD3S-CHA2 15.6 Inch Chassis Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W15IAD3S-CHA2 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Rail And Transport.
Across these sectors, the W15IAD3S-CHA2 is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the W15IAD3S-CHA2 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W15IAD3S-CHA2 is appropriate for your specific application, please contact us.
The Winmate W15IAD3S-CHA2 15.6 Inch Chassis Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W15IAD3S-CHA2 15.6 Inch Chassis Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W15IAD3S-CHA2 15.6 Inch Chassis Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W15IAD3S-CHA2 15.6 Inch Chassis Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W15IAD3S-CHA2 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
