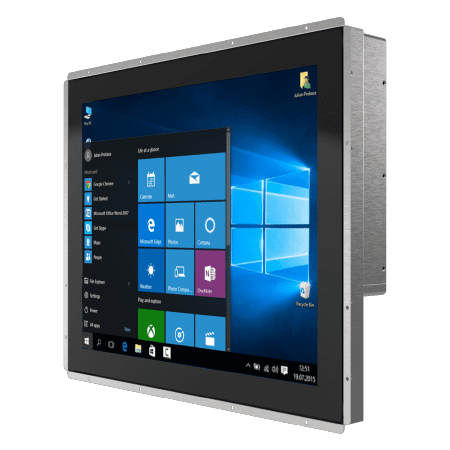

Winmate R19IT7T-POM1 19 Inch Intel Core i5 (Tiger Lake) PO Series HMI Panel PC
For teams working across industrial automation and process control, the Winmate R19IT7T-POM1 19 Inch Intel Core i5 PO Series HMI Panel PC offers a robust solution with field-ready design. The industrial-grade metal housing with IP54 dust protection and fanless cooling supports continuous-duty operation between 0°C and 50°C. Its sealed construction and MIL-STD-810H vibration tolerance suit demanding factory environments.
The panel PC features a 19-inch projected capacitive multi-touch display at 1280×1024 resolution and 250 nits brightness, providing clear visibility and intuitive interface control. Powered by an Intel Core i5-1135G7 processor, it handles industrial applications efficiently. Connectivity includes dual Intel Ethernet controllers, multiple USB 3.2 ports, and serial interfaces for versatile automation integration. TPM 2.0 security and compatibility with Windows 11 IoT Enterprise or Linux Ubuntu 22.04 enhance deployment reliability and lifecycle support.
R19IT7T-POM1 Features
- Intel® Core™ Tiger Lake UP3 i5-1135G7（Without vPro）/ Intel® Core™ Tiger Lake UP3 i5-1145G7E（With vPro）
- 1280 x 1024 Resolution
- Projected capacitive multi-touch screen
- Multi display supports DP / HDMI / LVDS / eDP panel interface
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports
- Front IP65 water and dust proof
- 12V Single Voltage Power Input
Request a Quote
Product Type
Manufacturer
Certifications & Standards
CE, FCC, IP65, MIL-STD-810H
Ruggedness
IP Rating
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
19.0 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x1024
Panel Brightness
250.0 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Active Area
376.32x301.06 mm
Processor
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory
1 x SO-DIMM- DDR4 3200 MHz- 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM- DDR4 3200 MHz- 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional)
Storage
1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
456 x 382 x 74 mm
Weight
4.8 kg
Mounting
Open Frame Panel Mount VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
4 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
1 x Giga LAN RJ45 Connector 1 x 2.5 Giga LAN RJ45 Connector
Video
1 x DP1.4 1 x HDMI 2.0 (Optional)
Audio
Mic in Line out
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) 1 x PCIe 4.0 (x16) slot (x4 signal)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- Din4 pin connector
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 120W"
The Winmate R19IT7T-POM1 19 Inch Intel Core i5 (Tiger Lake) PO Series HMI Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R19IT7T-POM1 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Marine And Offshore, Oil and Gas, Pharmaceutical.
Across these sectors, the R19IT7T-POM1 is typically used in applications such as Environmental Monitoring And Data Logging, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the R19IT7T-POM1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R19IT7T-POM1 is appropriate for your specific application, please contact us.
The Winmate R19IT7T-POM1 19 Inch Intel Core i5 (Tiger Lake) PO Series HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R19IT7T-POM1 19 Inch Intel Core i5 (Tiger Lake) PO Series HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R19IT7T-POM1 19 Inch Intel Core i5 (Tiger Lake) PO Series HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R19IT7T-POM1 19 Inch Intel Core i5 (Tiger Lake) PO Series HMI Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R19IT7T-POM1 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.
Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.
Browse the related products below to identify the most suitable fit for your deployment.
W07IE3S-POT1
- Intel Celeron N6211 processor
- Fanless cooling system for continuous duty
- Projected capacitive multi-touch screen
- Dual Intel Ethernet controllers
R19IBWS-MHA1
- Fanless continuous-duty operation
- Front IP65 ingress protection
- Dual gigabit Ethernet for versatile network integration
- Modular design for easy field servicing

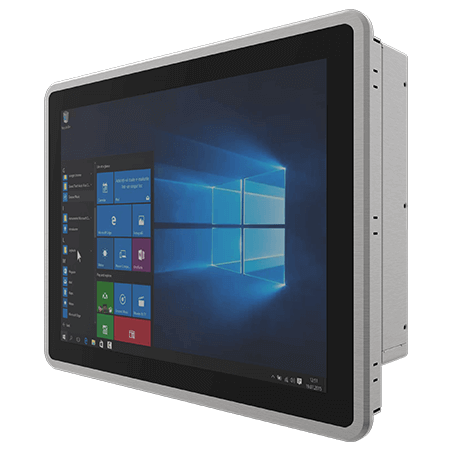

R15IAD3S-PPC3
