Winmate R19L100-SPM169-P1 19 Inch IP69K Stainless P-Series Display
For teams working across hygienic industrial environments, the Winmate R19L100-SPM169-P1 19 Inch IP69K Stainless P-Series Display offers a stainless steel housing designed for durability in food processing and pharmaceutical settings. Its IP69K rating provides protection against high-pressure water jets and dust ingress, supporting regular cleaning protocols without compromising performance.
The display features a 1280×1024 resolution with a projected capacitive multi-touch screen for precise input. It operates reliably in temperatures from 0°C to 45°C and humidity levels between 10% and 90% non-condensing. Fanless cooling reduces contamination risks, while VESA and yoke mount options aid flexible installation. Connectivity includes USB for touch control plus VGA and optional HDMI video inputs, with LED indicators and multiple control buttons for straightforward operation in continuous-duty deployments.
Tested to CE and FCC standards, this field-ready display balances corrosion resistance with practical usability, making it suitable for industrial applications that require a sealed, rugged interface with long-term dependability.
R19L100-SPM169-P1 Features
- 19" Projected capacitive multi-touch screen
- Fanless cooling system
- SUS 316 / AISI 316 stainless steel for food and chemical industries
- Full IP69K waterproof enclosure
- A true flat, easy-to-clean front surface with edge-to-edge design
- Waterproof sealed conduit pipe for cable protection
- Supports VESA mount and Yoke mount stand
- Optical bonding (optional)
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
19 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x1024
Panel Brightness
250 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Display Color
16.7M Colors
Active Area
376.32x301.06 mm
Dimension
468 x 395 x 57 mm
Mounting
VESA Mount Yoke Mount
Enclosure
Stainless Housing
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 45°C
Storage Temperature
-20°C to 60°C
IP rating
IP69K
Certification
CE- FCC
USB Port
1x USB type-A for touch screen control
Video
1x VGA 1x HDMI (Optional)
Indicator
1 x LED Indicator for power 1 x LED Indicator for status
Button
1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button
Accessory
1 x Waterproof Conduit 1.5m 1 x Waterproof Conduit 0.3m 2 x Elbow for connect the conduit 1 x AC to DC power adapter with power cord 1 x External USB cable for touchscreen control 1 x External HDMI cable 1 x D-sub15(male) to RJ45 adapter 1 x D-sub15(female) to RJ45 adapter 1 x External RJ45 male to male cable Manual VESA screws
Optional Accessory
1 x Open wire cable for phoenix connector (Optional) Yoke mount stand kit (Optional)
Power Rating
12V DC
The Winmate R19L100-SPM169-P1 19 Inch IP69K Stainless P-Series Display is designed and engineered for use in demanding environments where reliability, durability are essential. The R19L100-SPM169-P1 supports a wide range of industries and operational applications.
Common deployment industries include: Food And Beverage Processing, Industrial Manufacturing, Pharmaceutical.
Across these sectors, the R19L100-SPM169-P1 is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, Quality Control And Inspection.
These examples demonstrate the versatility of the R19L100-SPM169-P1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R19L100-SPM169-P1 is appropriate for your specific application, please contact us.
The Winmate R19L100-SPM169-P1 19 Inch IP69K Stainless P-Series Display comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R19L100-SPM169-P1 19 Inch IP69K Stainless P-Series Display, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R19L100-SPM169-P1 19 Inch IP69K Stainless P-Series Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R19L100-SPM169-P1 19 Inch IP69K Stainless P-Series Display, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R19L100-SPM169-P1 or need a custom Rugged Display solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.
Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.
Browse the related products below to identify the most suitable fit for your deployment.

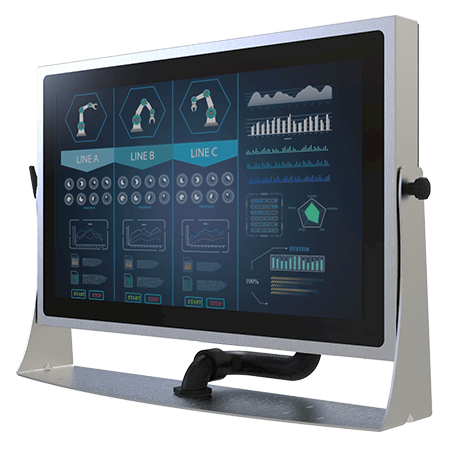

W24L100-SPA2
