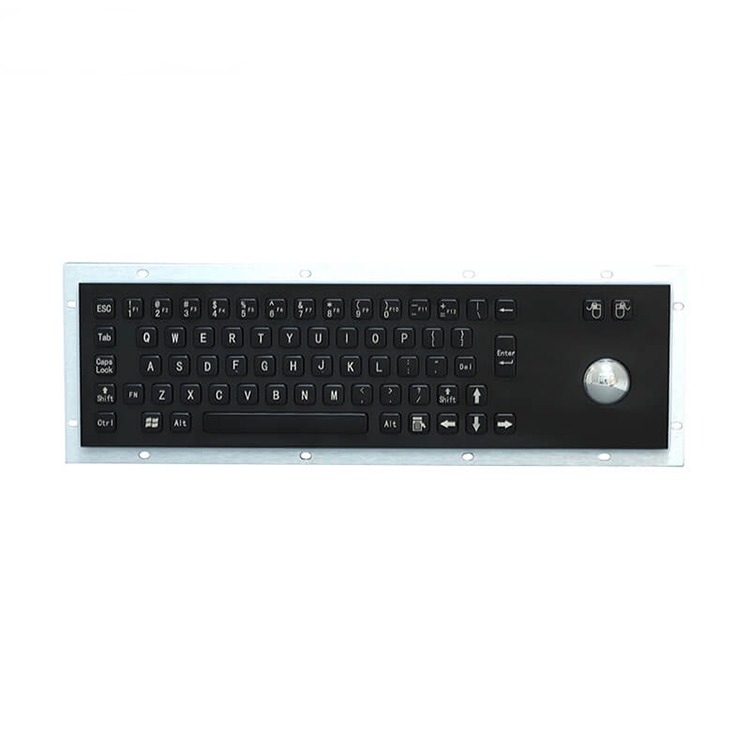

RUGGED RKB-D-8602B Black Stainless Steel Keyboard with Trackball

Designed for demanding industrial and field environments, the RUGGED RKB-D-8602B Black Stainless Steel Keyboard with Trackball offers reliable input with durable construction. Its robust stainless steel front panel and aluminium alloy base ensure protection against mechanical vibrations and harsh conditions, supported by IP65 dust and moisture resistance. The keyboard includes a built-in impact-resistant trackball to enhance control in continuous-duty settings. Compatible with USB and PS2 interfaces, it supports Windows, Linux, and Mac systems, allowing flexible integration. Certified to CE, FCC, and RoHS standards, it operates within a temperature range from -40 6C to +70 6C and withstands vibration tested to power spectral density standards.

Rated for more than 10 million key actuations and a lifespan over five years, the RKB-D-8602B is engineered for long-term use with low maintenance and quick turnaround. Its 12 function keys provide operational convenience, while the panel-mount design fits standard 392 x 110 mm front panel dimensions, ideal for rack installations and sealed industrial applications.

RKB-D-8602B Features

  • Industrial Grade Stainless Steel
  • IP65 Rated
  • Professional Black Finish
  • Rear Panel Mount
  • Suitable for Industrial & Public Environments
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Operating System

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

392 x 110mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Ball Material

Stainless Steel

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Black

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

392*110mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

Mounting Type

rack mount

MTBF

>50000H

MTTR

<30min

No. Of Keys

65+2

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

Mounting Type

rack mount

MTBF

>50000H

MTTR

<30min

No. Of Keys

65+2

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8602B Black Stainless Steel Keyboard with Trackball is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D-8602B supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Pharmaceutical.

Across these sectors, the RKB-D-8602B is typically used in applications such as Field Data Capture And Reporting, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Utilities Inspection And Meter Reading.

These examples demonstrate the versatility of the RKB-D-8602B across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-D-8602B is appropriate for your specific application, please contact us.

The RUGGED RKB-D-8602B Black Stainless Steel Keyboard with Trackball comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8602B Black Stainless Steel Keyboard with Trackball, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8602B Black Stainless Steel Keyboard with Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8602B Black Stainless Steel Keyboard with Trackball, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8602B or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
