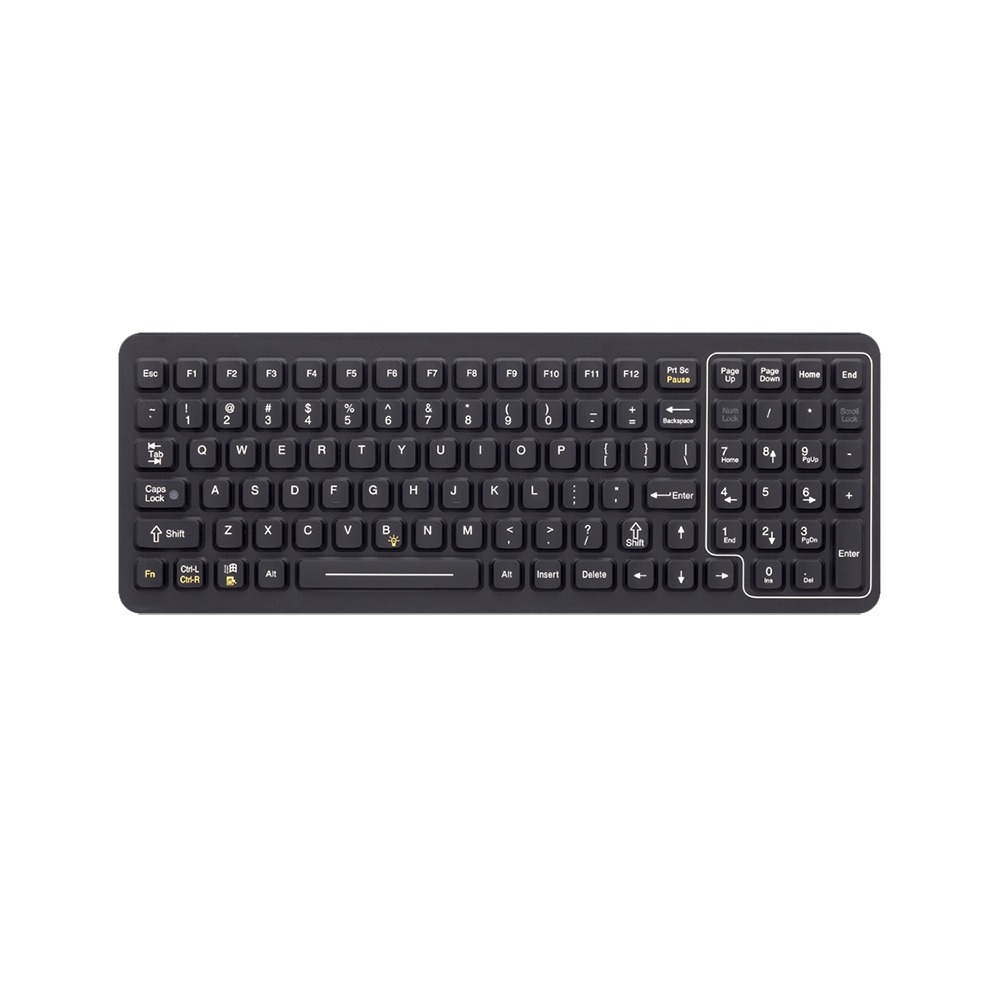

SLK-101-8L-OEM iKey Keyboard
iKey’s SlimKey™ SLK-101-8L-OEM provides full-sized versatility in a rugged, compact design. It features eight levels of green LED backlighting, and is also available in a night vision (NVIS) compatible configuration.
SLK-101-8L-OEM Features
- Green Backlit Keys with Eight Levels of Backlighting
- Option NVIS Compliant -Green B backlighting
- Integrated 10-Key Numeric Pad
- OEM Kit: PCB, rubber overlay, and cable
- High EMI Standards
iKey’s SlimKey™ SLK-101-8L-OEM provides full-sized versatility in a rugged, compact design. It features eight levels of green LED backlighting, and is also available in a night vision (NVIS) compatible configuration. Engineered for NEMA 4X protection from dust, water and corrosive liquids, the SLK-101-8L is ideal for use in military applications. The large numeric pad on the SLK-101-8L allows for easy data entry, while the robust polycarbonate case stands up in the roughest of conditions. Ideal for harsh EMI environments, this rugged keyboard is designed to meet MIL-STD-461 specifications.Each kit is comprised of an industrial silicone keypad, switch matrix board, keyboard controller and cables.
| Manufacturer or Brand | iKey |
|---|---|
| Mounting Format | OEM |
| IP Rating | IP67 |
| Interface | PS2, USB |
| Housing Colour | Black |
| Function Keys | 12 Keys |
| Backlight | Green, NVIS Green |
| Operating Temperature | OPERATING: -40C to +70C (-40F to +158F) |
| Storage Temperature | STORAGE: -40C to +90C (-40F to +194F) |
| Temperature Rating | STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F) |
| Humidity | 100% Humidity Resistant |
| Shock | 3x11 ms pulses of 50g on each of 3 axes |
| Dimensions | 14.40" x 5.05" x 0.25" (w-h-d) 365.7mm x 128mm x 6.4mm |
| Warranty | 1 Year Limited Warranty |
| Lifetime | 10 million cycles |
| Backlight | Green Backlit Keys with Eight Levels of Backlighting - Optional NVIS Compliant -Green B backlighting |
| Compatibility | All Windows and MAC OS |
| Dimensions | 14.40" x 5.05" x 0.25" (w-h-d) 365.7mm x 128mm x 6.4mm |
| EMI | Ideal for harsh EMI environments |
| Function Keys | 12 Function Keys |
| Humidity | 100% Humidity Resistant |
| Key Feedback | Tactile with mechanical snap |
| Key Material | Industrial silicone rubber |
| Key Switch | Carbon Contact |
| LED Indicators | Caps Lock, Num Lock |
| Lifespan | 10 million cycles + |
| Mounting Type | OEM |
| No. Of Keys | 101 |
| Operating Force | 7.05 oz +/- 1.06 oz (200g +/- 30g) |
| Power | USB: 210mA@5V (from CPU port) |
| Product Weight | 0.45 kg +/- 0.05 kg |
| Shock | 3x11 ms pulses of 50g on each of 3 axes |
| Supply Current | 210mA |
| Supply Voltage | 5 Volts |
| Switch Force | 7.05 oz +/- 1.06 oz (200g +/- 30g) |
| Switch / Key Travel | 0.055 in. (1.4mm) |
| Temperature Range | STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F) |
| Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
- Green Backlit Keys with Eight Levels of Backlighting
- Option NVIS Compliant -Green B backlighting
- Integrated 10-Key Numeric Pad
- OEM Kit: PCB, rubber overlay, and cable
- High EMI Standards
- Designed to meet MIL-STD-461E Specifications
- Industrial Silicone Rubber Keypad
The iKey SLK-101-8L-OEM
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey SLK-101-8L-OEM Keyboard are listed below:-
These are just some of the applications for the iKey SLK-101-8L-OEM Keyboard The potential applications extend further than those shown above. For further information about the iKey SLK-101-8L-OEM Keyboard
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Computer Consoles
- Helicopter Consoles
- Marine Consoles
- Military Vehicles
- Miltary Consoles
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the iKey SLK-101-8L-OEM Keyboard to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the iKey SLK-101-8L-OEM Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Keyboard Layout
- Keyboard Language
- Interface
- Backlight Colour
- Custom Logo
- Epoxy Coating
- Conformal Coating
- PU Coating
- Matt Silicone Coating
The iKey SLK-101-8L-OEM Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, iKey SLK-101-8L-OEM Keyboard, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
