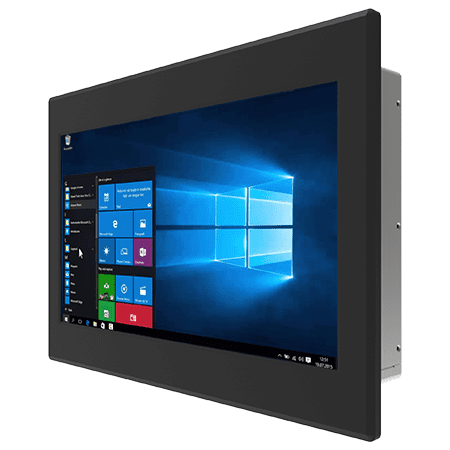

Winmate W15IAD3S-IPA2 15.6 Inch Front IP65 Panel PC
The Winmate W15IAD3S-IPA2 is a 15.6-inch panel PC built around a reinforced metal housing with a fanless cooling system, designed for industrial environments requiring a sealed front panel. Its front IP65 rating protects against dust and water jets, making it suitable for manufacturing, logistics, and washdown areas. The resistive touch screen supports gloved operation for precise user input in rugged conditions. Featuring an Intel Core i5-1235U processor and up to 32GB DDR5 memory, the PC handles demanding tasks while maintaining continuous-duty reliability.
Dual Intel Ethernet controllers provide robust wired networking options, and TPM 2.0 ensures hardware-based security for sensitive applications. The device operates between 0°C and 50°C with 10% to 90% relative humidity tolerance, accommodating a variety of industrial temperature ranges. Storage includes options for NVMe SSD and SATA drives, supporting flexible configurations. VESA and panel mount options enhance installation versatility in space-critical deployments. Overall, the Winmate W15IAD3S-IPA2 delivers reinforced, industrial-grade computing with sealed durability and reliable connectivity for field-ready applications.
W15IAD3S-IPA2 Features
- 15.6” 1366 x 768 Resolution Front IP65 PC
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- Front IP65
- 12 V DC Power input
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
15.6 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1366x768
Panel Brightness
400.0 nits
Contrast Ratio
500:1
View Angles
85-85-80-80
Active Area
344.232x195.536 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
400 x 280 x 74.5 mm
Cut out
368.3 x 232 mm
Weight
3.9 kg
Mounting
Panel mount VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
Power Rating
12V DC
Adapter
12V 120W"
The Winmate W15IAD3S-IPA2 15.6 Inch Front IP65 Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W15IAD3S-IPA2 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Retail, Warehousing.
Across these sectors, the W15IAD3S-IPA2 is typically used in applications such as Construction Site Supervision And Reporting, Forklift And Materials-Handling Terminals, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Warehouse Picking And Put-Away, Yard, Dock, And Gatehouse Management.
These examples demonstrate the versatility of the W15IAD3S-IPA2 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W15IAD3S-IPA2 is appropriate for your specific application, please contact us.
The Winmate W15IAD3S-IPA2 15.6 Inch Front IP65 Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W15IAD3S-IPA2 15.6 Inch Front IP65 Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W15IAD3S-IPA2 15.6 Inch Front IP65 Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W15IAD3S-IPA2 15.6 Inch Front IP65 Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W15IAD3S-IPA2 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
