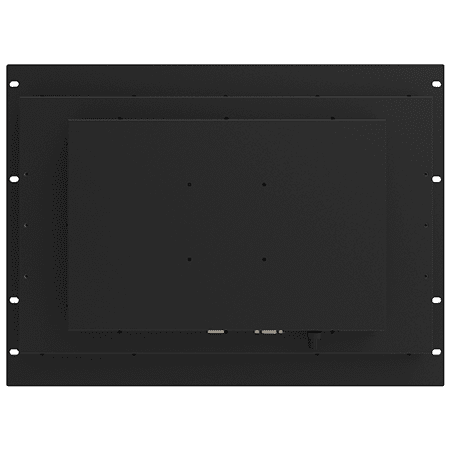

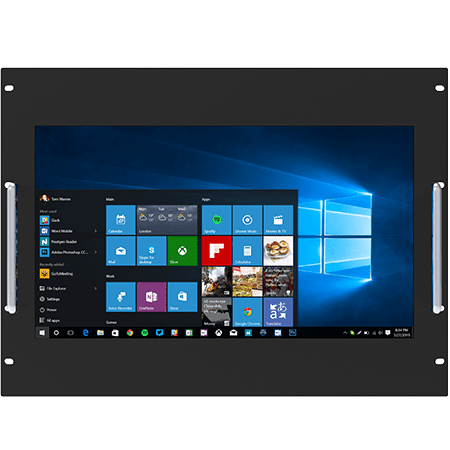

Winmate W18IAD3S-RKA1 18.5 Inch Rack Mount Panel PC
The Winmate W18IAD3S-RKA1 18.5 Inch Rack Mount Panel PC is designed for demanding industrial control rooms and server environments, combining durability and performance. Its metal housing with an IP65-rated front panel provides a dust-sealed and water-resistant build suitable for harsh field conditions. The device features a fanless design and vibration-tolerant construction, supporting continuous operation in industrial automation and rack-mounted setups.
Equipped with an Intel Core i5-1235U processor, the panel PC supports multiple memory and storage options, enabling intensive application use. The 18.5-inch full HD display offers wide viewing angles and 350 nits brightness, meeting the needs for clear monitoring in variable lighting. Dual Intel Ethernet controllers provide reliable network connectivity, while TPM 2.0 ensures hardware security. With Windows 11 IoT Enterprise, Pro, or Linux Ubuntu 22.04 support, the system adapts flexibly to different industrial OS requirements.
Additional practical features include multiple USB 3.2 ports, serial communication interfaces, HDMI output, and expansion slots for SSD and Wi-Fi modules. Operating temperature ranges from 0°C to 50°C and CE/FCC certification further confirm its suitability for continuous-duty industrial environments.
W18IAD3S-RKA1 Features
- 18.5” 1920 x 1080 Resolution Rack Mount Panel PC
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
18.5 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1920x1080
Panel Brightness
350.0 nits
Contrast Ratio
1000:1
View Angles
89-89-89-89
Active Area
408.96x230.04 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
483 x 355 x 73 mm
Weight
5.9 kg
Mounting
Rack mount (8U)
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 120W"
The Winmate W18IAD3S-RKA1 18.5 Inch Rack Mount Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W18IAD3S-RKA1 supports a wide range of industries and operational applications.
Common deployment industries include: Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Oil and Gas, Public Sector, Rail And Transport, Security And Surveillance, Warehousing.
Across these sectors, the W18IAD3S-RKA1 is typically used in applications such as Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals.
These examples demonstrate the versatility of the W18IAD3S-RKA1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W18IAD3S-RKA1 is appropriate for your specific application, please contact us.
The Winmate W18IAD3S-RKA1 18.5 Inch Rack Mount Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W18IAD3S-RKA1 18.5 Inch Rack Mount Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W18IAD3S-RKA1 18.5 Inch Rack Mount Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W18IAD3S-RKA1 18.5 Inch Rack Mount Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W18IAD3S-RKA1 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
