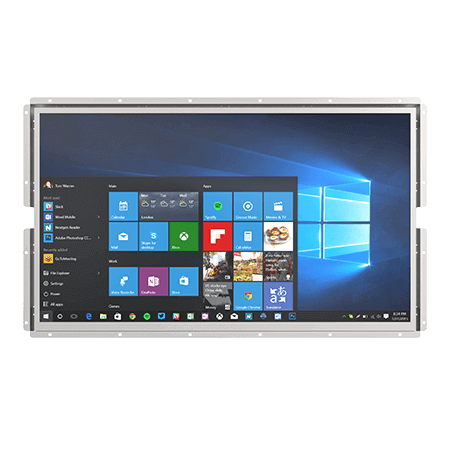

Winmate W24IAD7T-OFA2 23.8 Inch Open Frame Panel PC
Designed for embedded and industrial control systems, the Winmate W24IAD7T-OFA2 23.8 Inch Open Frame Panel PC combines robust Intel Alder Lake processors with a metal housing to withstand demanding environments. Its open frame design supports versatile mounting options suited to industrial applications, while a fan-cooled system and dust sealing ensure reliable continuous-duty operation across temperatures from 0°C to 50°C. The Full HD display delivers clear visuals with 1920×1080 resolution and a 250-nit brightness suitable for field use.
Networking is supported by dual 2.5 Gigabit Ethernet controllers, and expansion ports facilitate integration with complex architectures. TPM 2.0 security support and CE/FCC certification align the unit with industry compliance standards. Optional resistive touch and multiple USB 3.2 ports add operational flexibility. Overall, this panel PC fits well in industrial settings requiring a rugged, sealed, and reinforced computing solution with flexible I/O and display options.
W24IAD7T-OFA2 Features
- 23.8” 1920 x 1080 Resolution Open Frame PC
- 12th Gen Intel® Core™ Alder Lake S i9 / i7/ i5 / i3 processor
- 2 x SODIMM, DDR5 4800MHz, support up to 64GB (Max. 32GB for each slot)
- Integrated Dual 2.5 Gigabit Ethernet
- Multi display supports DP 1.4a / HDMI 2.0b (Optional)
- Multiple I/Os, 4 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
23.8 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1920x1080
Panel Brightness
250.0 nits
Contrast Ratio
3000:1
View Angles
89-89-89-89
Active Area
527.04x296.46 mm
Processor
Intel® Core™ i5-12500TE(up to 4.3GHz) Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional) Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional) Intel® Core™ i3-12100TE(up to 4.00GHz) (Optional)
Chipset
Intel® R680E
Memory
2 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional) 64GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 2 x SATA III for 2.5" SSD/HDD (Only R680E/Q670E version support)(RAID support) (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
576 x 344 x 78 mm
Weight
6.3 kg
Mounting
Open frame Panel mount (Optional) VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fan Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
4 x USB 3.2 Gen2x1 (10Gbps- TypeA) (R680E/Q670E version) 4 x USB 3.2 Gen1x1 (5Gbps- TypeA) (H610E version)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x DP1.4a DP++ - Max resolution up to 4096x2160@60Hz 1 x HDMI 2.0b - Max resolution up to 4096x2160@60Hz (Optional)
Audio
Mic in Line out
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module)
Power Input
1 x 12V DC- Din4 pin connector
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 220W"
The Winmate W24IAD7T-OFA2 23.8 Inch Open Frame Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W24IAD7T-OFA2 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Public Sector, Rail And Transport, Security And Surveillance.
Across these sectors, the W24IAD7T-OFA2 is typically used in applications such as Construction Site Supervision And Reporting, Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Warehouse Picking And Put-Away.
These examples demonstrate the versatility of the W24IAD7T-OFA2 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W24IAD7T-OFA2 is appropriate for your specific application, please contact us.
The Winmate W24IAD7T-OFA2 23.8 Inch Open Frame Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W24IAD7T-OFA2 23.8 Inch Open Frame Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W24IAD7T-OFA2 23.8 Inch Open Frame Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W24IAD7T-OFA2 23.8 Inch Open Frame Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W24IAD7T-OFA2 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
