iKey 5K-OEM-FSR Rugged Keyboard

  • MIL STD 810G
  • IP65 RATED
  • NEMA 4X
  • FORCE SENSING RESISTOR
  • WINDOWS OS
  • IOS
  • USB

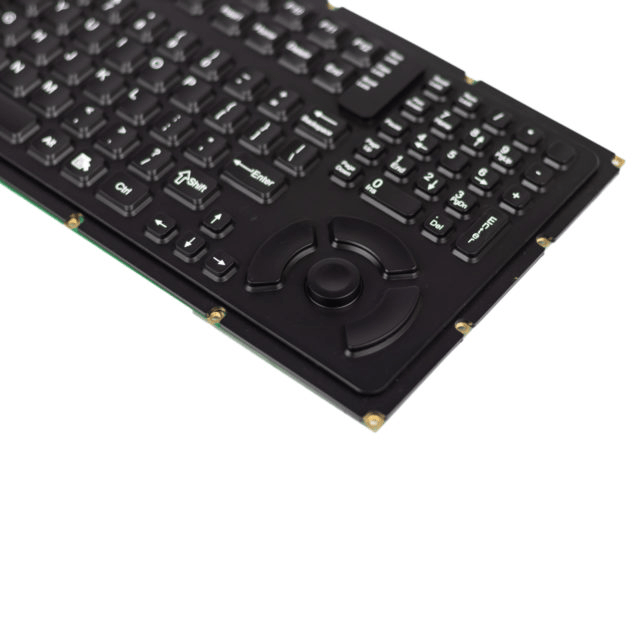

Designed for industrial and military environments, the iKey 5K-OEM-FSR Rugged Keyboard provides reliable data input amid harsh conditions. It features an industrial-grade silicone rubber keypad rated for over 10 million keystrokes, ensuring long-term durability for continuous use. The integrated Force Sensing Resistor pointing device offers precise cursor control, essential for tasks requiring accuracy. Compatible with both PS/2 and USB interfaces, it supports various systems in field-ready deployments. The keyboard meets NEMA 4X ingress protection and MIL-STD-810G standards for shock resistance, and operates comfortably within temperatures from -20°C to +60°C.

It also withstands 100% humidity when installed correctly, making it suitable for manufacturing, defence, and public safety sectors. Its sturdy design helps maintain reliable input performance despite exposure to vibration and physical shocks, reinforcing its role as a dependable industrial-grade input device.

5K-OEM-FSR Features

  • Industrial Silicone Rubber Keypad
  • Integrated Force Sensing Resistor
  • Meets NEMA 4X (IP65) Specifications
  • 10-Key Numeric Pad
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Interface

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

NEMA 4X, CE UL60950, FCC Part 15, Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.75" x 6.43" x 0.35" (w-h-d) 374.7mm x 163.3mm x 8.9mm

Humidity

100% Humidity Resistant (when properly installed)

Cable

Single-Cable USB or PS2

Compatibility

All Windows and Macintosh Operating Systems

Connectivity

No filter

Dimensions

15.00" x 6.50" x 0.42" (w-h-d) 381.0mm x 165.1mm x 10.7mm

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

20 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. ACTUATION FORCE: 180g FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

Mounting Type

OEM

No. Of Keys

116

Pointing Device

Force Sensing Resistor

Power

PS/2: KEYBOARD: 50mA@5V (from Keyboard port) POINTER: 35mA@5V (from Mouse port) USB: 85mA@5V (from CPU port)

Product Weight

1.50 lbs +/-0.10 lbs (0.68 kg +/-0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

180g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)

The iKey 5K-OEM-FSR Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The 5K-OEM-FSR supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Emergency Services, Industrial Manufacturing, Public Sector, Security And Surveillance.

Across these sectors, the 5K-OEM-FSR is typically used in applications such as Emergency Dispatch And Incident Management, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Secure Communications And Command-And-Control.

These examples demonstrate the versatility of the 5K-OEM-FSR across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the 5K-OEM-FSR is appropriate for your specific application, please contact us.

The iKey 5K-OEM-FSR Rugged Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey 5K-OEM-FSR Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey 5K-OEM-FSR Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey 5K-OEM-FSR Rugged Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey 5K-OEM-FSR or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
