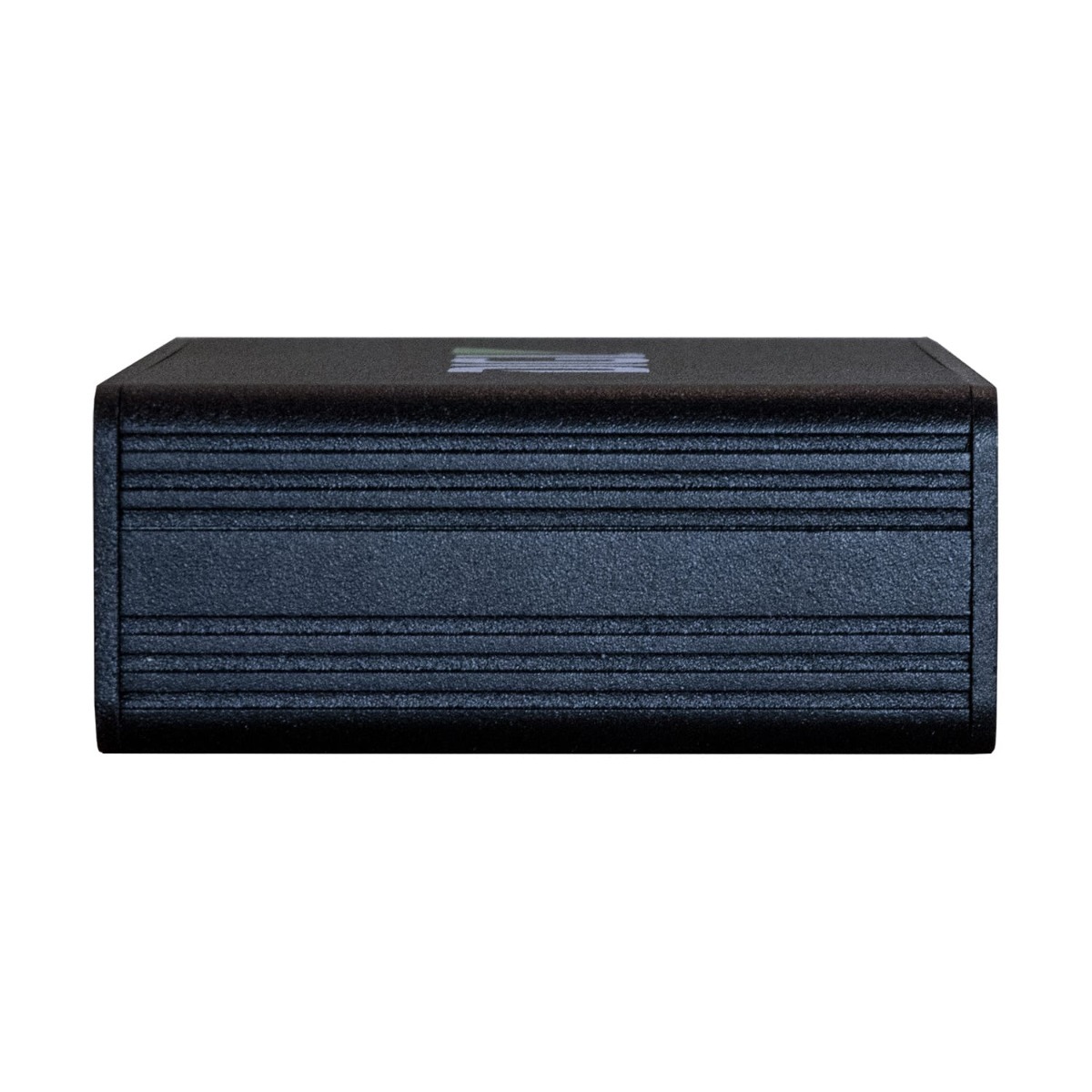

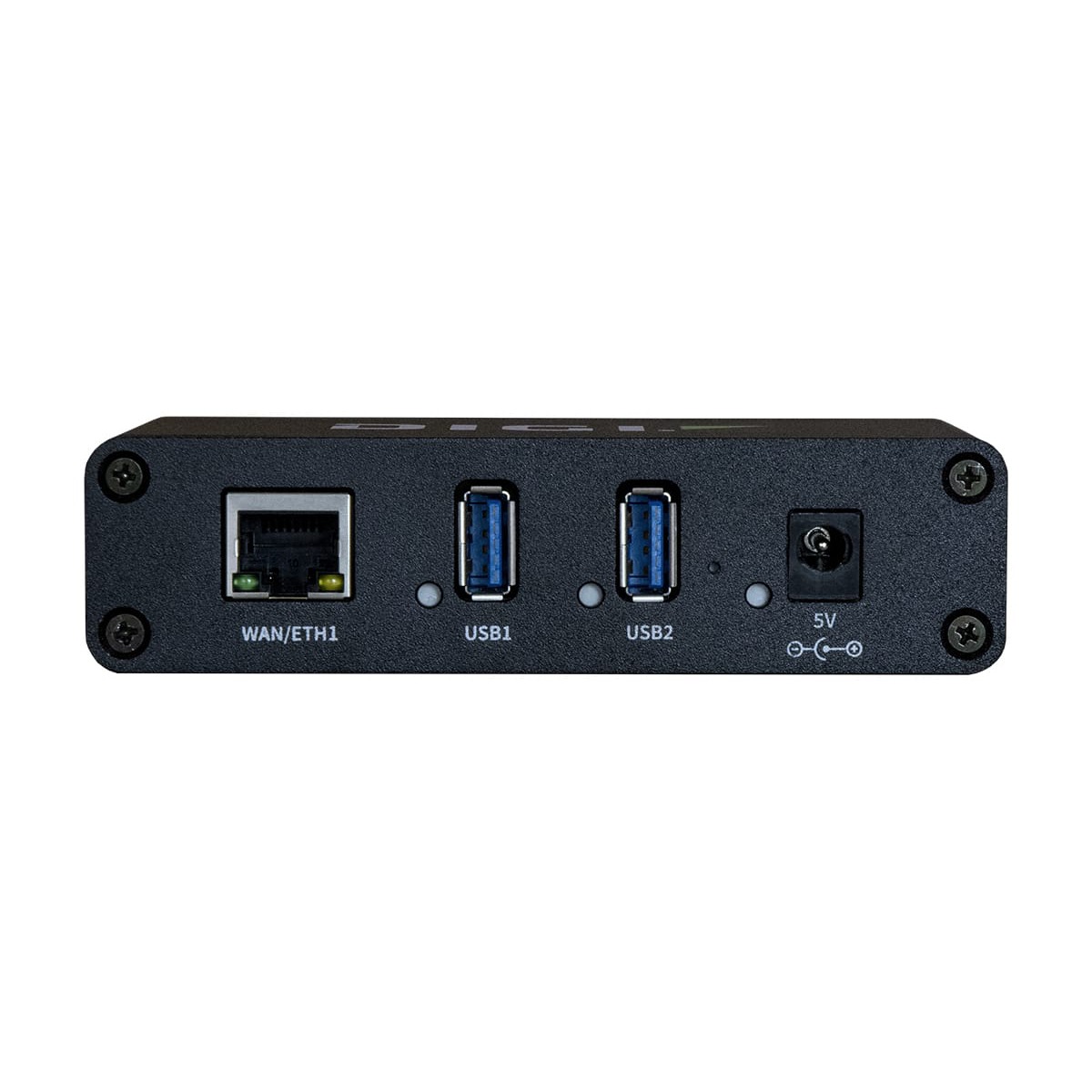

Digi AW02-G300 AnywhereUSB 2 PLUS

Digi AW02-G300 AnywhereUSB 2 PLUS is an industrial USB hub built around a metal housing, supporting multiport USB 3.1 connectivity extended over Ethernet. Designed for industrial and enterprise deployments, it enables flexible remote access to USB peripherals while keeping the host PC in a secure, controlled environment. This metal-encased device operates continuously within 0 to 40 degrees Celsius and handles humidity up to 95% non-condensing, making it field-ready for typical industrial conditions. It features two USB 3.1 Gen 1 Type A ports delivering 1.8 A each for reliable peripheral power and data transfer. The Ethernet interface supports 10/100/1000 Mbps for high availability and stable connectivity. The AnywhereUSB 2 PLUS complies with international safety and EMI standards including UL 60950, EN62368, FCC Part 15 Class B, and EN55024, ensuring dependable operation in regulated environments.

Management is facilitated via Digi Remote Manager and WebUI, providing remote configuration and monitoring capabilities. Its reinforced design includes a sealed construction and vibration tolerance, underscoring suitability for continuous-duty deployments in demanding settings.

AW02-G300 Features

  • Connect USB peripheral devices to a PC from remote or virtual hosts
  • Ideal for connecting USB devices over the network in virtualized environments
  • Supports multi-host connectivity for each USB port or group independently
  • Supports Digi Remote Manager cloud-based management platform to deploy, monitor and manage devices

Request a Quote

Product Type

Manufacturer

Certifications & Standards

Ruggedness

Country Of Manufacture

United States

Case Material

Metal

Certifications

UL 60950, CSA 22.2 No. 60950, EN60950, EN62368 - CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032

Console Connectors

(1) DB09M; RS-232 DTE

Custom Options Products

Cable Length,Laser Etching,Custom Printing,Power Supply,Mounting Options

Dimensions

(L X W X H) 118 mm x 74 mm x 30 mm (4.6 in x 2.9 in x 1.2 in)

Ethernet

(1) RJ-45; 10/100/1000 Mbps

Height

30 mm

Housing Colour

Black

Humidity

5% to 95% (non-condensing)

Length

118 mm

Local Management

WebUI (HTTP/HTTPS); CLI (SSH)

Memory

512 MB RAM, 4 GB flash (eMMC)

Operating Temperature

0 degrees celsius to 40 degrees celsius

Ordering Info

AnywhereUSB 2 Plus; dual USB 3.1 Gen 1 ports, single 10M/100M/1G Ethernet, 5 VDC (power supply sold separately)*

Protocols

Supports multi-host connectivity for each USB port or group independently

Remote Management

Digi Remote Manager (cloud based)

Status LED

(2) Ethernet, 2 (x1) USB, power

Storage Temperature

0 to 40C

Usb Connectors

(2) USB 3.1 Gen 1 Type A - 1.8 A per port (simultaneous)

Width

74 mm

The Digi AW02-G300 AnywhereUSB 2 PLUS is designed and engineered for use in demanding environments where reliability, durability are essential. The AW02-G300 supports a wide range of industries and operational applications.

Common deployment industries include: Broadcast and Media, Education, Energy and Utilities, Healthcare And Medical, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Security And Surveillance.

Across these sectors, the AW02-G300 is typically used in applications such as Asset Tracking And Management, Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Process Control And Shop-Floor Monitoring, Proof Of Delivery And Last-Mile Logistics, Secure Communications And Command-And-Control, Warehouse Picking And Put-Away.

These examples demonstrate the versatility of the AW02-G300 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the AW02-G300 is appropriate for your specific application, please contact us.

The Digi AW02-G300 AnywhereUSB 2 PLUS comes with a 5 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Digi AW02-G300 AnywhereUSB 2 PLUS, must be presented to RUGGED in the United Kingdom.

For more information about the Digi AW02-G300 AnywhereUSB 2 PLUS or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • Robust metal housing for impact resistance
    • Dual 10G Ethernet and SFP+ for network reliability
    • Supports 24 USB 3.1 Gen 1 remote connections
    • Sealed ventilation for temperature-tolerant operation
    DIGI-AW24-G300-ANYWHEREUSB-24-PLUS
    • Metal housing for durability
    • Dual USB 3.1 Gen 1 Type A ports delivering 1.8 A
    • Supports 10/100/1000 Mbps Ethernet
    • Sealed design for humidity up to 95% non-condensing
    DIGI-AW02-G300-ANYWHEREUSB-2-PLUS
    • Eight USB 3.1 Gen 1 ports for extended device connectivity
    • High-speed Ethernet and SFP+ for robust network access
    • Sealed metal housing for dust protection and durability
    • Multi-host support enables flexible USB device sharing
    DIGI-AW08-G300-ANYWHEREUSB-8-PLUS
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    • If you are unsure which product is best suited to your requirements, you can contact us directly for expert guidance. Share details such as your use case, environment, compatibility needs, and budget, and we will help you select the most appropriate solution.

    • RUGGED offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team

    Ensuring secure USB Over IP functionality is a priority, especially when dealing with critical data and remote access. While the technology itself facilitates the extension of USB communication over a network, its security largely depends on the implementation and the features integrated into the specific solution.

    Rugged Limited’s USB Over IP solutions incorporate security aspects to safeguard data transmission and access. These measures are designed to mitigate risks commonly associated with network-based communications. For instance, encryption protocols can protect data as it travels across the network, preventing unauthorised interception and ensuring data integrity. Authentication mechanisms are also crucial, verifying the identity of devices and users attempting to access USB resources over the IP network, thereby preventing unauthorised connections.

    Furthermore, solutions that adhere to industry best practices for network security contribute to a more robust and secure USB Over IP environment. When exploring options for extending USB functionality, it’s important to consider providers who prioritise security in their technological design, ensuring that your remote USB connections are as protected as possible. For more information on physical USB connectivity solutions, please visit our page on USB Connectivity.

    USB-Over-IP technology enables the seamless extension of USB connections across a network, including Ethernet. This means that a USB device plugged into one computer on an Ethernet network can be accessed and used by another computer on the same network, completely bypassing the need for physical proximity.

    Rugged Limited offers solutions that leverage this capability, allowing users to connect to and manage USB devices remotely over standard Ethernet infrastructure. This is particularly beneficial in various industrial and commercial settings where devices might be located far from the host computer. The USB-Over-IP functionality provided by Rugged Limited ensures that these distributed USB devices maintain their full functionality and can be integrated into system architectures efficiently. For more information on how USB devices can be connected and extended, visit the USB Connectivity section on our website.

    Yes, USB-Over-IP technology offers a powerful solution for reducing cabling in various environments. By converting traditional USB signals into network packets, devices can be accessed and controlled remotely over a standard local area network (LAN) rather than requiring direct, physical USB connections. This eliminates the need for long, cumbersome USB cables, especially when peripherals are located far from the host computer or server.

    This approach is particularly beneficial in industrial or commercial settings where equipment may be spread across a large area. Instead of running dedicated USB cabling to each device, you can leverage existing network infrastructure for USB connectivity. The core benefit of USB-Over-IP is the ability to centralise control and access to USB devices from anywhere on the network, simplifying deployment and management.

    Rugged Limited provides solutions that enable this efficient use of USB-Over-IP, helping businesses to streamline their setups and reduce cable clutter, ultimately leading to a tidier, more scalable, and cost-effective digital infrastructure.

    USB-Over-IP technology is designed to centralise and streamline the management of USB devices over a network, making it possible to connect multiple devices. Instead of plugging each USB device directly into a computer, this technology enables connectivity across a network, which can include multiple USB devices. This means that a single USB-Over-IP server or hub can manage various USB peripherals simultaneously, making it a versatile solution for different operational requirements.

    For organisations, especially those utilising Rugged Limited’s solutions, this capability enhances flexibility and efficiency. Whether it’s for remote access, shared resources, or industrial applications, the ability of USB-Over-IP to support multiple devices is a key benefit, ensuring that diverse USB peripherals can be accessed and controlled seamlessly from different locations via the network.

    USB-Over-IP technology allows for the redirection of USB data traffic across a network, making remote USB devices appear as if they are locally connected. This means that a single USB device, physically connected to one computer, can be virtually accessed and controlled from other computers on the same network. This approach simplifies device management and offers increased flexibility, especially in industrial or challenging environments where direct physical access to devices might be impractical or introduce vulnerabilities.

    For example, a dedicated server or embedded computer can host various USB peripherals which are then made available to multiple client systems simultaneously, without the need for each client to have its own physical USB port or direct connection to the device. This is particularly beneficial for USB connectivity in complex systems, allowing for centralised control and accessibility of critical devices. The implementation of USB-Over-IP enhances operational efficiency and security by reducing the need for multiple physical connections and enabling remote access to essential instrumentation.

    Rugged Limited’s USB-Over-IP solutions are designed with security as a priority. While the fundamental concept involves extending USB connectivity over a network, robust security protocols are integrated to protect data integrity and prevent unauthorised access.

    ‘Encryption’ is a key security feature, safeguarding data as it travels across the network. This ensures that sensitive information being transmitted via USB-Over-IP remains confidential and protected from interception. Additionally, our solutions often incorporate ‘authentication’ mechanisms, requiring proper credentials for users or devices to establish a connection. This prevents unauthorised individuals from gaining access to connected USB devices remotely.

    Furthermore, careful network configuration, including the use of firewalls and Virtual Private Networks (VPNs), can significantly enhance the security posture of any USB connectivity solution. By combining these measures, Rugged Limited ensures that our USB-Over-IP offerings provide a secure and efficient way to manage USB devices remotely across various industrial and commercial environments.

    Yes, USB-Over-IP technology generally requires specific software to operate. This software creates a virtual USB port that allows devices connected to one computer to be accessed and controlled by another computer over a network, as if they were directly connected. It works by encapsulating USB data into network packets and transmitting them to the remote client or server.

    Rugged Limited provides solutions that utilise USB-Over-IP to extend the functionality of USB devices across various environments. This is particularly useful in industrial or remote settings where physical access to USB ports is limited or impractical. The necessary software facilitates this communication, ensuring reliable data transfer and device control. For more information on USB solutions, visit our USB connectivity section.

    USB-Over-IP effectively bridges the gap between physical USB devices and networked systems, requiring the enabling software to manage the virtualisation and redirection processes seamlessly.

    Yes, USB over IP solutions are designed to support multiple devices, providing a versatile way to extend USB connectivity over a network. This capability is essential for businesses and users who need to access several USB devices remotely or across different locations without direct physical connection.

    For example, Rugged Limited offers solutions that allow for efficient Multi Device Usb Over Ip communication, enabling a primary host device to interact with numerous USB peripherals such as scanners, printers, or storage devices via a standard Ethernet network. This not only streamlines operations but also enhances security and centralisation of device management. To explore a range of connectivity options, including USB over IP, visit our USB connectivity solutions.

    The underlying technology facilitates this Multi Device Usb Over Ip support by encapsulating USB data into IP packets, allowing it to traverse a network just like any other network traffic, thereby overcoming distance limitations and enabling shared access to devices among multiple users or systems.
