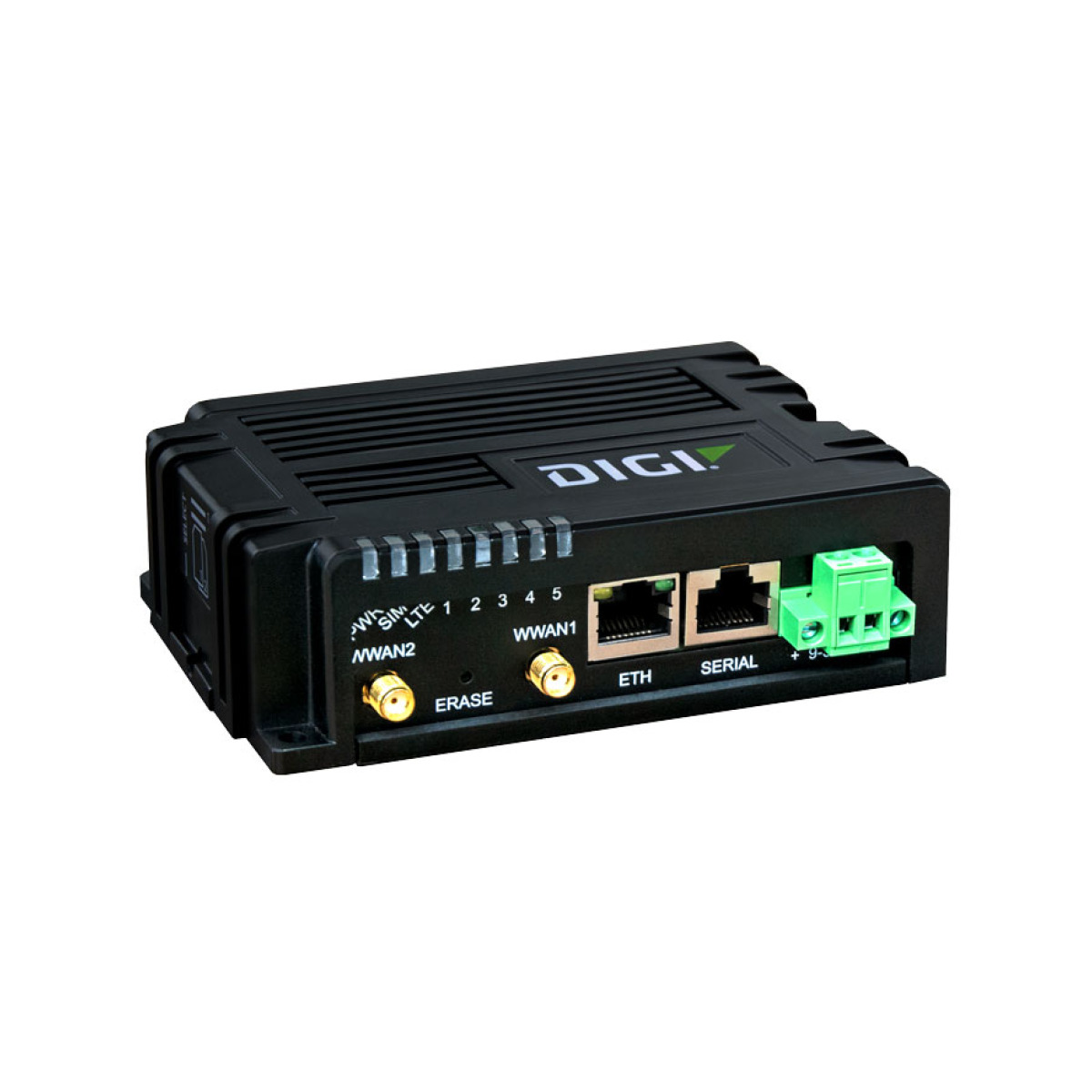

Digi IX10-00N4 Cellular Router

  • LTE
  • DUAL SIM
  • ETHERNET
  • RS232
  • RS232
  • DUST RESISTANCE
  • WIDE TEMPERATURE
  • WIDE VDC

The Digi IX10-00N4 Cellular Router brings full-featured LTE Cat 4 connectivity to North American deployments, with carrier bands tuned for B2, B4, B5, B12, B13, B14, B66 and B71 alongside 3G fallback on B2, B4 and B5. Dual mini-SIM slots and Digi SureLink failover keep sessions alive across primary and secondary carriers, while VLAN support, dual APNs and configurable APN search help operators slice public and private network traffic. A glass-filled polyphenylene sulphide enclosure rated IP30 protects the electronics in light industrial environments, and the C1D2-rated design supports installation in Class 1 Division 2 hazardous-area sites. Built-in Digi TrustFence covers secure boot, device identity, encrypted data handling and the latest TLS encryption for over-the-air transmissions.

Compact at 118 mm by 88 mm and powered from 9 to 30 VDC, the IX10-00N4 fits inside enclosures, behind digital signage, and on DIN rails across North American manufacturing floors, ATMs, kiosks, lottery terminals and unattended retail sites. One RJ-45 Ethernet port and a software-selectable RS-232/485 serial port over RJ-50 connect both modern IP equipment and legacy serial controllers, while Digi Remote Manager pushes configuration, firmware and out-of-band console access to thousands of routers from a single cloud console. Operating temperature spans -40 °C to 70 °C and idle power consumption sits at 1.25 W, with the included Digi 360 subscription bundling cloud management, warranty cover and 24 / 7 customer care for the full service life.

IX10-00N4 Features

  • Compact and economical cellular routing platform for North American networks
  • Redundant connectivity with dual SIMs and Digi SureLink failover
  • Built-in Digi TrustFence for device security, identity and data privacy
  • Ethernet port and single RJ-50 serial port (RS-232/485)
  • Digi Remote Manager for easy setup, mass configuration and out-of-band management
  • C1D2 rated with IP30 enclosure for hazardous-area installation

Request a Quote

Product Type

Manufacturer

Certifications & Standards

Ruggedness

Mounting Format

Country Of Manufacture

United States

Approvals / Certifications

IEC62368-1, CB, EN62311, UL 121201 9th Edition, CAN/CSA C22.2 NO.213-17, ROHS3

Box Content

Digi IX10-00N4 - LTE Cat 4 Regional (North America), (1) Ethernet, RS-232/485

Case Material

Glass-filled polyphenylene sulphide (PPS)

Cellular Connectors

(2) 50 SMA (center pin: female)

Custom Options Products

Case Colour,Conformal Coating,Laser Etching,Power Supply,Mounting Options

Dimensions

(L X W X H) 118 mm x 88 mm x 35 mm (4.65 in x 3.46 in x 1.38 in)

Emissions / Immunity

CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32

Enclosure Rating

IP30; C1D2 rated for hazardous locations

Ethernet

(1) RJ-45; 10/100 Mbps (auto-sensing)

Housing Colour

Black

Humidity

5% to 95% (non-condensing)

Local Management

WebUI (HTTP/HTTPS); CLI (SSH)

LTE (N4)

LTE Cat 4 Regional - North America: B2, B4, B5, B12, B13, B14, B66, B71; 3G: B2, B4, B5

Management/Troubleshooting Tools

FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute

Memory

256 MB RAM, 256 MB flash

Operating Temperature

Minus 40 degrees celsius to 70 degrees celsius; device performance may be impacted above 50 °C (122 °F)

Ordering Info

Digi IX10-00N4 - LTE Cat 4 Regional (North America), (1) Ethernet, RS-232/485

Power Supply

9 - 30 VDC, reverse polarity protection, 1.0 A maximum; 1.25 W idle, 1.5 W light traffic, 3.5 W peak

Remote Management

Digi Remote Manager; SNMP v2/v3 (user installed/managed)

Serial I/O

(1) RJ-50 10-pin (10P10C); RS-232/485; software selectable - RS-232 DTE (RXD, TXD, RTS, CTS, DTR, DCD, DSR, RI) - RS-485 (TX/RX+; RX/TX-); half-duplex

SIM Security

Behind SIM cover, secured with screw (#1 Phillips)

SIM Slots

(2) Mini-SIM (2FF)

Status LED

Power, Internet, SIM 1, SIM 2, SIM fail, LTE, signal strength (5)

Storage Temperature

Minus 40 degrees celsius to 85 degrees celsius

Weight

0.39 kg (0.86 lb)

The Digi IX10-00N4 Cellular Router is designed and engineered for use in demanding environments where reliability, durability are essential. The IX10-00N4 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Retail, Security And Surveillance.

Across these sectors, the IX10-00N4 is typically used in applications such as Asset Tracking And Management, Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Network Monitoring, Remote Management, Secure Communications And Command-And-Control, Unattended Retail Applications.

These examples demonstrate the versatility of the IX10-00N4 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the IX10-00N4 is appropriate for your specific application, please contact us.

The Digi IX10-00N4 Cellular Router comes with a 3 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Digi IX10-00N4 Cellular Router, must be presented to RUGGED in the United Kingdom.

For more information about the Digi IX10-00N4 Cellular Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Request further details about the Digi IX10-00N4 Cellular Router

If you have any questions about the Digi International IX10-00N4 please get in touch today, our team of technical experts are ready to assist you.
