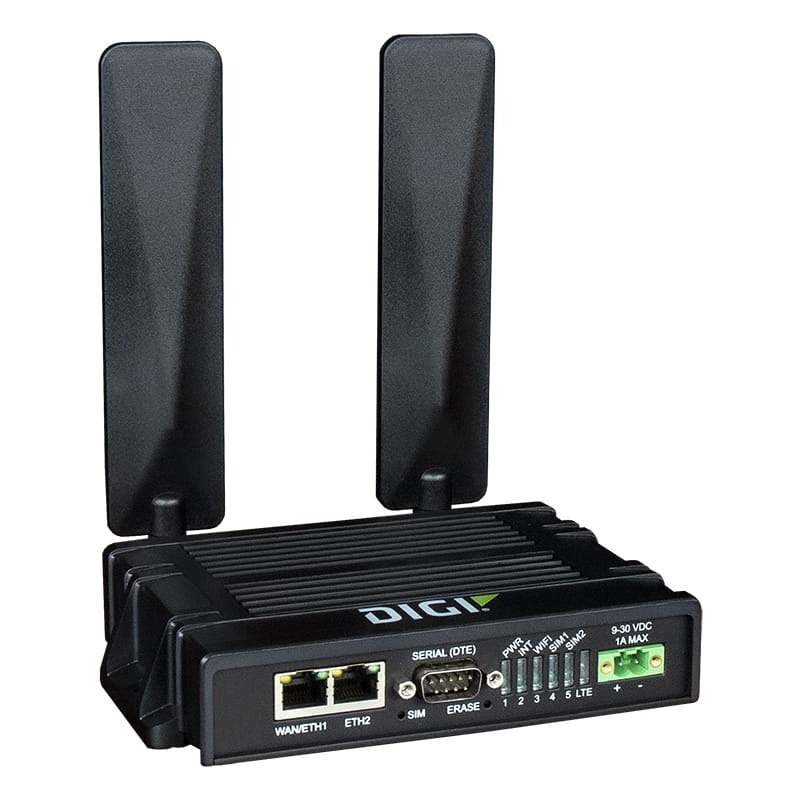

Digi IX20-0AG4 LTE Cat 4 Global Cellular Router With Accessories

Designed for industrial and remote network environments, the Digi IX20-0AG4 LTE Cat 4 Global Cellular Router provides reliable cellular connectivity with reinforced metal housing and dual SIM slots for failover. Its broad LTE band support and glass-filled polyphenylene sulphide enclosure with an IP30 rating make it suitable for applications such as digital signage and remote kiosks. The router operates across a wide temperature range from -40°C to 70°C, tolerates vibration, and offers dust-sealed protection for field deployment.

Connectivity is ensured via dual 10/100 Mbps Ethernet ports and a DB-9 RS-232 serial interface, while its low power consumption supports continuous-duty operation. Security features include hardware-backed SIM protections and advanced firewall capabilities, with remote management via Digi Remote Manager and SNMP for straightforward administration. Certified to IEC 62368-1 and compliant with CE, RED, and FCC standards, this compact device also comes supplied with accessories like cellular antennas, DIN rail clips, and power supplies for versatile installation options.

IX20-0AG4 Features

  • Industrial Grade Compact and economical cellular routing platform
  • Redundant connectivity with dual SIMs and Digi SureLink
  • FirstNet Ready models for first responder communications
  • Built-in Digi TrustFence for device security, secure encrypted connections, ongoing monitoring and support
  • Digi Remote Manager platform for easy setup, mass configuration and out-of-band management
  • Dual Ethernet ports and single serial (RS-232) port

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

Country Of Manufacture

United States

Approvals / Certifications

ROH53

Box Content

Digi IX20 - LTE Cat 4 Global, (2) Ethernet, DB-9 RS-232 Power supply with plug tips for US, UK, EU, AU: 76002104 Cellular antenna - 700 MHz to 2.7 GHz: 76000926 Cellular antenna - 600 MHz to 6 GHz: 76002114 DIN rail clip kit: 76002095 DIN rail mounting bracket kit: 76002093 Ethernet cable - 2 m (6 ft): 76002106

Case Material

Metal

Cellular Connectors

(2) 50 SMA (center pin: female)

Certifications

IEC62368-1, CB, EN62311

Custom Options Products

Cable Length,Connections,Laser Etching,Custom Printing,Power Supply,Mounting Options

Dimensions

(L X W X H) 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in)

Emissions / Immunity

CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32

Enclosure

Glass-filled polyphenylene sulphide (PPS) / IP30

Ethernet

(2) RJ-45; 10/100 Mbps (auto-sensing)

Housing Colour

Black

Humidity

5% to 95% (non-condensing)

Local Management

Web UI (HTTP/HTTPS); CLI (Telnet, SSH)

LTE (G4)

LTE Cat 4 (Global): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G: 850 / 900 / 1800 / 1900 MHz

Management/Troubleshooting Tools

FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute

Memory

256 MB RAM, 256 MB flash

Serial I/O

(1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS)

Operating Temperature

Minus 40 degrees celsius to 70 degrees celsius

Ordering Info

IX20-0AG4 - Includes DIN rail clip, power supply, (2) cellular antenna and Ethernet cable

Power Consumption

2.5 W typical (idle); 6 W typical (peak Tx/Rx)

Power Input

9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included

Remote Management

Digi Remote Manager; SNMP v2/v3 (user installed/managed)

SIM Security

Secured in cellular module

SIM Slots

(2) Mini-SIM (2FF)

Status LED

Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE

Storage Temperature

Minus 40 degrees celsius to 85 degrees celsius

WI-FI Access Points

Maximum 2 access points (access point mode: regardless of combination of clients and access points)

WI-FI Authentication

TACACS+, Enterprise RADIUS

WI-FI Clients

Maximum 10 clients (access point mode: regardless of combination of clients and access points)

WI-FI Connectors

(1) 50 SMA (center pin: male)

WI-FI Modes

Client mode and access point mode simultaneously

WI-FI Module

1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)

WI-FI Security

WPA/WPA-2 personal, WPA/WPA-2 enterprise

The Digi IX20-0AG4 LTE Cat 4 Global Cellular Router With Accessories is designed and engineered for use in demanding environments where reliability, durability are essential. The IX20-0AG4 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Retail, Security And Surveillance, Travel And Hospitality.

Across these sectors, the IX20-0AG4 is typically used in applications such as Digital Signage And Information Terminals, Emergency Dispatch And Incident Management, Health, Safety, And Compliance Inspections, Mobile Workforce Operations, Process Control And Shop-Floor Monitoring, Remote Management, SCADA And Control-Room Access, Secure Communications And Command-And-Control.

These examples demonstrate the versatility of the IX20-0AG4 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the IX20-0AG4 is appropriate for your specific application, please contact us.

The Digi IX20-0AG4 LTE Cat 4 Global Cellular Router With Accessories comes with a 3 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Digi IX20-0AG4 LTE Cat 4 Global Cellular Router With Accessories, must be presented to RUGGED in the United Kingdom.

For more information about the Digi IX20-0AG4 LTE Cat 4 Global Cellular Router With Accessories or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the Digi IX20-0AG4 LTE Cat 4 Global Cellular Router With Accessories, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Digi International IX20-0AG4 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • Dual SIM slots for failover
    • Industrial-grade metal housing with IP30 rating
    • Wide temperature range from -40°C to 70°C
    • Digi Remote Manager with SNMP remote management
    • Dual SIM slots for LTE redundancy
    • Dust-sealed metal housing
    • RS-232 and RS-485 serial interfaces
    • Remote network management via Digi Remote Manager
    • Global LTE failover for continuity
    • Dual SIM slots for automatic switching
    • IP30 sealed glass-filled PPS housing
    • Dual Ethernet and Wi-Fi networking
    • Dual SIM for carrier redundancy
    • IP30-rated durable enclosure
    • Integrated LTE and dual-band Wi-Fi
    • Remote management via Digi Remote Manager
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    Yes, a cellular router requires a SIM card to establish an internet connection by accessing cellular networks. Just like a smartphone, the SIM card provides the necessary credentials for the router to connect to a mobile network, enabling it to transmit and receive data remotely.

    This reliance on a cellular router SIM makes these devices ideal for deployment in challenging environments or temporary setups where wired internet infrastructure is non-existent or unreliable. Rugged Limited offers a range of industrial and vehicle cellular routers that benefit from this technology, ensuring robust and continuous connectivity. Without a valid SIM card, the cellular router cannot access the mobile data network, effectively preventing it from performing its primary function of providing wireless internet access.

    Cellular routers are versatile devices designed to provide robust and reliable internet access in demanding environments. The cellular router applications are extensive, ranging from industrial settings to remote deployments. These routers are instrumental in ensuring continuous operation and data transmission where wired infrastructure is difficult or impossible to implement.

    Key cellular router applications include:

    • Industrial Internet of Things (IIoT): Connecting sensors, machinery, and control systems in factories, utilities, and other industrial sites for real-time monitoring and data collection.
    • Transportation: Providing internet access for public transport, logistics, and fleet management, enabling connectivity for passengers and operational systems.
    • Retail and Commercial: Establishing primary or backup internet connections for point-of-sale systems, digital signage, and security cameras in branches or temporary setups.
    • Public Safety: Offering critical communication links for emergency services, disaster relief, and surveillance operations in challenging conditions.
    • Remote Offices and Temporary Sites: Delivering quick-to-deploy internet solutions for construction sites, pop-up events, and remote offices without permanent infrastructure.

    Rugged Limited provides a range of cellular routers specifically engineered to meet the demands of these diverse applications, ensuring high performance, durability, and secure connectivity in critical operations. Our routers are built to withstand harsh conditions, offering dependable service across various cellular router applications.

    Industrial routers are engineered to offer a significantly longer operational lifespan compared to their commercial counterparts. This extended industrial router lifespan is primarily due to their robust design, which incorporates industrial-grade components and specialised housing to withstand harsh environments.

    Rugged Limited’s industrial routers, for instance, are built to endure extreme temperatures, vibrations, and moisture, factors that would quickly degrade standard routers. Our focus on quality and durability ensures that these devices maintain reliable performance over many years, minimising the need for frequent replacements and reducing total cost of ownership.

    When considering the industrial router lifespan, it is important to look at the manufacturer’s commitment to quality and the specific features designed for resilience. For more information on durable connectivity solutions, explore our range of rugged routers.

    An Industrial Cellular Router is specifically designed to meet the rigorous demands of industrial environments, making them highly suitable for such settings. These routers provide essential connectivity for applications where traditional wired networks are impractical or unavailable, often in remote or harsh conditions.

    Rugged Limited offers cellular routers built to withstand the challenges of industrial use, ensuring reliable operation in scenarios that require robust and persistent communication. Their design considers factors such as extreme temperatures, vibrations, and dust, which are common in industrial landscapes, further solidifying the suitability of an Industrial Cellular Router for various applications.

    For a comprehensive selection of connectivity solutions tailored for challenging environments, you can explore Rugged Router options.

    Cellular routers are indeed highly suitable for IoT deployments due to their ability to provide robust and flexible connectivity in diverse environments. Many IoT applications require reliable internet access in locations where wired connections are impractical or unavailable, and this is where an IoT cellular router excels. They offer seamless communication for devices collecting and transmitting data, from remote sensors to smart city infrastructure.

    Rugged Limited offers a range of industrial cellular routers that are specifically designed to withstand challenging conditions often encountered in IoT deployments. These routers ensure continuous operation and secure data transmission, which are critical for the efficiency and integrity of any IoT system. The robust nature of these devices makes them an ideal choice for ensuring consistent connectivity for your IoT solutions.

    Rugged Limited offers a range of robust cellular routers engineered to facilitate internet access for multiple devices. These devices are designed to distribute a single 4G or 5G cellular connection across various connected equipment, including industrial IoT sensors, cameras, and remote workstations. This capability ensures seamless operation in environments where traditional wired internet is unavailable or unreliable, making our offerings an ideal multi-device cellular router solution for diverse applications.

    Our cellular routers are built to handle the demands of multiple simultaneous connections, ensuring stable and efficient data transmission across all linked devices. This is particularly beneficial for complex industrial setups requiring continuous monitoring and control of numerous components. For more information on our robust connectivity solutions, you can explore our range of rugged routers, which are purpose-built for challenging conditions and multi-device support.

    Cellular routers are essential for maintaining continuous connectivity in numerous sectors where traditional wired infrastructure may be impractical or unreliable. The Cellular Router Industries include, but are not limited to, public safety, transportation, utilities, and agriculture.

    For instance, in public safety, cellular routers enable first responders to access critical data and communicate effectively in emergency situations, often in remote or disaster-stricken areas. Within the transportation sector, they provide connectivity for fleet management, real-time tracking, and passenger Wi-Fi on buses and trains. Utility companies utilise these routers for smart grid management, remote monitoring of infrastructure, and data collection from distributed assets. In agriculture, cellular routers support precision farming techniques, connecting sensors and automated machinery to optimise operations and monitor crop health.

    Rugged Limited provides a range of robust and reliable rugged routers designed to meet the demands of these diverse applications, ensuring consistent performance even in harsh conditions. Our solutions cater to the specific needs of various Cellular Router Industries, offering secure and stable network access for mission-critical operations.

    Rugged Limited offers a range of high-performance cellular routers that are fully equipped to support 5G connectivity. Our 5G cellular routers are engineered to deliver robust and high-speed internet in diverse and challenging industrial settings.

    These advanced routers are designed to capitalise on the benefits of 5G, including significantly faster download and upload speeds, lower latency, and increased network capacity. This makes them ideal for applications requiring real-time data processing, remote monitoring, and high-bandwidth communication.

    For more information on our range of devices, you can explore our selection of rugged routers, where you’ll find various models that integrate seamlessly with current 5G networks, ensuring future-proofed connectivity solutions for your operations.
