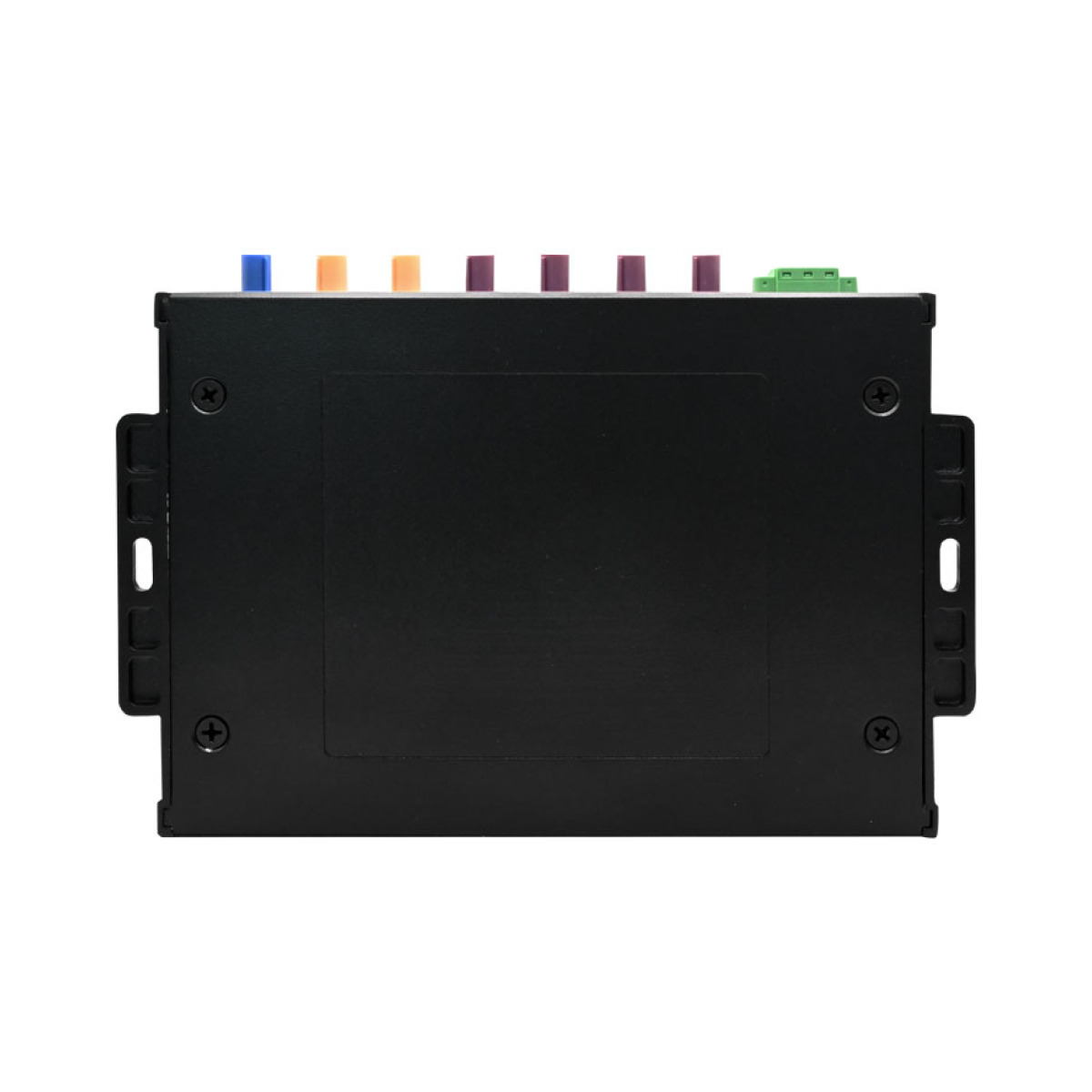

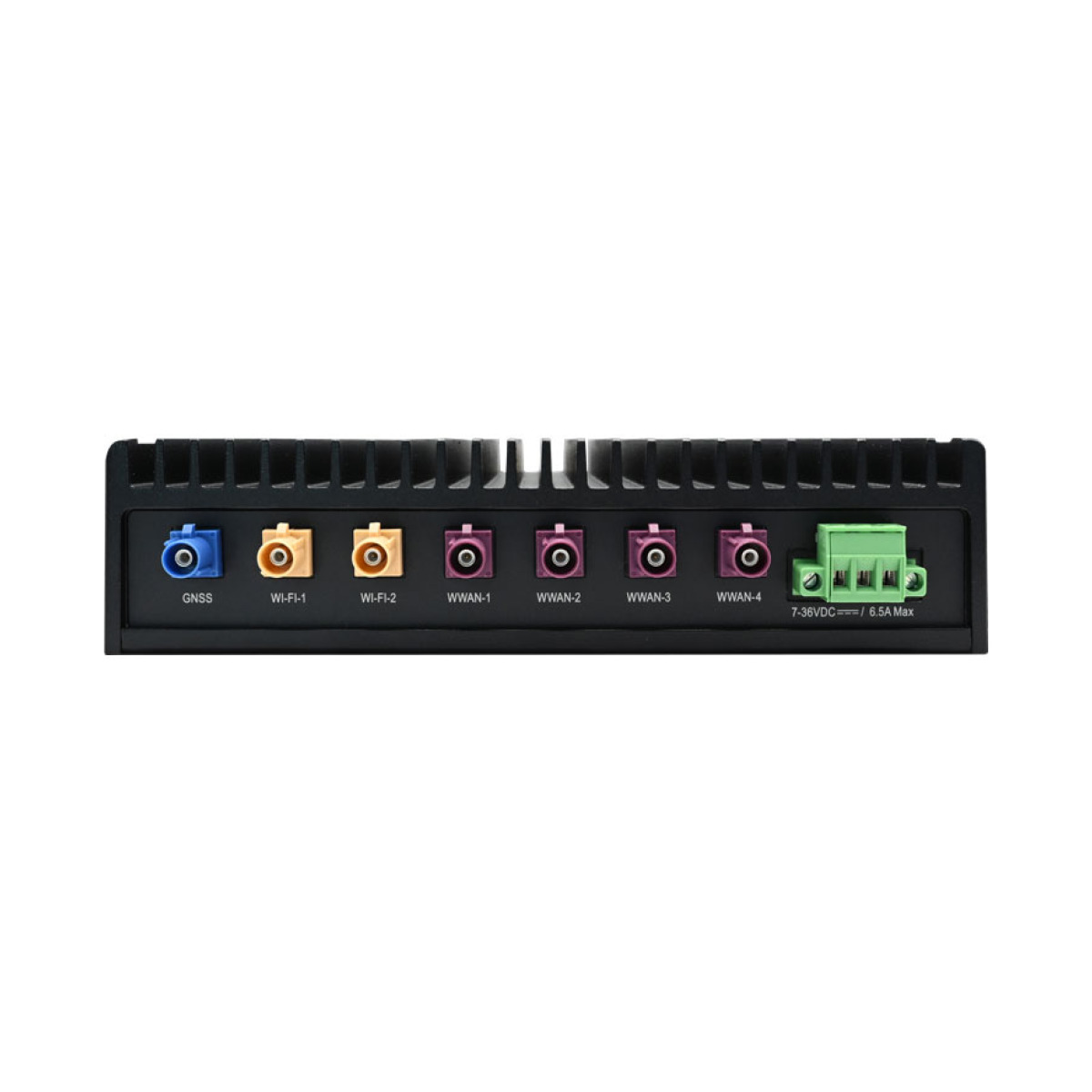

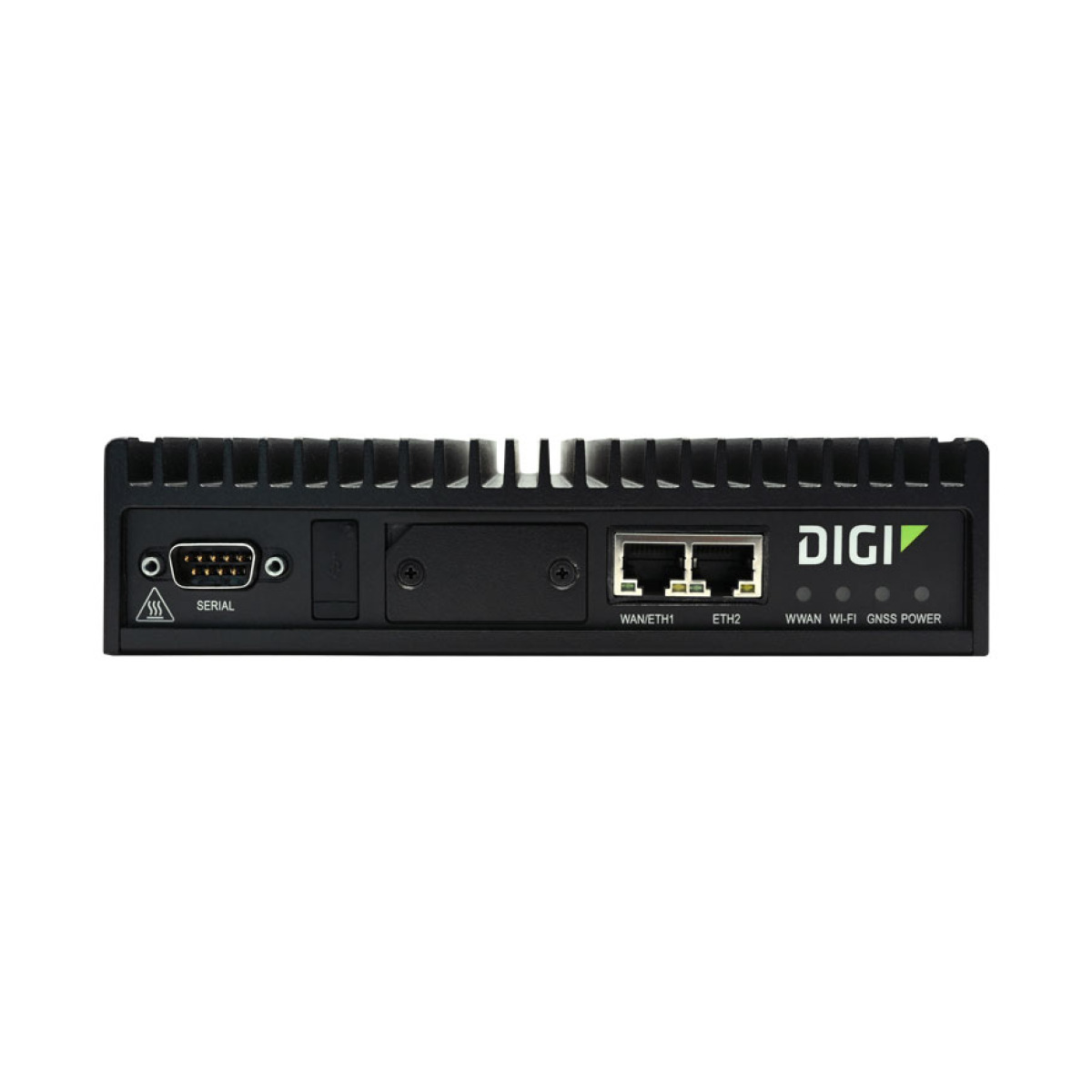

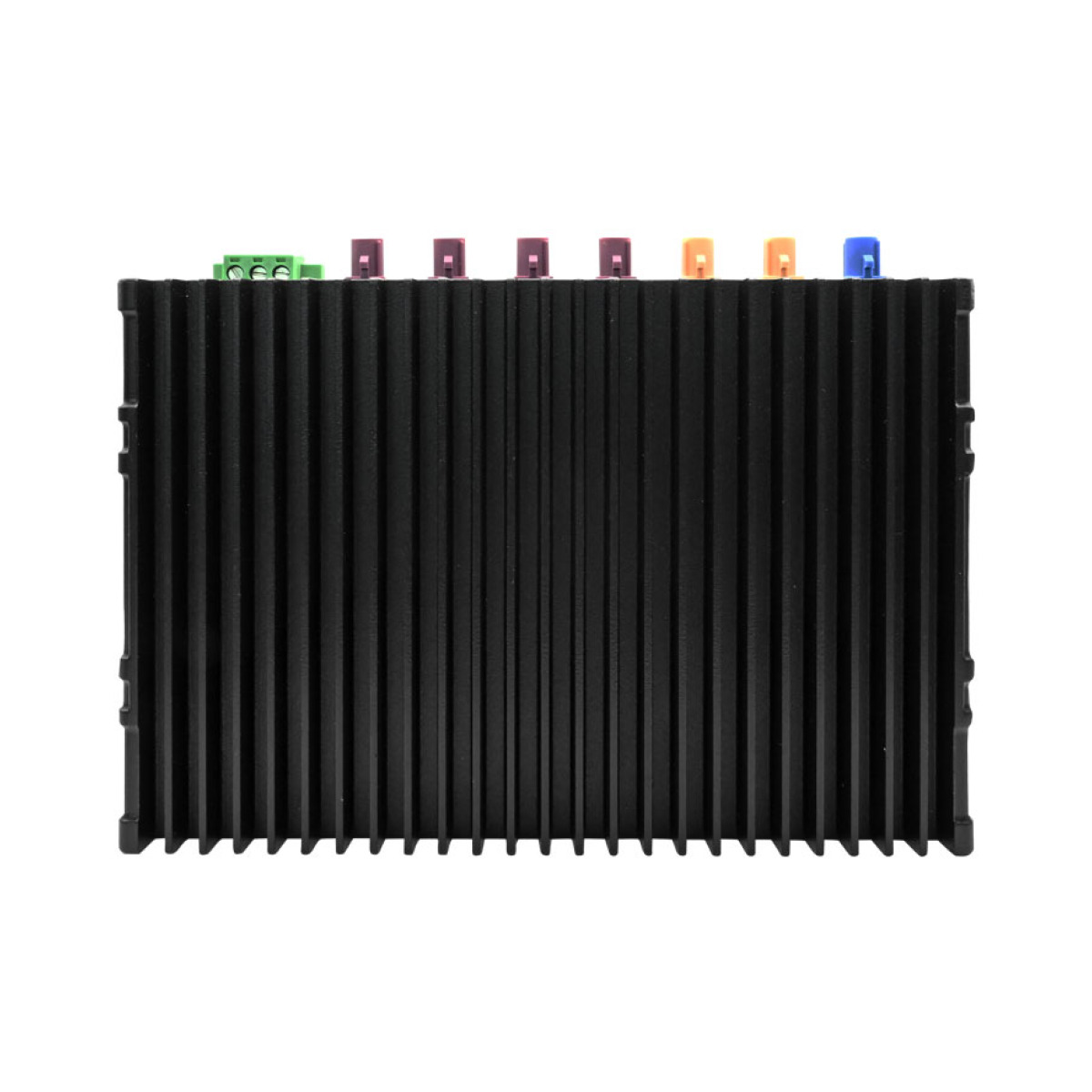

Digi TX40-A500 5G Transportation Cellular Router

  • LTE
  • DUAL SIM
  • ETHERNET
  • RS232
  • RS232
  • WIDE TEMPERATURE
  • WIDE VDC

The Digi TX40-A500 is a purpose-built 5G in-vehicle communications hub for first responder fleets, transit operators and public safety agencies. The cellular modem handles 5G NSA, 5G SA and LTE-Advanced Pro across 5G NR n1 through n79 (including CBRS n48 and the full C-band), 4G LTE bands B1 to B71 with B14 FirstNet and B46 / B48 CBRS for private LTE, and 3G fallback on B1 to B19. Two or four FAKRA Code D antenna ports drive the cellular MIMO chain, two nano-SIM slots cover carrier redundancy, and a dedicated multi-constellation GNSS receiver pulls GPS, Galileo, BeiDou and GLONASS fixes with Untethered Dead Reckoning so dispatch keeps the vehicle on the map through tunnels and urban canyons. Wi-Fi 6 (802.11ax) on the 2.4 GHz and 5 GHz bands runs concurrent client and access-point modes for in-vehicle laptops, body cameras, ALPR and eTicket terminals, and Bluetooth 5.2 connects PTT and accessory peripherals.

The aluminium IP64 chassis stands up to vibration, shock and dust per MIL-STD-810H, and the 7 to 36 VDC input with ignition sense wires directly into the vehicle electrical system at 8 W idle and 15 W peak transmit. Two RJ-45 Gigabit Ethernet ports, a single RS-232 DB-9 DTE and a USB 3.0 Type A interface link the rest of the in-vehicle equipment together. The TX40-A500 is FirstNet Trusted, Verizon Frontline approved and certified for T-Mobile Connecting Heroes, and the Digi SAFE solution with Digi Mobile VPN provides persistent encrypted sessions across cellular and Wi-Fi failover. ITxPT certification, FIPS 140-2 cryptography and the Digi TrustFence security framework round out a router that mounts in 198 mm by 138 mm of dashboard space, with the included Digi 360 subscription covering Digi Remote Manager, warranty and 24 / 7 customer care.

TX40-A500 Features

  • 5G NSA, 5G SA and LTE-Advanced Pro for next-generation in-vehicle connectivity
  • FirstNet Trusted, Verizon Frontline and T-Mobile Connecting Heroes certified for first responders
  • Wi-Fi 6 dual-band 2x2 MIMO with concurrent access-point and client modes
  • GNSS with Untethered Dead Reckoning for accurate fixes through tunnels and urban canyons
  • ITxPT certified for interoperability with other in-vehicle systems
  • FIPS 140-2 cryptography and Digi TrustFence security framework

Request a Quote

Product Type

Manufacturer

Certifications & Standards

Ruggedness

Mounting Format

Country Of Manufacture

United States

Approvals / Certifications

IEC 62368-1, CB scheme; CE, FCC Part 15 Subpart B with IC, UKCA; E-Mark (UNECE Reg. 10); MIL-STD-810H; ITxPT certified; FIPS 140-2

Bluetooth

Bluetooth 5.2

Box Content

Digi TX40-A500 — 5G and 4G LTE-Advanced Pro, dual Ethernet, Wi-Fi 6, USB, RS-232, GNSS

Case Material

Aluminium

Cellular Connectors

(2) or (4) FAKRA Code D (burgundy)

Dimensions

198 x 138 x 44 mm (7.78 x 5.54 x 1.73 in)

Emissions / Immunity

CE, FCC Part 15 Subpart B with IC, UKCA

Enclosure Rating

Aluminium / IP64

Ethernet

(2) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN

GNSS

GPS, Galileo, BeiDou and GLONASS with Untethered Dead Reckoning (UDR), multiple geofence support; sensitivity -160 dBm; NMEA 4.11 and TAIP; (1) FAKRA Code C (blue) connector

Humidity

0% to 95% (non-condensing) at 25 °C

Local Management

Web UI (HTTPS); CLI (SSH, serial)

LTE-Advanced Pro Bands

5G NR: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48 (CBRS), n66, n71, n75, n76, n77, n78, n79, C-band; 4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 (FirstNet), B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46 LAA, B48 (CBRS), B66, B71; 3G: B1, B2, B3, B4, B5, B6, B8, B19

Memory

1 GB RAM / 8 GB flash

Operating Temperature

Minus 34 degrees celsius to 74 degrees celsius

Ordering Info

Digi TX40-A500 — 5G and 4G LTE-Advanced Pro, dual Ethernet, Wi-Fi 6, USB, RS-232, GNSS

Power Consumption

8 W typical (idle); 15 W (peak RF Tx/Rx)

Power Supply

7 – 36 VDC, ignition sense, reverse polarity protection; screw down removable terminal block

Remote Management

Digi Remote Manager (cloud based); SNMP v2c/v3; SMS

Serial I/O

(1) RS-232; DB-9 male (DTE)

SIM Slots

(2) Nano-SIM (4FF); SIM slot cover plate included

Status LED

Power, GNSS, Wi-Fi, WWAN, Ethernet (link, activity)

Storage Temperature

Minus 40 degrees celsius to 85 degrees celsius

USB

(1) USB 3.0 Type A; 5 VDC 1 A max

Vehicle Approvals

E-Mark (UNECE Reg. 10); FirstNet Trusted, Verizon Frontline, T-Mobile Connecting Heroes; ITxPT certified

Weight

1 kg (2.2 lb)

Wi-Fi

Wi-Fi 6 (802.11ax) dual-band (2.4 / 5 GHz) concurrent 2 x 2 MIMO; backward compatible with Wi-Fi 5 (802.11ac) and Wi-Fi 4 (802.11n); WPA, WPA2, WPA3 Personal and Enterprise; (2) FAKRA Code I (beige) connectors

The Digi TX40-A500 5G Transportation Cellular Router is designed and engineered for use in demanding environments where reliability, durability are essential. The TX40-A500 supports a wide range of industries and operational applications.

Common deployment industries include: Rail And Transport, Security And Surveillance.

Across these sectors, the TX40-A500 is typically used in applications such as Asset Tracking And Management, Fleet Management And Telematics, Mobile Workforce Operations, Network Monitoring, Remote Management, Secure Communications And Command-And-Control, Vehicle Diagnostics And Onboard Systems, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the TX40-A500 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the TX40-A500 is appropriate for your specific application, please contact us.

The Digi TX40-A500 5G Transportation Cellular Router comes with a 3 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Digi TX40-A500 5G Transportation Cellular Router, must be presented to RUGGED in the United Kingdom.

For more information about the Digi TX40-A500 5G Transportation Cellular Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Request further details about the Digi TX40-A500 5G Transportation Cellular Router

If you have any questions about the Digi International TX40-A500 please get in touch today, our team of technical experts are ready to assist you.
