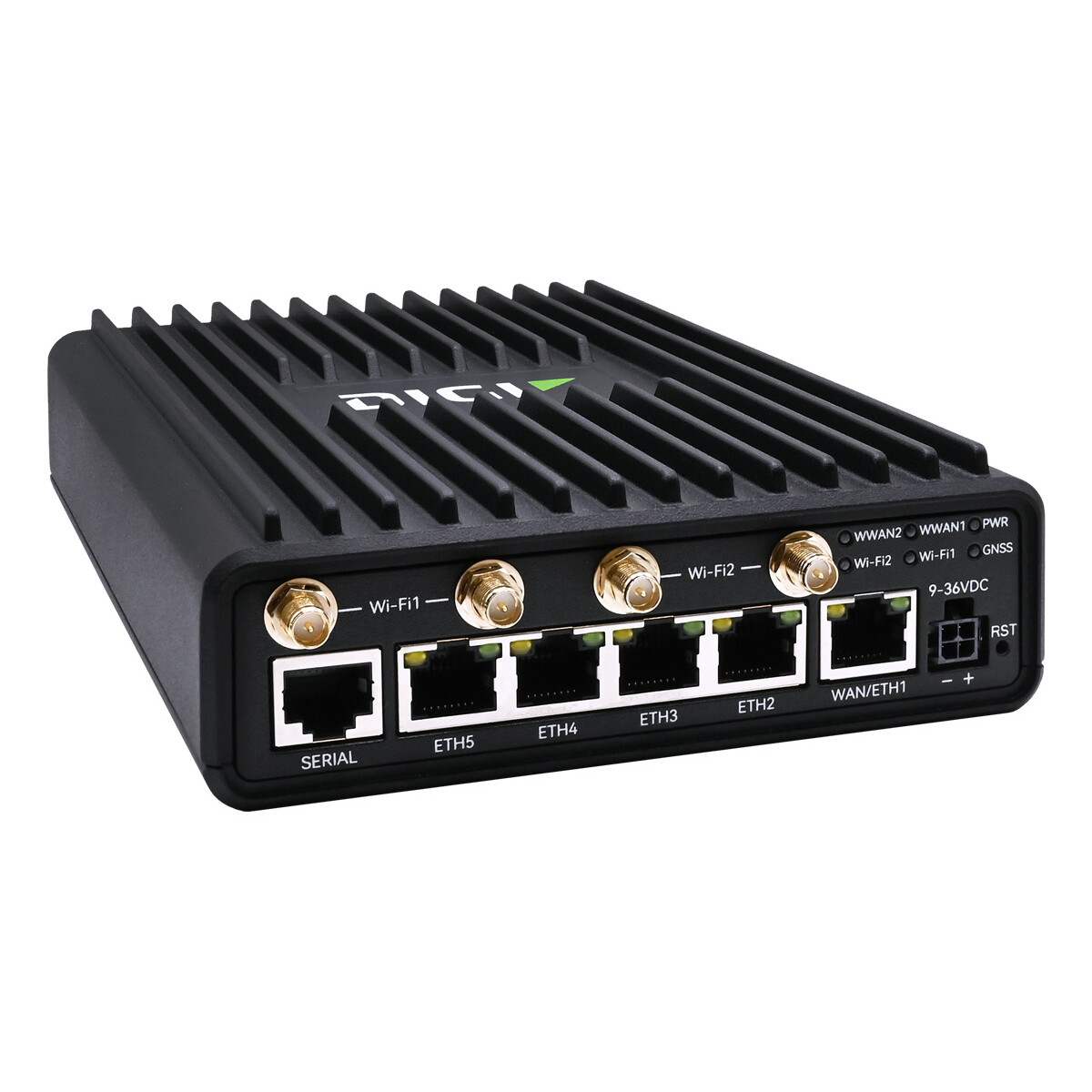

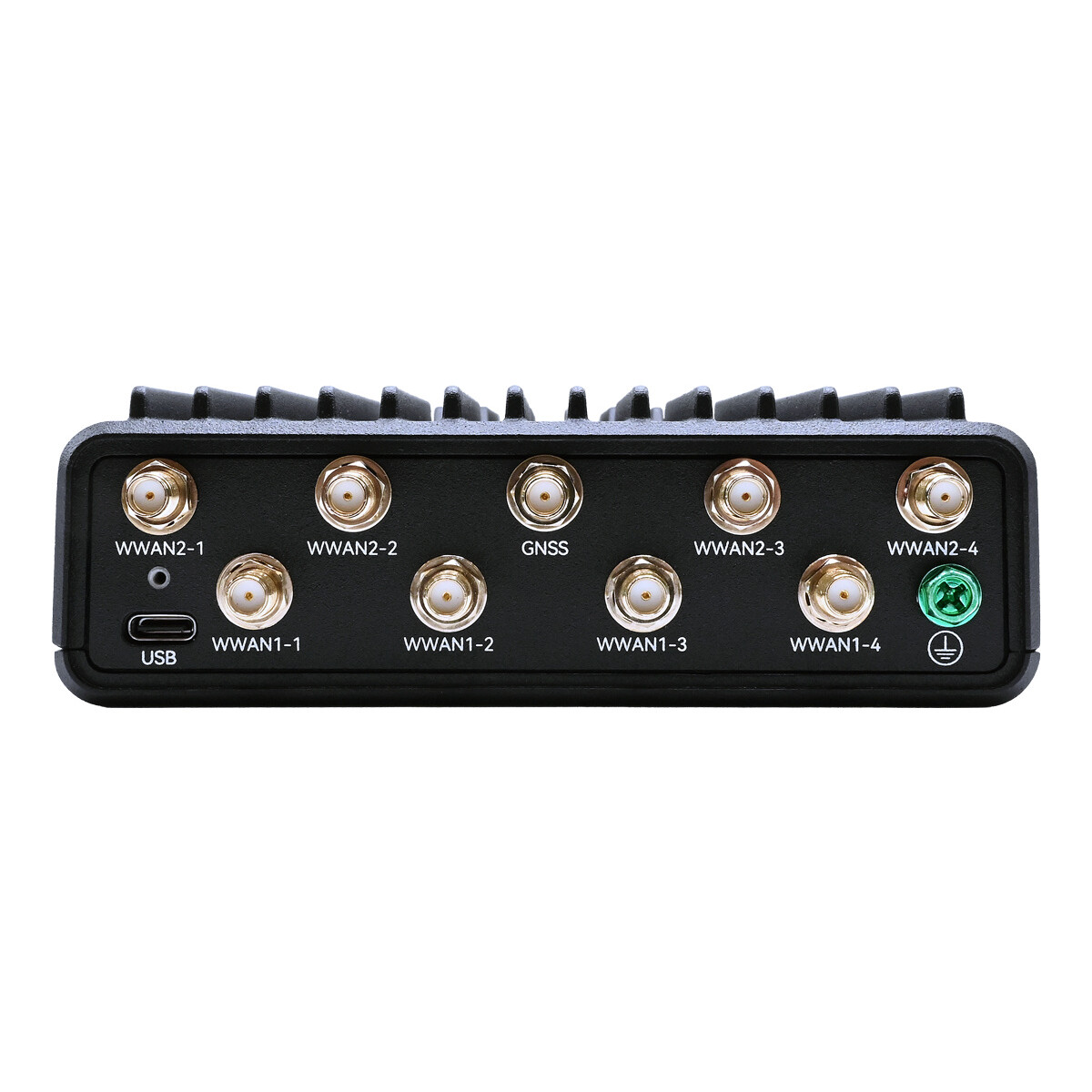

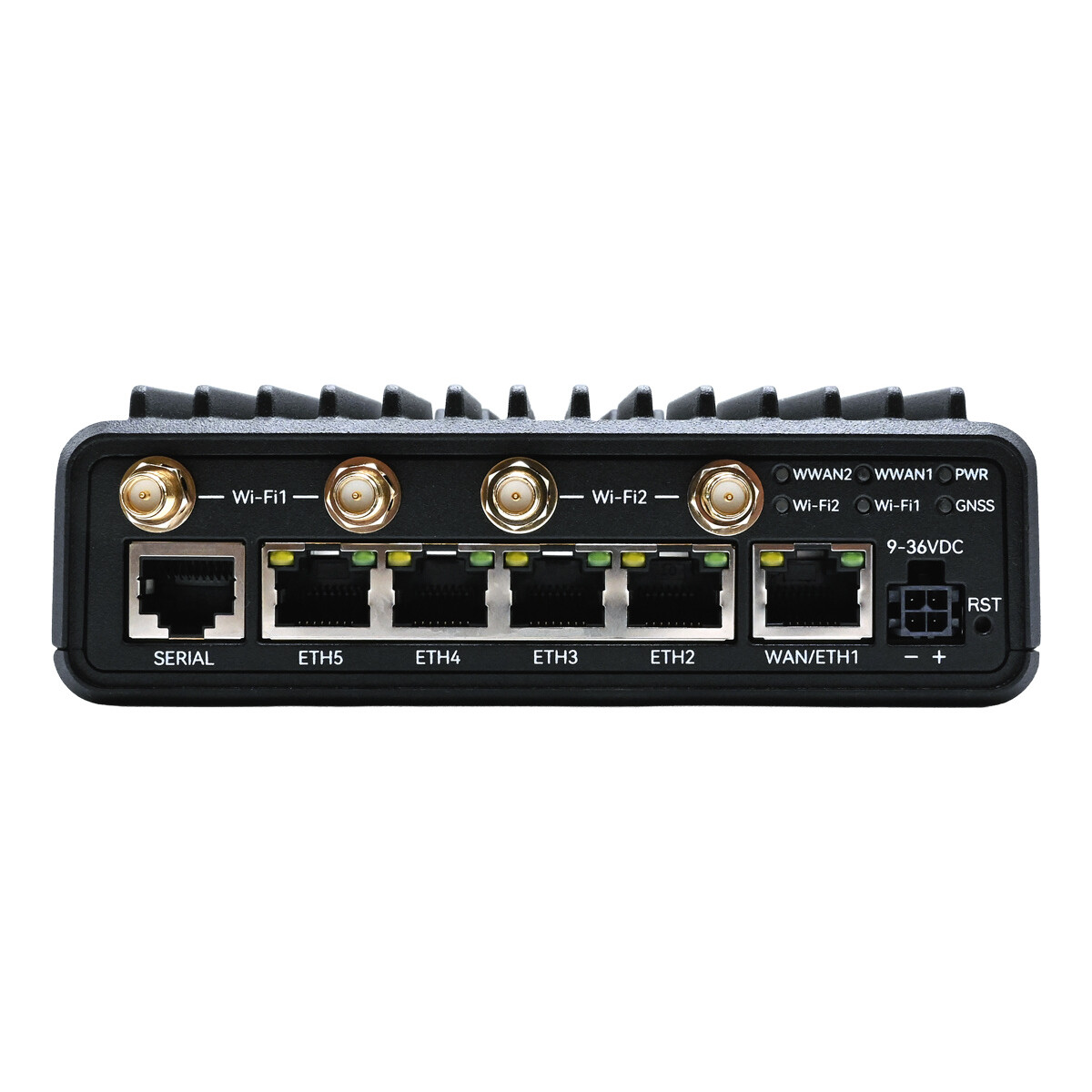

Digi TX65 5G Cellular Vehicle Router

  • 5G
  • LTE
  • WIFI
  • GPS
  • ETHERNET
  • USB C
  • MIL STD 810H

The Digi TX65 5G is a rugged vehicle router built to deliver secure, high-performance connectivity for transportation, public safety and mobile industrial fleets operating at speed and at scale. Based on the Qualcomm SDX72 platform with 5G eMBB and 4G LTE-Advanced Pro, it keeps critical systems online and prioritised across dense urban corridors, remote routes and rapidly changing network conditions, whether enabling passenger Wi-Fi and fare collection on transit systems or supporting real-time video and CAD/AVL in emergency response vehicles.

The TX65 is among the most capable routers in its class. It supports tri-band Wi-Fi 7 with dual-concurrent operation for high-density client access and backhaul, multi-constellation GNSS including QZSS for accurate fleet visibility, and a dual-modem configuration for carrier resilience. Wired connectivity is equally advanced, with a 2.5 GbE WAN port and four 1 GbE LAN ports for multi-gigabit throughput, a USB 3.1 Type-C peripheral port with DRD/DRP support and an RS-232 / RS-485 serial interface. Security is enterprise grade, built on the Digi TrustFence framework and backed by SOC 2 Type 2 attested Digi Remote Manager cloud management.

Designed for the vehicle environment, the TX65 is housed in a rugged aluminium-alloy enclosure rated to IP64 and operating from -40°C to 75°C, with an ignition-aware 9 to 36 VDC power input and reverse-polarity protection. It is validated to demanding vehicle and environmental standards including MIL-STD-810H, SAE J1113 and ISO 16750-2, and is supplied as part of the Digi 360 solution with warranty, customer care and centralised cloud management, making it a future-ready connectivity hub for transit, public safety and mobile industrial fleets.

TX65-5B5A-2N Features

  • Rugged 5G eMBB vehicle router based on the Qualcomm SDX72 platform
  • Tri-band Wi-Fi 7 with dual-concurrent operation for backhaul and passenger access
  • Dual-modem configuration for carrier resilience
  • Multi-gigabit wired networking: 2.5 GbE WAN and four 1 GbE LAN ports
  • Multi-constellation GNSS including QZSS for accurate fleet visibility
  • USB-C 3.1 and RS-232 / RS-485 for secure peripheral and serial connections
  • Validated to MIL-STD-810H, SAE J1113 and ISO 16750-2, IP64, -40°C to 75°C
  • Digi TrustFence security with SOC 2 Type 2 attested Digi Remote Manager

Request a Quote

Product Type

Manufacturer

Certifications & Standards

Ruggedness

Country Of Manufacture

United States

Cellular

5G NR Sub-6 (n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48 CBRS, n66, n70, n71, n77, n78); 4G LTE-Advanced Pro (B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B38, B41, B42, B43, B48 CBRS, B66, B71)

Processor

Qualcomm SDX72

Memory

2 GB RAM / 8 GB Flash

Wi-Fi

Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), tri-band, dual-concurrent options

GNSS

GPS, Galileo, BeiDou, GLONASS, QZSS

Ethernet

(1) 2.5 GbE WAN, (4) 1 GbE LAN

Serial / I/O

(1) EIA RS-232 DTE / RS-485

USB

(1) USB 3.1 Type-C with DRD/DRP support

Power

9 to 36 VDC, ignition sense, reverse polarity protection

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Enclosure

Aluminium alloy, IP64

Dimensions

192 mm x 133 mm x 43 mm (7.56 in x 5.24 in x 1.69 in)

Weight

1.1 kg (2.5 lb)

Security

Digi TrustFence, SOC 2 Type 2 attested

Approvals / Certifications

PTCRB, AT&T, Verizon Frontline, IEC 62368, SAE J1113, ISO 16750-2, MIL-STD-810H

Management

Digi Remote Manager (cloud)

Warranty

3 years (Digi 360)

The Digi TX65 5G Cellular Vehicle Router is designed and engineered for use in demanding environments where reliability, durability are essential. The TX65-5B5A-2N supports a wide range of industries and operational applications.

Common deployment industries include: Emergency Services, Field Service, Logistics And Supply Chain, Public Sector, Rail And Transport, Security And Surveillance.

Across these sectors, the TX65-5B5A-2N is typically used in applications such as Emergency Dispatch And Incident Management, Fleet Management And Telematics, Mobile Workforce Operations, Remote Management, Route Planning And Navigation, Security And Surveillance Operations, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the TX65-5B5A-2N across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the TX65-5B5A-2N is appropriate for your specific application, please contact us.

The Digi TX65 5G Cellular Vehicle Router comes with a 3 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Digi TX65 5G Cellular Vehicle Router, must be presented to RUGGED in the United Kingdom.

For more information about the Digi TX65 5G Cellular Vehicle Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
