iKey IK-PAN-FZG1-NB-C1 Snap-On Panasonic Rugged Keyboard

  • MIL STD 810G
  • IP66 RATED
  • SHOCK
  • KEYBACKLIGHT
  • TOUCHPAD
  • USB
  • CUSTOMISABLE
  • DUSTPROOF

The iKey IK-PAN-FZG1-NB-C1 Snap-On Panasonic Rugged Keyboard is designed for field and industrial use with the Panasonic FZ-G1 tablet, ensuring reliable input in challenging environments. It features a robust aluminium housing and silicone rubber key overlays, providing resistance to spills, dust, and mechanical shock. The keyboard includes backlit keys for operation in low-light conditions and maintains tactile feedback for efficient data entry on the move. Certified to MIL-STD-810G for shock and vibration and compliant with EMI standards such as EN55022 and FCC Part 15 Class A, this keyboard supports continuous-duty use across a temperature range of -20°C to 60°C. Its sealed design offers ingress protection to withstand environmental contaminants, making it suitable for deployment in demanding locations.

The keyboard’s snap-in-place mounting ensures secure attachment to the FZ-G1 tablet, while its integrated touchpad enhances navigation without additional peripherals. Powered via a USB connection drawing 35mA at 5V, it balances durability with practical functionality for industrial applications.

IK-PAN-FZG1-NB-C1 Features

  • Designed To Fit Panasonic Fz-G1 Tablet
  • Rugged Magnesium Case
  • Integrated Backlit Keys
  • External USB Port
  • Integrated Touchpad
  • Resistant To Dirt, Dust, and Spills
  • Various Keyboard and Language Layout Options

Request a Quote

Product Type

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

United States

Backlight

White

Case Material

Aluminum

Certifications

CE, RoHS compliant

Custom Options Products

Keyboard Layout,Keyboard Language

Dimensions

277.88 x 231.90 x 42.93 mm (10.94 x 9.13 x 1.69 inches)

Housing Colour

Silver

Humidity

85% Humidity Resistant

Cable

Single-Cable USB Appx. 1.6m-2m

Compatibility

Snap-in-Place Fully Rugged Keyboard for the FZ-G1 Tablet

Connectivity

No filter

EMI

EN55022, FCCPart 15 Subpart B Class A

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Spacing

18 mm

Key Switch

Carbon Contact Technology

LED Indicators

Num Lock, Scroll Lock, Caps Lock

Lifespan

>10 Million Actuations

Mounting Type

Panasonic FZ-G1 Clip On

No. Of Keys

88

Operating Force

Adjustable

Pointing Device

Touchpad

Power

USB: 35mA@5V (from CPU port)

Product Weight

1.8 lbs +/- 0.10 lbs (0.90 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

62.39g (+/- 5g)

Switch / Key Travel

0.120 in. (3.0mm)

Temperature Range

STORAGE: -40C to +60C OPERATING: 0C to +50C

Vibration

POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to 75C (-40F to 167F) OPERATION: -20C to 60C (-4F to 140F)

The iKey IK-PAN-FZG1-NB-C1 Snap-On Panasonic Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability and application suitability are essential. The IK-PAN-FZG1-NB-C1 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Rail And Transport.

Across these sectors, the IK-PAN-FZG1-NB-C1 is typically used in applications such as Field Data Capture And Reporting, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Secure Communications And Command-And-Control, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the IK-PAN-FZG1-NB-C1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the IK-PAN-FZG1-NB-C1 is appropriate for your specific application, please contact us.

The iKey IK-PAN-FZG1-NB-C1 Snap-On Panasonic Rugged Keyboard comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey IK-PAN-FZG1-NB-C1 Snap-On Panasonic Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey IK-PAN-FZG1-NB-C1 Snap-On Panasonic Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey IK-PAN-FZG1-NB-C1 Snap-On Panasonic Rugged Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey IK-PAN-FZG1-NB-C1 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • Compact dust-sealed design
    • Industrial silicone rubber overlay
    • Force sensing resistor pointing device
    • NEMA 4X and MIL-STD certified
    iKey IK-77-FSR Compact Rugged Keyboard With FSR
    • Reinforced CRS steel enclosure
    • Impact-resistant ball-bearing slides
    • Tactile mechanical snap keys with 10M+ actuations
    • Wide operating temperature range -40°C to +60°C
    iKey RDC-1535 Rackmount Rugged Keyboard
    • IP68 and NEMA 4X sealed housing
    • MIL-STD-810G shock and vibration resistant
    • Wireless Bluetooth with rechargeable lithium-ion battery
    • Tactile silicone rubber keys with LED backlighting

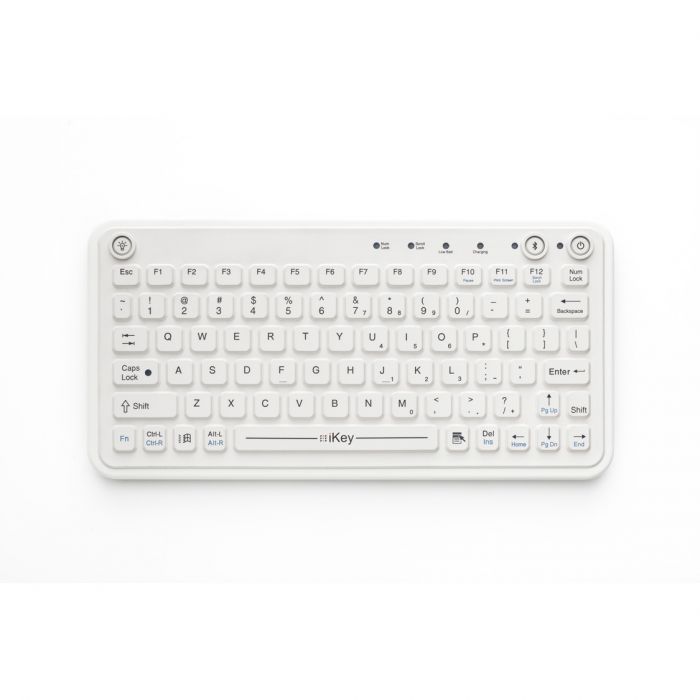

    iKey BT-80-TP Bluetooth Rugged Keyboard
    • Sealed ABS polycarbonate case for dust and water protection
    • Backlit keys for low-light visibility
    • Over 10 million tactile key actuations
    • Certified MIL-STD-810G shock and vibration resistant
    iKey SLK-102 Backlit Rugged Keyboard
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    Rugged Limited specialises in providing industrial-grade input solutions, including rugged keyboards, designed to operate reliably in challenging conditions. These keyboards are built to withstand elements such as extreme temperatures, dust, dirt, liquids, and heavy usage, which are common causes of failure for standard peripherals.

    By preventing premature failure and reducing the need for frequent replacements or repairs, a rugged keyboard inherently contributes to less operational downtime. Their robust construction ensures consistent performance, enabling uninterrupted work in industries where reliability is paramount. Rugged Limited’s keyboards are engineered for longevity and resilience, giving businesses peace of mind and supporting continuous operations.

    Explore Rugged Limited’s range of rugged keyboards to find a solution that meets your specific industrial needs and helps minimise downtime.

    Rugged keyboards are an excellent choice for control rooms, where reliability and durability are paramount. These environments often require equipment that can endure continuous use and potential exposure to dust or spills without compromising performance.

    Specifically designed with robust materials, a rugged keyboard offers superior protection compared to standard keyboards. This resilience ensures that critical operations in control rooms can proceed uninterrupted, even in challenging conditions. Rugged Limited provides a range of these specialized input devices, built to meet the rigorous demands of such settings, ensuring long-lasting functionality and consistent performance.

    Absolutely, rugged keyboards are engineered to be highly compatible and functional with kiosks and Human Machine Interfaces (HMIs). These environments often require input devices that can withstand continuous use, potential spills, dust, and even vandalism. Rugged Limited provides a range of rugged keyboard solutions that are purpose-built to meet these stringent demands.

    Our rugged keyboards feature durable construction, often including stainless steel or silicone, and are designed to offer protection against liquids and particulates. This makes them an ideal choice for public-access kiosks, industrial control panels, and other HMI applications where standard keyboards would quickly fail. The robust design ensures consistent performance and a long operational lifespan, reducing maintenance needs and improving user experience in challenging settings.

    Rugged Limited provides a range of rugged keyboards designed to withstand challenging industrial environments, including those found on forklifts and heavy machinery. These keyboards are built to be extremely durable, offering resistance to liquids, dust, and extreme temperatures, which are common conditions in such operational settings.

    The design of many rugged keyboard models includes features that facilitate easy integration into various industrial setups. This often involves robust casings and adaptable mounting solutions, ensuring a secure and stable fit even with vibrations or impacts inherent to machinery operation. Their resilience makes them a reliable interface for data entry and control in demanding applications. Rugged Limited’s extensive experience ensures these keyboards meet the rigorous demands of industrial use.

    Rugged keyboards are indeed typically more expensive than standard consumer-grade keyboards. This price difference stems from several key factors related to their construction and intended use. Unlike standard keyboards, a rugged keyboard is engineered to withstand harsh environments and demanding conditions, meaning they are built with higher-grade materials and often feature specialised sealing against dust, liquids, and extreme temperatures.

    For instance, many rugged keyboards incorporate features like silicone membranes, stainless steel casings, or industrial-grade plastics to ensure longevity and consistent performance where a regular keyboard would quickly fail. The design and manufacturing processes for these durable peripherals are more intricate, involving rigorous testing to meet stringent industrial and military standards. This commitment to resilience and reliability contributes significantly to the overall cost, making a rugged keyboard a worthwhile investment for operational continuity in challenging settings.

    Rugged Limited specialises in providing industrial peripherals that are engineered to withstand harsh conditions, making a rugged keyboard an ideal companion for industrial PCs. These keyboards are built to offer durability and consistent functionality in environments where standard office equipment would quickly fail.

    Our rugged keyboards are developed for high compatibility and robust performance, ensuring they can stand up to the demands of various industrial settings. They are designed to prevent contamination from dust, dirt, and liquids, which are common in many industrial applications. Some models also feature backlight options, crucial for low-light conditions often found in industrial environments, and integrated pointing devices to streamline operations.

    The construction and features of a rugged keyboard from Rugged Limited are perfectly matched to the operational requirements of industrial PCs, providing a reliable and long-lasting input solution.

    Rugged keyboards are designed for durability and consistent operation in demanding conditions, and their connection types reflect this need for reliability. The primary connection type used for Rugged Limited’s range of rugged keyboards is USB.

    USB connections offer several advantages for industrial and harsh environments, including broad compatibility, ease of use, and a secure physical connection that can withstand vibrations and impact. This ensures that the rugged keyboard maintains a stable link to the host system, critical for uninterrupted data entry and control in sectors such as manufacturing, logistics, and marine applications.

    Choosing a rugged keyboard over a consumer keyboard is essential in environments where standard equipment simply won’t withstand the conditions. Rugged keyboards are specifically engineered to endure extreme temperatures, dust, dirt, liquids, and vibrations, which are common challenges in industrial, medical, and military settings.

    Unlike consumer keyboards, which are designed for typical office use, a rugged keyboard features robust construction, often incorporating sealed components and durable materials like stainless steel or silicone. This enhanced build quality prevents ingress of contaminants and protects internal electronics, ensuring reliable performance and a significantly longer lifespan.

    Furthermore, Rugged Limited’s range of rugged keyboards are built for reliability in the harshest conditions, minimising downtime and maintenance costs often associated with frequent replacement of less durable alternatives.

    iKey is a US manufacturer that specialises exclusively in rugged input devices: sealed keyboards, keypads and pointing devices built for harsh and mission-critical environments. Rather than spreading across many product types, iKey concentrates on industrial-grade human interface hardware, which is reflected in its deep catalogue of desktop, panel mount, mobile mount, rackmount and OEM keyboards. Its products are engineered around sealed silicone rubber keys, reinforced housings and certifications such as IP66, NEMA 4X and MIL-STD-810G. This focus makes iKey a recognised choice for defence, emergency services, industrial manufacturing, marine and offshore, oil and gas, and other sectors where standard keyboards quickly fail.

    iKey ruggedises its keyboards through sealed construction and durable materials rather than added covers. Keys use industrial silicone rubber with a dust-sealed overlay, giving tactile mechanical-snap feedback and a rated life exceeding 10 million actuations. Housings are typically ABS polycarbonate or stainless steel for impact and corrosion resistance. Many models are sealed to IP65, IP66, IP67 or IP68 and meet NEMA 4X for protection against dust and liquid ingress. iKey keyboards are also tested to MIL-STD-810G for shock and vibration, with models such as the SL-86-911 withstanding 50g shock pulses and operating across wide temperature ranges. This combination supports continuous-duty use in vehicles, control rooms and industrial settings.

    iKey is known for sealed, industrial-grade rugged keyboards and pointing devices designed to keep working where consumer hardware fails. Its reputation rests on durable silicone rubber keys rated beyond 10 million actuations, sealed ABS polycarbonate and stainless steel housings, and certifications including IP66, NEMA 4X and MIL-STD-810G for shock and vibration. iKey is also recognised for its breadth: desktop, panel mount, mobile mount, rackmount, wearable and OEM formats, with options for backlighting, integrated pointing devices and hazardous-area protection. This makes the brand a frequent specification in defence, emergency services, industrial manufacturing, oil and gas, marine and offshore, and similar demanding sectors.

    Yes. iKey produces dedicated keyboards for hazardous and explosive atmospheres. The BT-870-TP-EX2, for example, is rated for ATEX Zone 2 and 22 use, sealed to IP67 and NEMA 4X, and tested to MIL-STD-810G. iKey also offers intrinsically safe (IS) models such as the DT-1000-IS, which uses a stainless steel enclosure, optical isolation and separate bulkhead cables and is certified for Factory Mutual Class I, II and III hazardous zones, along with non-incendive (NI) variants. These options suit oil and gas, offshore operations, chemical, pharmaceutical and mining environments. Always confirm the specific certification on the chosen model, as ratings differ between IS, NI and ATEX variants.

    Yes. iKey offers an extensive range of backlit rugged keyboards, identifiable by SLK and SLP model families, with backlighting integrated beneath the sealed silicone overlay rather than added externally. Standard backlighting is typically red, and some models such as the SLK-101-8L provide multiple adjustable lighting levels. For night-vision operations, iKey produces NVIS-compatible green backlit models, including the AK-39-NV wearable keyboard, which combines a green NVIS backlight with several adjustable brightness levels. Backlit options span desktop, panel mount, mobile mount and OEM formats, making iKey well suited to low-light control rooms, vehicle cabs, defence and emergency-services deployments where key visibility is essential without compromising the sealed, rugged design.

    Yes. iKey has substantial OEM and custom capability and maintains a dedicated OEM range covering panel mount keyboards, keypads and trackballs. Many standard products are also available in OEM versions for integration into larger systems and enclosures. Customisation options recorded across the catalogue include keyboard and keypad layout, language, backlight colour, cable type and length, interface, custom logo, and epoxy or PU key coatings. iKey also produces device-specific snap-on keyboards, such as the IK-PAN-FZG1 series that latches directly onto Panasonic FZG1 tablets, and the IK-SAM-AT for Samsung. This flexibility makes iKey a practical partner for integrators and manufacturers needing input hardware tailored to a specific platform or application.

    iKey builds its keyboards from materials chosen for sealing, durability and environment. Most housings use ABS polycarbonate for impact resistance and dust sealing, while models intended for corrosive, wash-down or hazardous settings, such as the DT-102-SS and DT-1000-IS, use stainless steel enclosures. Keys are made from industrial silicone rubber with a dust-sealed overlay, providing tactile mechanical-snap feedback and a rated life exceeding 10 million actuations. Some snap-on models use magnesium alloy housings with carbon-contact key technology. iKey also offers optional epoxy or PU key coatings for additional wear resistance. These material choices underpin the brand’s IP66, NEMA 4X and MIL-STD-810G performance across continuous-duty deployments.

    A buyer chooses iKey when a standard keyboard would not survive the environment or the duty cycle. iKey keyboards are sealed against dust and liquids to ratings such as IP66, IP67 and IP68 with NEMA 4X, tested to MIL-STD-810G for shock and vibration, and built with silicone rubber keys rated beyond 10 million actuations. The range covers specialist needs that consumer hardware cannot meet: ATEX and intrinsically safe hazardous-area models, NVIS green night-vision backlighting, wide operating temperatures, and integrated pointing devices such as HulaPoint, FSR, touchpad or trackball. With desktop, panel mount, mobile mount, rackmount and OEM formats plus extensive customisation, iKey gives engineers a single, durable input solution for defence, industrial, marine and emergency-services use.
