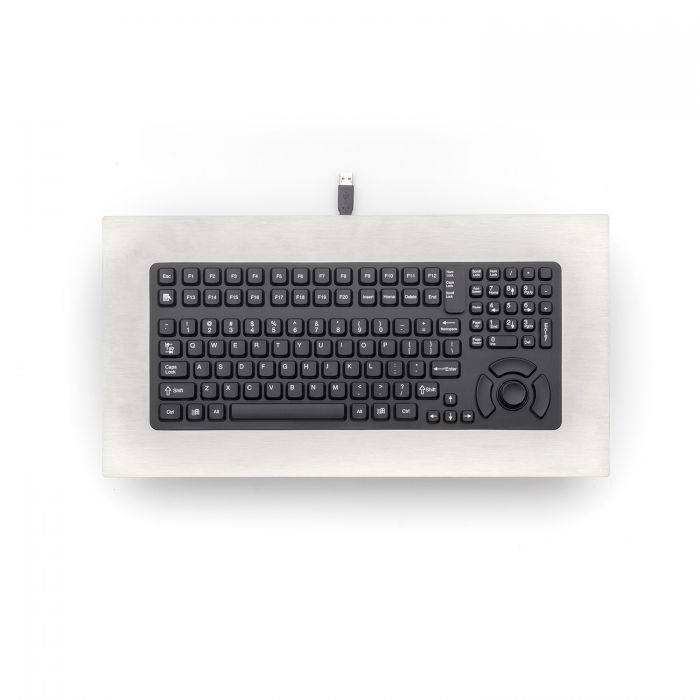

PM-5K iKey Keyboard
iKey manufactures devices to reduce risk of failure in your hazardous areas. The intrinsically safe PM-5K-IS keyboard features an integrated HulaPointTM pointing device and comes enclosed in non-corrosive stainless steel with optical isolated barriers and bulkhead cables for complete protection. PM-5K-IS keyboard has a Factory Mutual approval for Class I, II and III, Division I, Groups C, D, E, F and G.
PM-5K Features
- Intrinsically Safe
- Integrated Pointing Device
- 10-Key Numeric Pad
- PS2 Configurations Available
- Various Keyboard and Language Layout Options
- Customisation Available On Request
Request for Quote (RFQ)
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
United States
Backlight
No Backlight
Case Material
No Case
Certifications
IP Rated, NEMA 4X; UL60950, FCC Part 15 Class B Factory Mutual Class I, II, & III, Division I, Groups C, D, E, F & G
Custom Options Products
Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface
Dimensions
17.70" x 9.20" x 1.58" (w-h-d) 449.6mm x 233.7mm x 40.1mm
Humidity
100% Humidity Resistant (when properly installed)
Cable
LENGTH: 5 feet from keyboard to Bulkhead Connector DESIGN: 2 cables (providing separate keyboard and mouse connections)
Compatibility
PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys
24 Keys
Key Feedback
Tactile with Mechanical Snap
Key Material
Industrial Silicone Rubber
Key Switch
MATERIAL: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Lifespan
>10 Million Actuations
No. Of Keys
116
Pointing Device
HulaPoint
Power
Reference Drawing Number IS-97107 for Power Requirements; Installation should be in accordance w/ NEC, Article 504, ANSI, NFPA 70
Product Weight
6.75 lbs +/- 0.10 lbs (3.06 kg +/- 0.05 kg)
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Switch Force
200g (+/- 30g)
Switch / Key Travel
0.055 in (1.4mm)
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Temperature Rating
STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)
The PM-5K iKey Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PM-5K is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the PM-5K iKey Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard fits your specific needs, please contact us.
The PM-5K iKey Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, PM-5K iKey Keyboard, must be presented to RUGGED in the United Kingdom.
For more information about the PM-5K iKey Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the PM-5K iKey Keyboard or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey PM-5K or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
