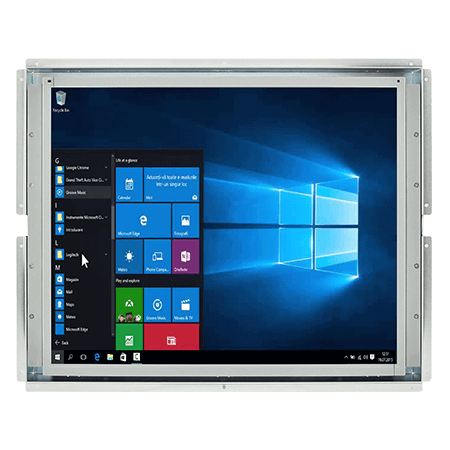

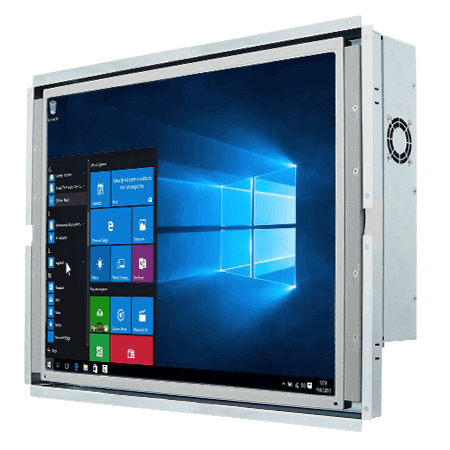

Winmate R17IAD7T-OFM1 17 Inch Open Frame Panel PC
For teams working across industrial and embedded system integration, the Winmate R17IAD7T-OFM1 17 Inch Open Frame Panel PC offers a reinforced metal housing with dust-sealed durability for versatile deployment. Its open frame design supports flexible mounting options such as kiosks and automation equipment, making it suitable for constrained installation spaces. Powered by Intel Alder Lake S-series processors, this panel PC delivers reliable computing performance capable of supporting demanding industrial applications.
The display supports optional resistive touch screen or protective glass variants, offering adaptability without sacrificing durability. Efficient thermal management is maintained by a fan-cooled system designed for continuous operation within typical industrial temperature ranges of 0°C to 50°C. Connectivity includes dual 2.5 Gigabit Ethernet ports for high-speed networking and multiple USB 3.2 Gen2 ports alongside serial interfaces, allowing seamless integration with existing infrastructure. Security features include TPM 2.0, and the system meets CE and FCC standards, underpinning its suitability for industrial-grade deployments.
R17IAD7T-OFM1 Features
- 17” 1280 x 1024 Resolution Open Frame PC
- 12th Gen Intel® Core™ Alder Lake S i9 / i7/ i5 / i3 processor
- 2 x SODIMM, DDR5 4800MHz, support up to 64GB (Max. 32GB for each slot)
- Integrated Dual 2.5 Gigabit Ethernet
- Multi display supports DP 1.4a / HDMI 2.0b (Optional)
- Multiple I/Os, 4 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
17.0 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1280x1024
Panel Brightness
350.0 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Active Area
337.920x270.336 mm
Processor
Intel® Core™ i5-12500TE(up to 4.3GHz) Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional) Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional) Intel® Core™ i3-12100TE(up to 4.00GHz) (Optional)
Chipset
Intel® R680E
Memory
2 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional) 64GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 2 x SATA III for 2.5" SSD/HDD (Only R680E/Q670E version support)(RAID support) (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
410 x 329 x 83 mm
Weight
4.5 kg
Mounting
Open frame Panel mount (Optional) VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fan Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
4 x USB 3.2 Gen2x1 (10Gbps- TypeA) (R680E/Q670E version) 4 x USB 3.2 Gen1x1 (5Gbps- TypeA) (H610E version)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x DP1.4a DP++ - Max resolution up to 4096x2160@60Hz 1 x HDMI 2.0b - Max resolution up to 4096x2160@60Hz (Optional)
Audio
Mic in Line out
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module)
Power Input
1 x 12V DC- Din4 pin connector
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 220W"
The Winmate R17IAD7T-OFM1 17 Inch Open Frame Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R17IAD7T-OFM1 supports a wide range of industries and operational applications.
Common deployment industries include: Education, Industrial Manufacturing, Logistics And Supply Chain, Retail, Security And Surveillance.
Across these sectors, the R17IAD7T-OFM1 is typically used in applications such as Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Process Control And Shop-Floor Monitoring, Warehouse Picking And Put-Away, Yard, Dock, And Gatehouse Management.
These examples demonstrate the versatility of the R17IAD7T-OFM1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R17IAD7T-OFM1 is appropriate for your specific application, please contact us.
The Winmate R17IAD7T-OFM1 17 Inch Open Frame Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R17IAD7T-OFM1 17 Inch Open Frame Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R17IAD7T-OFM1 17 Inch Open Frame Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R17IAD7T-OFM1 17 Inch Open Frame Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R17IAD7T-OFM1 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
