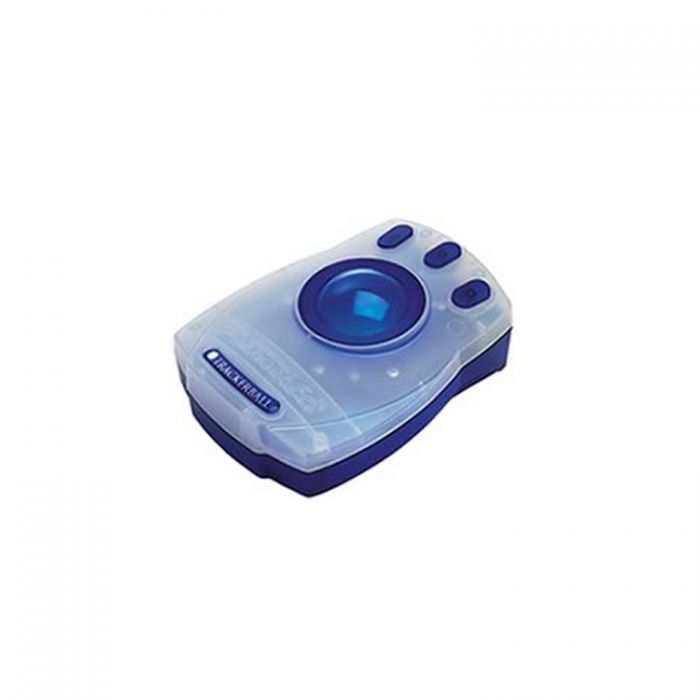

R60-Backlit Cursor Controls Trackball
The R60 is a professional desk top trackballs and is designed for comfort over prolonged periods of use. Constructed from toughened moulded plastic and featuring robust mechanics, it is ideally suited for use where reliability and an extensive live span are prerequisites. Each R60 Backlit trackball is carefully assembled using the highest quality components and a superior build process. Stainless steel shafts and precisely engineered steel bearings support a 60mm diameter high-mass ball to provide you with smooth running and precise operation – you can feel the difference! Research indicates that a Trackerball can be less stressful on the user than other cursor control systems. The large ball design, low tracking force and easy to use buttons, featured on the R60 provide the user with an effective means of cursor control with a minimum of stress.
R60-Backlit Features
- Backlit Functionality
- Large 60mm Ball For Precise Cursor Movement
- Smart Button - Lock & Drag Feature
- Ultra Smooth Operation
- Precision Pixel Stepping
- Robust and Durable Mechanism
- Vx3 Integrated Zoom Feature
Request for Quote (RFQ)
Product Type
Format
Manufacturer
Country Of Manufacture
United Kingdom
Case Material
ABS Polycarbonate
Certifications
CE, RoHS compliant
Custom Options Products
Cable Type,Cable Length,Interface,Trackball Colour,Backlight Colour
Housing Colour
Black
Humidity
30% min, 95% max, non-condensing
Lifetime
>10 million ball revolutions
Storage Temperature
Storage Temperature -25C to + 85 C
Temperature Rating
Operating Temperature 0C to +70C
Storage Temperature -25C to +85 C
Ball
Thermoset Phenolic or Polyester, 63mm
Ball Load
200N Maximum downward pressure (20Kg) @ 20C
Ball Rotation
Continuous and reversible in any direction
Ball Speed
200 RPM maximum
Housing Material
ABS
Mounting Filter
Rear Mount
Mounting Position
Horizontal to 30
Power
Supply Voltage 5 V DC +/- 5%
Supply Current Protocol format 10ma typical
Optional Backlight +5 V DC, 100ma
Resolution
440 pulses per ball revolution (other options available upon request)
Tracking Force
15gms Nominal continuous no seal (IP40)
Transducers
Photo-optical encoders with LEDS
The R60-Backlit Cursor Controls Trackball is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R60-Backlit is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the R60-Backlit Cursor Controls Trackball across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Trackball fits your specific needs, please contact us.
The R60-Backlit Cursor Controls Trackball comes with a 18 Month Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, R60-Backlit Cursor Controls Trackball, must be presented to RUGGED in the United Kingdom.
For more information about the R60-Backlit Cursor Controls Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the R60-Backlit Cursor Controls Trackball or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Cursor Controls R60-Backlit or need a custom Trackball solution designed specifically for you, our team of technical experts are ready to assist you.
