RUGGED RKB-A228-TP-FN-DT Industrial Rugged Keyboard

  • IP67 RATED
  • IP65 RATED
  • VANDAL RESISTANT
  • TOUCHPAD
  • WIDE TEMPERATURE
  • WINDOWS OS
  • CUSTOMISABLE
  • SHOCK

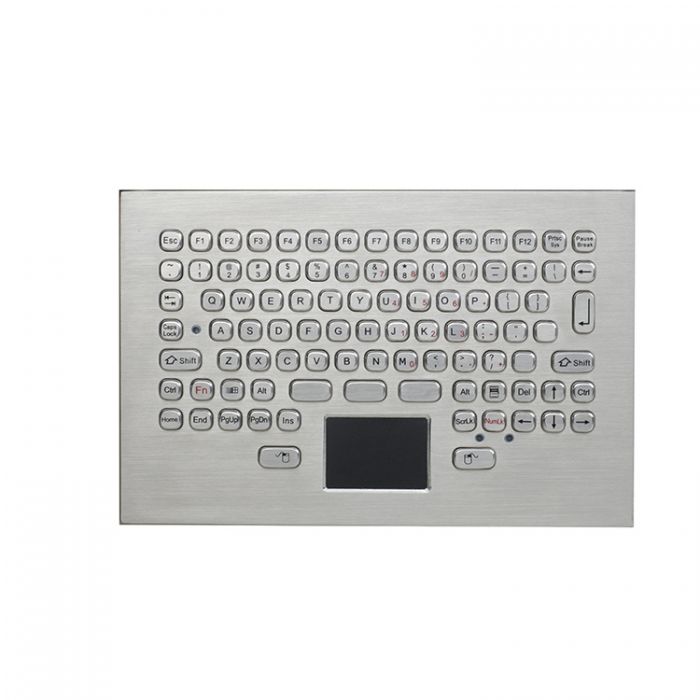

Designed for industrial environments, the RUGGED RKB-A228-TP-FN-DT Industrial Rugged Keyboard delivers a corrosion-resistant, compact input solution. Its stainless steel housing withstands dust, moisture, and physical impact, maintaining reliability in demanding settings. Featuring carbon-on-gold key switches and a vibration-tolerant layout, the keyboard offers tactile, noise-minimised keystrokes suited to continuous-duty operations. The integrated touchpad is sealed against dust and moisture, ensuring effective cursor control without compromising durability. It supports flexible deployment as either a standalone desktop unit or a mounted device, adapting to specific operational needs.

This IP65-rated keyboard operates from -20°C to +60°C and complies with IEC 61000 electromagnetic compatibility standards, assuring robust performance amid industrial electrical interference. With a robust MTBF exceeding 50,000 hours and certifications including RoHS, CE, and FCC, the RKB-A228-TP-FN-DT is engineered for extended use in rigorous field or factory environments.

RKB-A228-TP-FN-DT Features

  • Rugged Desktop Keyboard
  • Integrated Touchpad
  • Stainless Steel Construction

Request a Quote

Product Type

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE and FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

120.0mm x 98.0mm

Housing Colour

Stainless Steel

Compatibility

All Windows Operating Systems

EMC

IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Super Quality Sus304 Brushed Stainless Steel

Key Material

Carbon-on-Gold

Lifespan

> 5 years

Material (Bottom Plate)

Super Quality Sus304 Stainless Steel

MTBF

>50000H

MTTR

<30min

No. Of Keys

16

Operating Force

0.60N +/-0.10N (pressure point), 1.20 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Touchpad

Power

+5V DC +/-5%

Supply Current

20mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Length

120.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C - Storage temperature: -30C to +70C

Width

98.0mm

The RUGGED RKB-A228-TP-FN-DT Industrial Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-A228-TP-FN-DT supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Public Sector, Warehousing.

Across these sectors, the RKB-A228-TP-FN-DT is typically used in applications such as Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, Secure Access, Authentication, And Control Terminals, Warehouse Picking And Put-Away.

These examples demonstrate the versatility of the RKB-A228-TP-FN-DT across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-A228-TP-FN-DT is appropriate for your specific application, please contact us.

The RUGGED RKB-A228-TP-FN-DT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-A228-TP-FN-DT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-A228-TP-FN-DT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-A228-TP-FN-DT Industrial Rugged Keyboard, or would you like to discuss a customised solution?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-A228-TP-FN-DT or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
