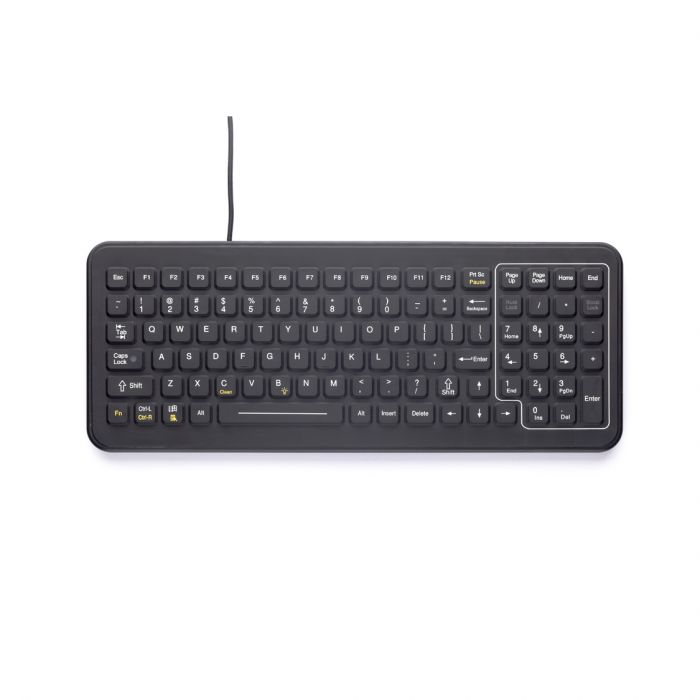

iKey SB-101 Slim Profile Compact Rugged Keyboard

For teams working across industrial and mobile environments, the iKey SB-101 Slim Profile Compact Rugged Keyboard offers a rugged input solution with a depth under 16mm, ideal for tight workstations, vehicles, and control panels. Its fully sealed polycarbonate shell is rated NEMA 4X and IP65, providing resistance against dust, liquids, and contaminants common in field or industrial use. The tactile rubber keypad is made from industrial-grade silicone rubber, designed for over 10 million keystrokes to ensure long life and consistent mechanical snap feedback.

Performance is reliable across a wide temperature range from -40 C to +70 C, suitable for cold storage or high-heat facilities. The keyboard withstands shock pulses of 50g and vibration frequencies from 20Hz to 2kHz, reinforcing its durability under continuous-duty conditions. Additional features include a QuickLock function to disable inputs during cleaning cycles, supporting hygiene protocols. USB connectivity ensures compatibility with Windows and Mac systems, while the compact 379.5 x 149.6 x 15.2mm design fits seamlessly into confined spaces without sacrificing functionality.

SB-101 Features

  • Quicklock Key
  • Red LED Backlighting
  • Ultra-Thin Design
  • Meets NEMA 4X (IP65) Specifications
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

NEMA 4X, IP65, UL90650, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.94" x 5.89" x 0.60" (w-h-d) 379.5mm x 149.6mm x 15.2mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 10' straight (3 m) Single-Cable USB

Compatibility

USB KEYBOARD: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: industrial silicone rubber LIFE: greater than 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

101

Pointing Device

No Pointer

Power

KEYBOARD: 200mA @ 5V (from CPU port)

Product Weight

1.2 lbs +/- 0.10lbs (0.54 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Length

88.0mm

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

Width

88.0mm

The iKey SB-101 Slim Profile Compact Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The SB-101 supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Energy and Utilities, Food And Beverage Processing, Healthcare And Medical, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Rail And Transport.

Across these sectors, the SB-101 is typically used in applications such as Forklift And Materials-Handling Terminals, Health, Safety, And Compliance Inspections, Inventory Management And Stock Control, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the SB-101 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SB-101 is appropriate for your specific application, please contact us.

The iKey SB-101 Slim Profile Compact Rugged Keyboard comes with a 3 Years Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SB-101 Slim Profile Compact Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SB-101 Slim Profile Compact Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SB-101 Slim Profile Compact Rugged Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SB-101 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
