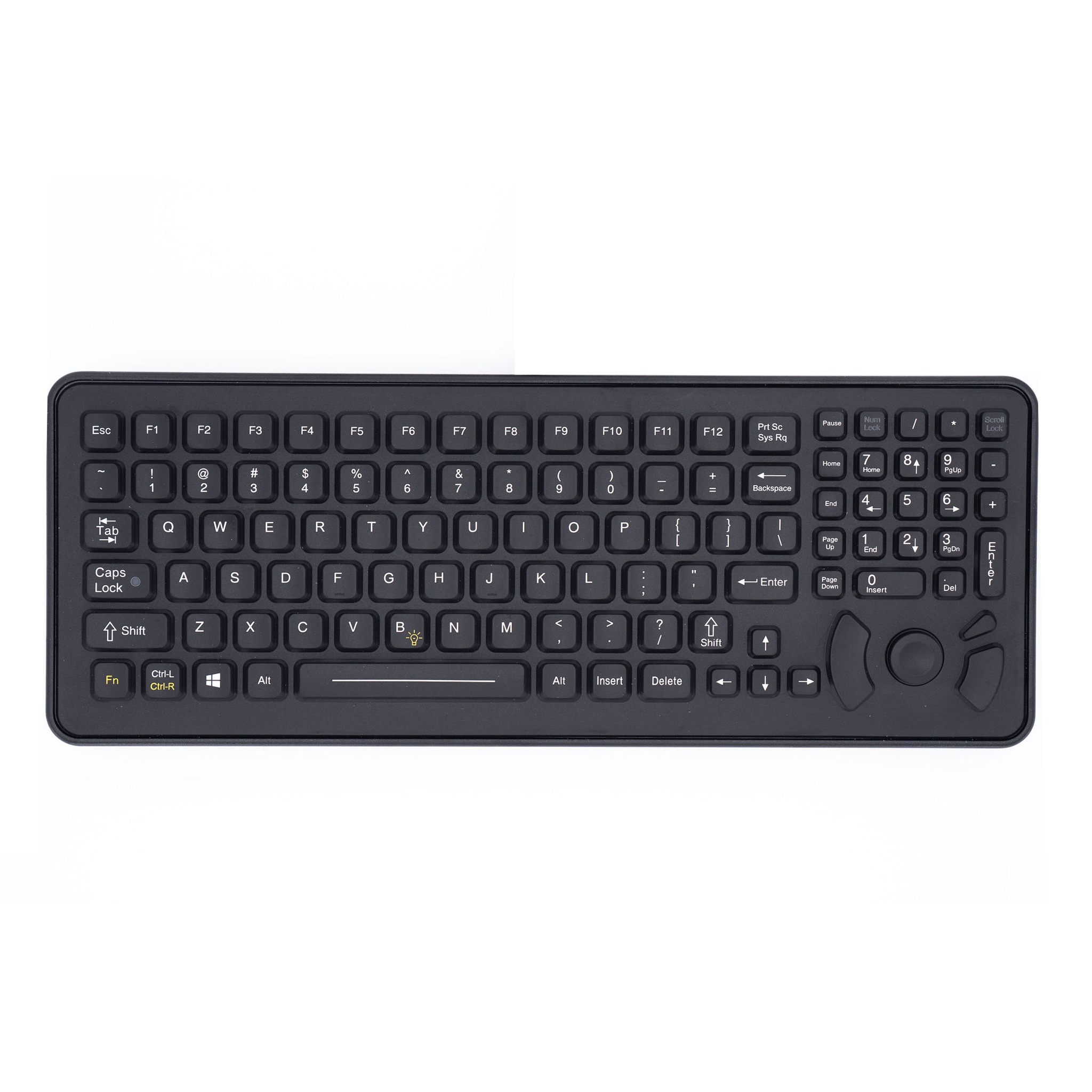

iKey SLK-102-M-FSR Backlit Mobile Mount Rugged Keyboard

The iKey SLK-102-M-FSR Backlit Mobile Mount Rugged Keyboard is built around a Force Sensing Resistor, supporting field and industrial use where visibility and durability matter. It features red LED backlit keys for clear input in low-light environments and an ABS polycarbonate housing rated to NEMA 4X standards, delivering dust and weather resistance suitable for continuous-duty applications. The keyboard is designed for mobile mounting, combining tactile mechanical snap keys with a robust silicone rubber overlay built to exceed 10 million actuations. It meets MIL-STD-810G shock and vibration standards and operates reliably across a wide temperature range, from -40°C to +70°C. Certification compliance includes UL60950 and FCC Part 15 Class B, ensuring safe and stable operation.

With USB connectivity and 88 keys, this black keyboard integrates into varied industrial, medical, and material handling systems while providing precision, visibility, and resilience for demanding deployment scenarios.

SLK-102-M-FSR Features

  • Integrated LED Backlighting
  • Ms Windows Function Keys
  • Integrated Force Sensing Resistor
  • USB and PS2 Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.74" x 5.69" x 1.64" (w-h-d) 374.4mm x 144.5mm x 41.7mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

Single-Cable USB

Compatibility

All Windows and Macintosh Operating Systems

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

88

Pointing Device

Force Sensing Resistor

Power

PS/2: KEYBOARD: 210mA@5V (from Keyboard port) HULAPOINT: 35mA@5V (from Mouse port) USB: 245mA@5V (from CPU port)

Product Weight

2 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SLK-102-M-FSR Backlit Mobile Mount Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The SLK-102-M-FSR supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Energy and Utilities, Food And Beverage Processing, Healthcare And Medical, Industrial Manufacturing, Logistics And Supply Chain, Warehousing.

Across these sectors, the SLK-102-M-FSR is typically used in applications such as Forklift And Materials-Handling Terminals, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Medical Carts And Clinical Mobile Workstations, Mobile Workforce Operations, Proof Of Delivery And Last-Mile Logistics, Quality Control And Inspection, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the SLK-102-M-FSR across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SLK-102-M-FSR is appropriate for your specific application, please contact us.

The iKey SLK-102-M-FSR Backlit Mobile Mount Rugged Keyboard comes with a 3 Years Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLK-102-M-FSR Backlit Mobile Mount Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLK-102-M-FSR Backlit Mobile Mount Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLK-102-M-FSR Backlit Mobile Mount Rugged Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SLK-102-M-FSR or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • NEMA 4X sealed housing
    • Force Sensing Resistor pointing device
    • Over 10 million keystroke lifespan
    • MIL-STD shock and vibration tested
    iKey SL-86-911-FSR

    IK-PAN-FZG1-NB-C1

    • Aluminium housing and silicone keys
    • MIL-STD-810G shock and vibration certified
    • Backlit keys for low-light use
    • Sealed and dust-resistant design

    SLK-102-461-FSR

    • Sealed NEMA 4X ABS polycarbonate enclosure
    • Over 10 million key actuations with silicone rubber overlay
    • MIL-STD-461 electromagnetic interference compliant
    • Shock and vibration tested to 50g pulses
    • Sealed steel construction with epoxy coating
    • Silicone rubber keys rated for 10 million actuations
    • NEMA 12 dust and humidity protection
    • Shock and vibration resistant for industrial use
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    While the primary design focus for a rugged keyboard is to withstand extreme conditions and provide reliable functionality in challenging environments, some models do incorporate ergonomic considerations. These can include features like appropriately spaced keys to reduce typing strain or a comfortable angle for prolonged use.

    However, it’s important to note that a rugged keyboard prioritises resistance to factors such as dust, water, vibrations, and extreme temperatures. Therefore, while basic ergonomic elements may be present to ensure user comfort during operation, they generally won’t offer the same advanced ergonomic designs found in specialised office keyboards. This balance ensures the rugged keyboard performs reliably in demanding settings.

    Rugged Limited specialises in providing industrial peripherals built to withstand harsh conditions, including marine settings. Our rugged keyboards are engineered with features like IP (Ingress Protection) ratings, which are crucial for protecting against water and other liquids commonly found in marine applications. This ensures that the keyboard can endure exposure to moisture, salt spray, and even submersion, depending on the specific IP rating.

    Furthermore, the materials used in our rugged keyboard manufacturing are selected for their durability and resistance to corrosion, which is a significant factor in saltwater environments. This robust construction guarantees reliable operation and a long lifespan, reducing downtime and maintenance in challenging marine conditions.

    Rugged Limited understands the importance of versatility in industrial and demanding environments. That’s why our range of rugged keyboards is designed to accommodate global users by supporting multiple language layouts. This means that whether you require a keyboard with a UK, US, German, French, or another specific language layout, Rugged Limited can provide a solution tailored to your operational requirements.

    This adaptability in language options ensures that users worldwide can operate our durable keyboards efficiently and comfortably, without compromising on the ruggedness and reliability that our products are known for. When sourcing a rugged keyboard, it’s important to specify your language layout needs to ensure the best fit for your application.

    Rugged Limited understands the importance of durability in demanding environments, which is why our rugged keyboards are often built with chemical resistance in mind. This feature is crucial for industries where keyboards are regularly exposed to harsh cleaning agents, disinfectants, or other industrial fluids.

    Our rugged keyboards are frequently constructed from materials and with designs that prevent the ingress of liquids and corrosive substances, ensuring continued functionality and longevity. This chemical resistance contributes to the overall robustness and reliability of the keyboard, making it suitable for sectors such as healthcare, manufacturing, and food processing, where hygiene and exposure to various chemicals are common.

    The ability of a rugged keyboard to withstand such exposure means less downtime for cleaning and maintenance, and a longer operational lifespan, providing excellent value for our customers.

    Rugged Limited’s rugged keyboard range is engineered from high-quality, durable materials designed to withstand harsh operating conditions. These materials commonly include silicone, which offers excellent resistance to liquids and dust, making them easy to clean and sanitise. Many models also feature stainless steel for their casings or keycaps, providing superior strength against impacts and corrosion, ideal for industrial or public use.

    Furthermore, industrial-grade ABS plastic is often utilised for its robust and lightweight properties, contributing to the overall resilience of the rugged keyboard. The choice of these materials ensures that our keyboards can endure extreme temperatures, vibrations, and constant use without compromising performance or longevity.

    Rugged Limited offers a range of keyboards specifically engineered to withstand harsh environments, and a key feature for many of these is their dust-proof design. Our Rugged Keyboards are built to IP (Ingress Protection) standards, which indicate their level of resistance to solids like dust.

    For instance, some models boast an IP65 rating, meaning they are completely protected against dust ingress. This makes them an excellent choice for industries where dust and debris are common, ensuring consistent functionality and a longer lifespan. When you choose a Rugged Limited product, you’re investing in a durable solution, and many of our keyboards provide a dependable dustproof rugged keyboard option for demanding applications.

    The rigorous demands of medical environments necessitate equipment that can withstand constant use, frequent cleaning, and potential exposure to contaminants. Rugged Limited specifically designs and manufactures rugged keyboard solutions that meet these stringent requirements, making them ideal for healthcare settings.

    Key features that make a rugged keyboard suitable for medical use include:

    • Sealed Construction: Our keyboards are typically sealed to IP ratings such as IP65, IP67, or even IP68, meaning they are completely protected against dust ingress and can withstand liquid spills, making them easy to disinfect thoroughly without damaging internal components.
    • Antimicrobial Materials: Many models incorporate antimicrobial additives in their construction, inhibiting the growth of bacteria and viruses, which is crucial for infection control in hospitals and clinics.
    • Easy to Clean: The smooth surfaces and lack of crevices on a rugged keyboard prevent the accumulation of dirt and germs, allowing for quick and effective cleaning with medical-grade disinfectants.
    • Durability: Built to last, these keyboards can endure the high-traffic and demanding conditions of a medical facility, reducing downtime and replacement costs.
    • Customisation Options: Rugged Limited offers various layouts and mounting options to seamlessly integrate with existing medical carts, workstations, and equipment.

    By providing a reliable and hygienic input solution, a rugged keyboard from Rugged Limited contributes significantly to maintaining sterile environments and enhancing efficiency in medical applications.

    Rugged Limited specialises in providing industrial-grade solutions engineered for extreme conditions, and a

    Rugged Keyboard

    is built with longevity in mind. Keyboards from Rugged Limited are designed to withstand challenging environments, including exposure to dust, dirt, liquids, and extreme temperatures, which significantly contributes to their extended operational life compared to standard consumer keyboards. Many models feature high ingress protection (IP) ratings, indicating their resistance to environmental factors. For example, some keyboards come with IP65 or even IP67 ratings, signifying protection against dust ingress and submersion in water up to 1 meter for 30 minutes, respectively.

    These robust construction methods and high-quality materials mean that a

    Rugged Keyboard

    is a reliable investment, reducing the need for frequent replacements and minimising downtime in critical operations. To explore the full range and specifications of our durable input solutions, you can visit our rugged keyboards page.
