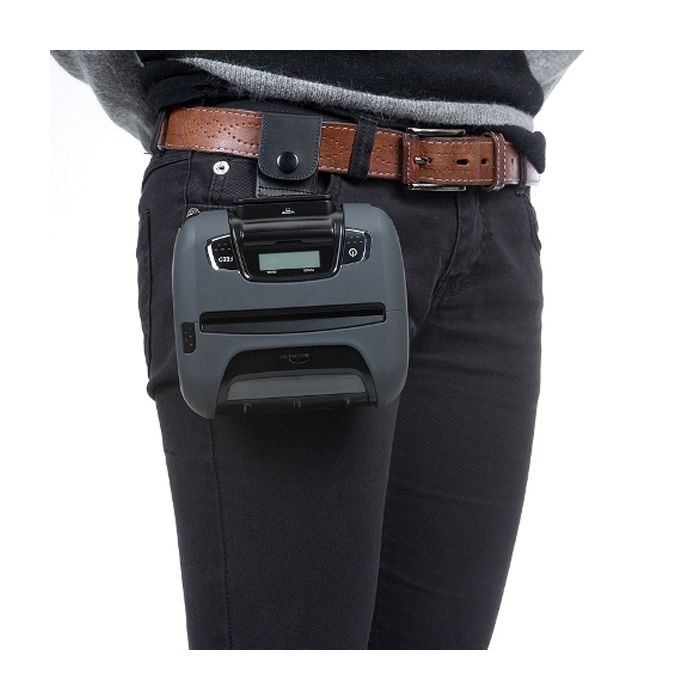

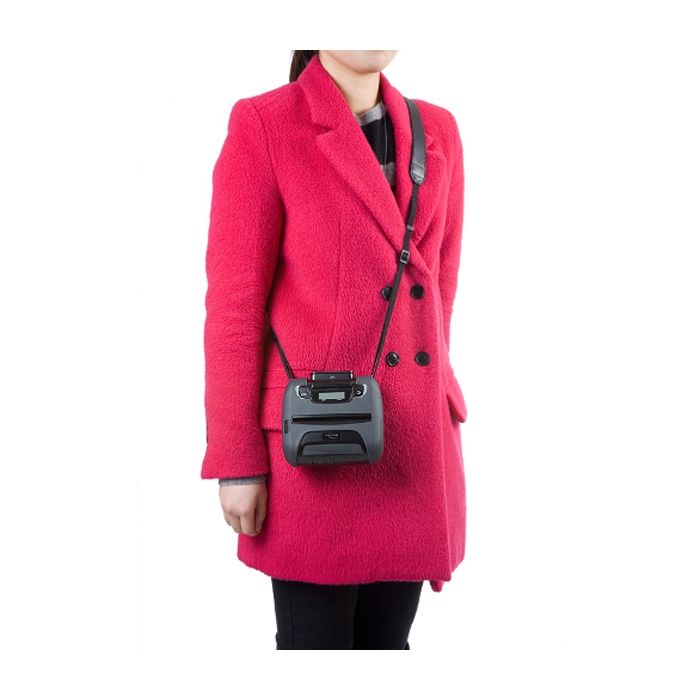

Woosim Systems WSP-i450 Rugged Printer

The Woosim Systems WSP-i450 Rugged Printer is built around its impact-resistant casing and IP54 certification, supporting reliable printing in demanding industrial and field environments. Its design caters to operations exposed to dust, moisture, and physical shocks, featuring MIL-STD-810 drop resistance up to 1.8 metres and operating temperatures spanning -10°C to +50°C.

Suitable for outdoor and mobile receipting tasks, it delivers thermal printing at 203 dpi and speeds of up to 70mm per second, with an easy-to-load clamshell system and advanced media sensors ensuring consistent performance. Connectivity options include RS-232C, Bluetooth, USB, and optional WiFi, allowing flexible integration with various mobile platforms. The WSP-i450’s high-capacity Li-ion battery supports up to one hour of continuous printing per charge and recharges fully within four hours, optimising field usability. An ISO 7816-compliant smart card reader adds security for regulated deployments. The blue-backlit LCD provides clear visibility of operation status, rounding out a deployment-ready build focused on durability and ease of use in industrial settings.

WSP-i450 Features

  • Durable Rugged Design
  • Water & Dust Resistant Construction
  • Compact Size & Light-Weight
  • Fast Charging, Clip-In, Li-Ion Battery
  • Easy Paper Loading
  • Graphic LCD With Backlight
  • Ideal For Use With Smartphones, Tablets Or PDA
  • Dc 9~30V With Power Protection
  • Dc 9~30V With Power Protection

Request a Quote

Product Type

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Processor

Country Of Manufacture

South Korea

Case Material

Plastic

Certifications

RoHS Compliant, CE

Custom Options Products

Interface,Processor,Memory,Storage,Connections,Operating System

Dimensions

151 x 136 x 63mm

Housing Colour

Grey

Humidity

30 to 80%

Operating Temperature

Rating: Intel 6th Gen. Processor:
Rating: -20C ~ 55C
Rating: with 0.5 m/s airflow (Industrial Grade HDD )

Rating: Intel Atom Processor:
Rating: -10C ~ 55C (J1900)
Rating: -

Barcodes Supported

1D , 2D , CODABAR , Code 39 , Code128 , Code93 , DATA Matrix , EAN , I2/5 , JAN , KAN , Micro PDF417 , PDF417 , QR Code , UPC

Battery

7.4V DC Li-ion 1.8 or 2.2A h

Case Colour

Dark Grey

Character Size

9x24, 12x24, 16x24, 24x24 dots

Characters Per Line

92

Charger

Input: 100~240V AC 50~60Hz, Output:8.4V DC

Cutting System

Tear bar

Data Buffer

1M Bytes

Flow Control

Software - XON/XOFF (Hardware flow control not supported)

Full Recharge

4 hours, provides 1 hour continuous printing @ 25% duty cycle

Interfaces

RS-232C & Bluetooth, USB & WiFi (options)

LCD

128 x 32 dots FSTN (Blue LED Backlight)

MCBF Head

50 km

MCBF Mechanism

37,000,000 lines

Media

Thermal paper roll, Thermal label roll

Magnetic Stripe Reader

Tracks 1, 2 & 3

Paper Width

80mm

Print Width

4 inch (104mm), 832 dots

Printing Speed

70mm/second

Printing System

Direct Thermal, Clamshell Easy load

Resolution

203 dpi, 8 dots/mm

Roll Diameter

112mm

Roll Length

24m (Note *2)

Sensors

Head open, Paper out, Black mark

Smart Card Reader

ISO 7816 Compliant (EMV level 1 Certified) 2 SAM (Security Application Module)

Processor

Intel

Processor Type

Intel Core i5

Storage Temperature

Rating: -4F ~ 158F (-20C ~ 70C)

Temperature Rating

OPERATING: -10C to +50C

The Woosim Systems WSP-i450 Rugged Printer is designed and engineered for use in demanding environments where reliability, durability are essential. The WSP-i450 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Industrial Manufacturing, Logistics And Supply Chain, Retail, Warehousing.

Across these sectors, the WSP-i450 is typically used in applications such as Barcode And RFID Scanning, Fleet Management And Telematics, Inventory Management And Stock Control, Mobile Workforce Operations, Proof Of Delivery And Last-Mile Logistics, Route Planning And Navigation.

These examples demonstrate the versatility of the WSP-i450 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the WSP-i450 is appropriate for your specific application, please contact us.

The Woosim Systems WSP-i450 Rugged Printer comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Woosim Systems WSP-i450 Rugged Printer, must be presented to RUGGED in the United Kingdom.

For more information about the Woosim Systems WSP-i450 Rugged Printer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
