iKey BT-870-TP-SLIM Bluetooth Rugged Keyboard With Touchpad

Designed for industrial and mobile environments, the iKey BT-870-TP-SLIM Bluetooth Rugged Keyboard With Touchpad offers compact, reliable input with both wireless Bluetooth and wired USB connectivity. Its impact-resistant ABS polycarbonate housing and industrial silicone rubber keys meet IP67 and NEMA 4X ratings, ensuring dust and water resistance ideal for harsh field conditions. The keyboard supports continuous operation with red LED backlighting and includes an integrated touchpad for precision control in low-light or confined spaces.

It withstands MIL-STD-810G shock and vibration tests and operates across 0°C to 60°C, making it suitable for a wide range of industrial deployments. Mounting options like VESA and AMPS add flexibility for vehicle or fixed installation. This sealed keyboard resists corrosive agents and offers a key lifespan exceeding 10 million actuations, supporting long-term heavy-duty use in logistics, manufacturing, and medical fields.

BT-870-TP-SLIM Features

  • Dual Connectivity
  • Fully Sealed IP67 and NEMA 4X
  • Red LED Backlighting
  • Ultra Slim Profile

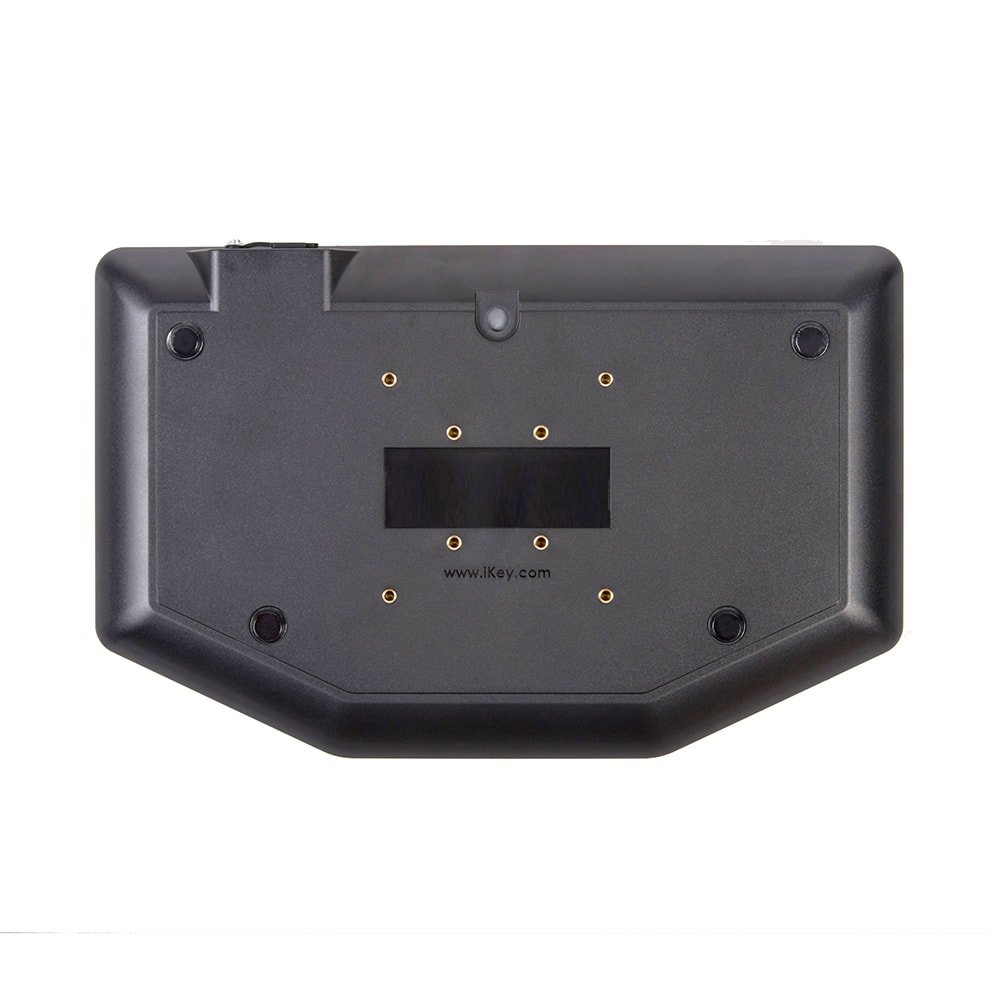

  • 75mm VESA and 1.188” x 1.5” AMPS mounting

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Interface

Country Of Manufacture

United Kingdom

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

CE, RoHS compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.193" x 7.098" x 0.850" (lwh)

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

A MicroUSB cable is included to recharge the keyboard and turn it into a wired USB keyboard when necessary.

Compatibility

USB: All Windows and Macintosh OS

Function Keys

10 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles Travel: 0.055in.

Lifespan

>10 Million Actuations

No. Of Keys

87

Pointing Device

Touchpad

Product Weight

1.56 lbs +/- 0.010 lbs

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY .04G/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40⁰F TO +149⁰F (-40⁰C to +65⁰C). OPERATING: 32⁰F to +140⁰F (0⁰C to +60⁰C)

The iKey BT-870-TP-SLIM Bluetooth Rugged Keyboard With Touchpad is designed and engineered for use in demanding environments where reliability, durability are essential. The BT-870-TP-SLIM supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Food And Beverage Processing, Healthcare And Medical, Industrial Manufacturing, Logistics And Supply Chain, Warehousing.

Across these sectors, the BT-870-TP-SLIM is typically used in applications such as Cold-Store And Freezer Operations, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Process Control And Shop-Floor Monitoring, Proof Of Delivery And Last-Mile Logistics, Vehicle-Mounted Computing (MDTs / VMCs), Warehouse Picking And Put-Away.

These examples demonstrate the versatility of the BT-870-TP-SLIM across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the BT-870-TP-SLIM is appropriate for your specific application, please contact us.

The iKey BT-870-TP-SLIM Bluetooth Rugged Keyboard With Touchpad comes with a 3 Year Rtb Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey BT-870-TP-SLIM Bluetooth Rugged Keyboard With Touchpad, must be presented to RUGGED in the United Kingdom.

For more information about the iKey BT-870-TP-SLIM Bluetooth Rugged Keyboard With Touchpad or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey BT-870-TP-SLIM Bluetooth Rugged Keyboard With Touchpad, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey BT-870-TP-SLIM or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • NEMA 4X sealed design
    • MIL-STD-461E electromagnetic compliance
    • Mechanical snap tactile keys
    • HulaPoint II integrated pointing device
    • NEMA 4X and IP68 sealed enclosure
    • MIL-STD-810G shock and vibration compliance
    • HulaPoint II integrated pointing device
    • Over 10 million keystroke lifespan
    • Intrinsically safe certification for hazardous zones
    • NEMA 4X sealed ABS polycarbonate housing
    • Force Sensing Resistor pointing device
    • Shock and vibration tested for field use
    DU-5K-FSR-IS, intrinsically safe keyboard
    • Reinforced CRS steel enclosure
    • Impact-resistant ball-bearing slides
    • Tactile mechanical snap keys with 10M+ actuations
    • Wide operating temperature range -40°C to +60°C
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    The rigorous demands of medical environments necessitate equipment that can withstand constant use, frequent cleaning, and potential exposure to contaminants. Rugged Limited specifically designs and manufactures rugged keyboard solutions that meet these stringent requirements, making them ideal for healthcare settings.

    Key features that make a rugged keyboard suitable for medical use include:

    • Sealed Construction: Our keyboards are typically sealed to IP ratings such as IP65, IP67, or even IP68, meaning they are completely protected against dust ingress and can withstand liquid spills, making them easy to disinfect thoroughly without damaging internal components.
    • Antimicrobial Materials: Many models incorporate antimicrobial additives in their construction, inhibiting the growth of bacteria and viruses, which is crucial for infection control in hospitals and clinics.
    • Easy to Clean: The smooth surfaces and lack of crevices on a rugged keyboard prevent the accumulation of dirt and germs, allowing for quick and effective cleaning with medical-grade disinfectants.
    • Durability: Built to last, these keyboards can endure the high-traffic and demanding conditions of a medical facility, reducing downtime and replacement costs.
    • Customisation Options: Rugged Limited offers various layouts and mounting options to seamlessly integrate with existing medical carts, workstations, and equipment.

    By providing a reliable and hygienic input solution, a rugged keyboard from Rugged Limited contributes significantly to maintaining sterile environments and enhancing efficiency in medical applications.

    An Ingress Protection (IP) rating is a critical standard for rugged keyboards, specifying the degree of protection provided against dust, dirt, and water. This two-digit code is internationally recognised and helps users understand how well a device can withstand environmental factors.

    The first digit in an IP rating signifies protection against solid objects, ranging from 0 (no protection) to 6 (dust-tight). A higher number here means greater resistance to particles entering the device.

    The second digit indicates protection against liquids, ranging from 0 (no protection) to 9 (withstanding high-pressure, high-temperature jet sprays). This is particularly important for a rugged keyboard that might be exposed to spills, rain, or even submersion. Rugged Limited offers a range of peripherals engineered to meet these demanding standards.

    Rugged Limited provides a range of rugged keyboards designed to withstand challenging industrial environments, including those found on forklifts and heavy machinery. These keyboards are built to be extremely durable, offering resistance to liquids, dust, and extreme temperatures, which are common conditions in such operational settings.

    The design of many rugged keyboard models includes features that facilitate easy integration into various industrial setups. This often involves robust casings and adaptable mounting solutions, ensuring a secure and stable fit even with vibrations or impacts inherent to machinery operation. Their resilience makes them a reliable interface for data entry and control in demanding applications. Rugged Limited’s extensive experience ensures these keyboards meet the rigorous demands of industrial use.

    Rugged keyboards are engineered to perform reliably in environments where conventional keyboards simply cannot, making them essential for a wide array of rugged keyboard applications. These durable input devices are frequently found in industrial settings, such as manufacturing plants and warehouses, where they endure dust, spills, and extreme temperatures. Their robust construction also makes them ideal for marine applications, including on ships and offshore platforms, where exposure to saltwater and vibrations is common.

    Beyond these, other rugged keyboard applications include use in public access kiosks, military and defence operations, and medical facilities. In these environments, features like sealed enclosures, chemical resistance, and the ability to withstand impact are crucial for continuous operation and data integrity. Rugged Limited provides keyboards specifically designed to meet these demanding requirements, ensuring seamless performance even in the most challenging conditions.

    Rugged Limited offers a variety of rugged keyboards, and many of these models come equipped with backlit keys. This feature is particularly beneficial for professionals operating in environments with challenging lighting conditions, such as during night shifts or in dimly lit industrial settings. The backlighting ensures that each key is clearly visible, thereby reducing errors and improving operational efficiency.

    Our selection of rugged keyboards includes options where the backlighting is a standard feature, designed to meet the demands of rigorous use. This ensures that regardless of the ambient light, the keyboard remains fully functional and easy to use, supporting continuous productivity.

    Rugged keyboards are specifically engineered to withstand harsh industrial, public, and mobile conditions. Their robust construction makes them ideal for environments where regular computer input devices would not be durable enough.

    These keyboards commonly feature designs that are fully sealed to protect against dust, dirt, and liquid ingress, often meeting IP (Ingress Protection) ratings. They are also built to resist vibrations, shocks, and extreme temperatures, ensuring reliable performance in challenging settings.

    Common applications for a rugged keyboard include factories, warehouses, marine vessels, and vehicles, as well as public access terminals and kiosks where durability and hygiene are critical. Many models are also designed for easy cleaning and disinfection, making them suitable for medical and food processing industries. For a comprehensive selection of these durable input solutions, explore the range of rugged keyboards available from Rugged Limited.

    Rugged Limited’s range of industrial keyboards are rigorously tested and certified to meet the demands of challenging environments. Our rugged keyboards are designed to withstand conditions that would compromise standard peripherals.

    Key certifications and ratings for our keyboards include:

    • IP Ratings: Our keyboards often feature high Ingress Protection (IP) ratings, such as IP65, IP67, and IP68. These ratings indicate resistance to dust, dirt, and liquids, making them suitable for washdown areas and environments prone to spills.
    • IK Ratings: Many models also possess IK ratings, signifying their resistance to external mechanical impacts. An IK rating ensures the keyboard can endure significant physical stress without functional impairment.
    • ATEX Certification: For hazardous environments where explosive atmospheres may be present, selected rugged keyboard models are ATEX certified. This certification confirms compliance with essential health and safety requirements relating to explosive atmospheres, ensuring safe operation in such critical zones.

    These certifications collectively ensure that a Rugged Limited rugged keyboard delivers reliable performance and longevity, even in the most demanding industrial, marine, and outdoor settings.

    Industries such as manufacturing, logistics, military, and public safety frequently utilise rugged keyboards due to their ability to withstand harsh conditions. These keyboards are designed to operate reliably in environments that might involve exposure to dust, liquids, extreme temperatures, or frequent impacts. For example, in manufacturing facilities, a rugged keyboard can endure grease and grime, while in logistics, it can withstand bumps and spills that are common in warehouses and distribution centres.

    The military and public safety sectors also rely heavily on Rugged Limited’s durable input solutions, as their equipment must function flawlessly in critical and often unpredictable situations. Rugged keyboards provide the necessary resilience for field operations, emergency services, and vehicle integrations where standard keyboards would quickly fail. Their robust construction ensures continued performance, contributing to operational efficiency and safety in these challenging fields.
