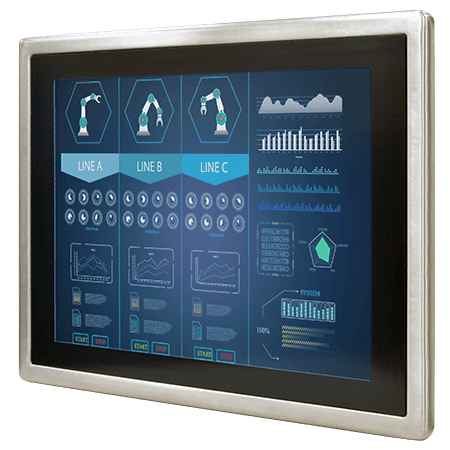

R15L600-65EX ATEX Rugged Display
The Winmate R15L600-65EX is a robust 15″ ATEX and IP65-certified display engineered for harsh and hazardous environments. This rugged touchscreen meets ATEX Zone 2 and Class 1, Division 2 standards, making it ideal for use in potentially explosive locations such as oil and gas platforms, petrochemical facilities, and industrial sites. Its stainless-steel construction ensures durability and protection against corrosion, while the explosion-proof 5-wire resistive or optional projected capacitive touchscreen provides smooth operation even in demanding conditions._x000D_
_x000D_
With a 1024 x 768 resolution and 550 nits brightness, the R15L600-65EX offers excellent visibility in outdoor or bright environments, with an optional upgrade to 1000 nits for even greater clarity. The display is protected against dust and water intrusion with an IP65 rating, and its compliance with MIL-STD-810G ensures it can withstand shocks, vibrations, and extreme temperatures. Additionally, the M12 waterproof connectors offer maximum protection in wet and dusty conditions, while the VESA 100 x 100 mm mount allows for flexible installation._x000D_
_x000D_
This rugged display is designed for real-time production monitoring, control, and data visualisation, making it a valuable tool for improving productivity and safety in demanding sectors such as oil and gas, mining, military, and industrial manufacturing.
R15L600-65EX Features
- ATEX Zone 2 & Class 1 Division 2 Certification
- 15" LCD Display with High Brightness
- IP65 Dust and Water Resistance
- Explosion-Proof Resistive Touchscreen
- Stainless Steel Construction with MIL-STD-810G Compliance
Request for Quote (RFQ)
Product Type
Format
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Touch / Glass
Resistive Touch Screen Bonding With Panel (Explosion-Proof)
Screen Size
15.0 inches
Resolution
1024x768
Panel Brightness
550 nits 1000 nits(Optional)
Contrast Ratio
2000:1
View Angles
88,88,88,88
Display Color
16.2M Colors
Active Area
304.1x228.1 mm
Dimensions
396 x 310 x 49 mm
Cut out
365 x 270 mm
Weight
5.7 kg
Mounting
VESA Mount
Enclosure
Stainless Housing
Cooling System
Fanless design
Operating Humidity
10% to 95% RH, Non-Condensing
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C
Shock
MIL-STD-810G Method 516.6 Procedure I (Optional)
Vibration
MIL-STD-810G Method 514.6 Procedure I
Drop
MIL-STD-810G Method 516.6 Procedure IV
IP rating
IP65
Certification
CE, FCC UL 60950-1 CAN/CSA C22.2 No. 60950-1-07 EN 62368-1 Class I, Div.2, Groups A,B,C,D T4 -20 <= Tamb <= 50 Meet Standards ANSI/ISA-12.12.01-2012 CSA/CSA C22.2 No. 213-M1987 ATEX II 3G Ex ic nA IIC T4 Gc -20 <= Tamb <= 50 Meet Standards EN 60079-0, EN 60079-11, EN 60079-15 IECEx Ex nA IIC T4 Gc -20 <= Tamb <= 50 Meet Standards IEC 60079-0, IEC 60079-15
USB Port
1x M12 type connector for Touchscreen
Serial Port
1 x M12 type connector for RS232 remote control
Video
1x M12 type connector for VGA input
Indicator
1 x LED Indicator for power 1 x LED Indicator for standby
Power Input
1 x 9~36V DC, M12 Type connector
Buttons
1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button
Accessories
100~240V AC to DC Power Adapter with M12 Connector Power Cord M12 Type Power Cable M12 Type RS232 Male Cable for remote control M12 Type USB Male Cable for Touch M12 Type VGA Cable Manual VESA screws
The R15L600-65EX ATEX Rugged Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R15L600-65EX is commonly used:
Hazardous Locations, Mining, Oil and Gas Industry, Pharmaceutical
These examples highlight the versatility of the R15L600-65EX ATEX Rugged Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display fits your specific needs, please contact us.
The R15L600-65EX ATEX Rugged Display comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, R15L600-65EX ATEX Rugged Display, must be presented to RUGGED in the United Kingdom.
For more information about the R15L600-65EX ATEX Rugged Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
