RUGGED RKB-D-8603B Stainless Steel Kiosk Keyboard

Designed for industrial and kiosk deployments, the RUGGED RKB-D-8603B Stainless Steel Kiosk Keyboard delivers reliable data entry in environments subject to contamination, physical wear, and environmental exposure. Constructed with industrial-grade stainless steel, this keyboard offers impact resistance and protection against dust and moisture with an IP65 rating. Its sealed design supports continuous operation in harsh conditions while withstanding vibrations and physical shocks thanks to robust construction and aluminium alloy base plate.

Supporting USB and PS2 interfaces, the RKB-D-8603B integrates easily with varied legacy and modern systems. Certified CE, FCC, and RoHS compliant, it aligns with industry standards for quality and safety. Operating reliably from -40°C to +70°C, this kiosk keyboard meets demanding temperature requirements across diverse industrial settings. With over 10 million key actuations and vibration testing across 20Hz to 2kHz frequency ranges, it is suited for continuous field operation and long service life.

RKB-D-8603B Features

  • Industrial Grade Stainless Steel
  • IP65 Rated
  • Suitable for Industrial & Public Environments
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Operating System

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

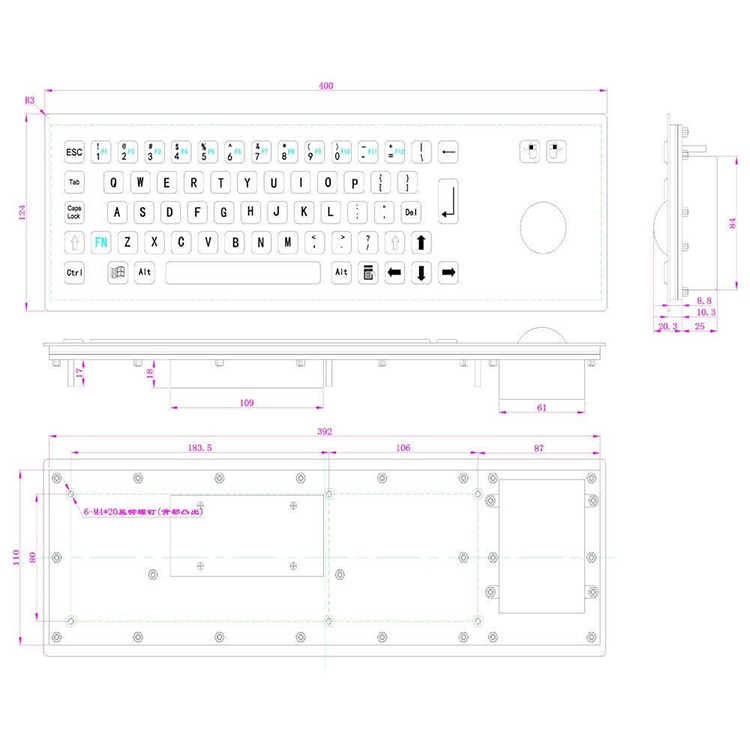

Dimensions

400 x 124mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Ball Material

Stainless Steel

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Black

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

400*124mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

Mounting Type

rack mount

MTBF

>50000H

MTTR

<30min

No. Of Keys

64+2

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8603B Stainless Steel Kiosk Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D-8603B supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Public Sector, Retail, Security And Surveillance.

Across these sectors, the RKB-D-8603B is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals.

These examples demonstrate the versatility of the RKB-D-8603B across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-D-8603B is appropriate for your specific application, please contact us.

The RUGGED RKB-D-8603B Stainless Steel Kiosk Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8603B Stainless Steel Kiosk Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8603B Stainless Steel Kiosk Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8603B Stainless Steel Kiosk Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8603B or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
