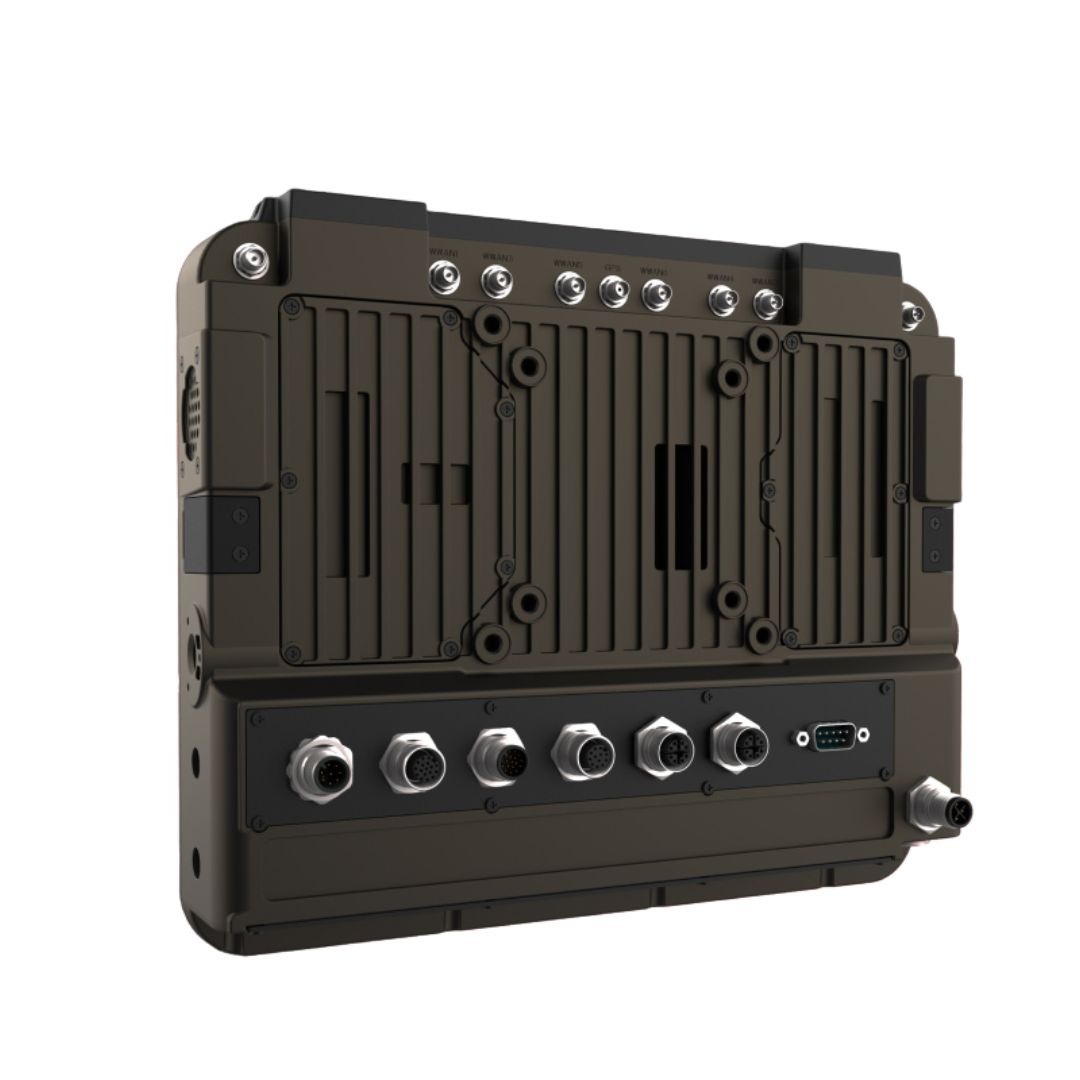

RuggOn VULCAN 10X 10.4” Vehicle Mount Computer
The RuggOn VULCAN 10X 10.4″ Vehicle Mount Computer is built around a rugged enclosure meeting IP66 and MIL-STD-810H standards, supporting vehicle-based industrial and warehousing deployments that encounter dust, moisture, shock, and vibration. Its 10.4-inch touchscreen offers high brightness and glove/rain usability, allowing consistent operation in outdoor and harsh vehicle cabin environments.
This device utilises Intel Core i5 or Celeron processors running Windows 10 IoT Enterprise, ensuring reliable performance in continuous-duty conditions. Connectivity options include Wi-Fi 6, Bluetooth 5.0, optional 4G LTE, and GNSS, facilitating robust communication and navigation on the move. The system includes extensive I/O ports compatible with serial, Ethernet, USB, and CAN bus interfaces, enhancing integration with industrial peripherals. Its wide power input range and ignition sensing accommodate vehicle power variations and support graceful shutdown. Designed for transport and logistics sectors, the VULCAN 10X delivers dependable computing where sealed, vibration and shock resistance are essential for operational continuity.
VULCAN 10X Features
- IP66 rated enclosure
- MIL-STD-810H vibration and shock tested
- Sunlight-readable 10.4-inch display
- Glove and rain mode touch screen
- Intel® Core™ i5 processor with Windows 11 IoT Enterprise
- Wi-Fi 6 and Bluetooth 5.2
- Optional LTE and GNSS connectivity
- Rich I/O including USB, RS232, LAN, and CAN bus
- Operating temperature -30°C to +55°C
Request a Quote
Product Type
Manufacturer
Certifications & Standards
CE, FCC, IP66, MIL-STD-810H
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
System
Intel® Core™ i5-8365UE 1.6GHz, optional Intel® Celeron® 4305UE 2.0GHz 4GB DDR4 SODIMM, expandable to 32GB M.2 2280 SSD Built-in 6-axis motion sensor, 2 x speaker OS option : Windows 10 IoT Enterprise
Display
10.4” XGA TFT LCD with LED backlight (1024 x 768) 1200 nits brightness supports auto-dimming 5-wire resistive touch supports defrost / defog function PCT touchscreen supports glove and rain mode (by request)
Communication
Wi-Fi 802.11 a/b/g/n/ac/v/r/k Bluetooth V5.0 Optional 4G LTE / HSPA+ / GPRS or 5G Optional GNSS (GPS/Galileo/GLONASS/BeiDou/QZSS)
Function Button
Programmable button x 7, brightness adjustment x 2, volume adjustment x 2, display on/off x 1 Optional defrost / defog button x 1
I/O Interface
RS-232 with power supported x 1 RS-232(TX,RX)/422/485 x 1, RS-232(TX,RX) x 2, RS-485 x 2 Gigabit Ethernet x 2 USB 3.1 x 1, USB 2.0 x2, USB 3.1 type C x 1 (DisplayPort Alt Mode supported) Micro SD slot x 1, Micro SIM slot x 2 Optional CAN bus 2.0B x 2 or SAE J1939 x 1 DI x 2, DO x 2 Mic in x 2, Line out (L/R) x 1 Optional video input
Certifications
CE, FCC, CB
Power management
9~60 VDC input Ignition sense with delay on/off seting Wake on RTC Internal battery for graceful shutdown
Rugged Features
IEC 60529 IP66, IEC 60721-3-5 class 5M3 Vibration (operating) : MIL-STD-810H, Method 514.8 C2/C4/C6 Shock (operating) : MIL-STD-810H, Method 516.8, Procedure 1, functional shock Optional Salt fog : MIL-STD-810H, Method 509.7
Environmental (Tested to MIL-STD-810H standards)
Operating temperature -30°C to +55°C Storage temperature -40°C to +70°C Humidity 95%, non-condensing
Mechanical Spec
VESA 75 / 100 Dimension (W x H x D) : 278 x 234 x 57 (mm) Weight : 3.2kg
In-box Accessory
External power cable
Ordering Information
VX-501-R (P/N:72U8I19700-A0001) VULCAN X with 10.4” LCD and resistive touch including Intel Core i5-8365UE 1.6GHz, 4GB DDR4, 128GB SSD, WIFI / BT VX-501C-R (P/N:72U8I19700-A0002) VULCAN X with 10.4” LCD and resistive touch including Intel Celeron 4305UE 2.0GHz, 4GB DDR4, 128GB SSD, WIFI / BT VX-501-P (P/N:72U8I19700-A0003) VULCAN X with 10.4” LCD and PCT touch including Intel Core i5-8365UE 1.6GHz, 4GB DDR4, 128GB SSD, WIFI / BT VX-501C-P (P/N:72U8I19700-A0004) VULCAN X with 10.4” LCD and PCT touch including Intel Celeron 4305UE 2.0GHz, 4GB DDR4, 128GB SSD, WIFI / BT
Accessories
Mounting Kit Power Cable Antenna U-Shape Bracket Keyboard Tray
The RuggOn VULCAN 10X 10.4” Vehicle Mount Computer is designed and engineered for use in demanding environments where reliability, durability are essential. The VULCAN 10X supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Rail And Transport, Warehousing.
Across these sectors, the VULCAN 10X is typically used in applications such as Fleet Management And Telematics, Forklift And Materials-Handling Terminals, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, Route Planning And Navigation, Vehicle-Mounted Computing (MDTs / VMCs), Yard, Dock, And Gatehouse Management.
These examples demonstrate the versatility of the VULCAN 10X across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the VULCAN 10X is appropriate for your specific application, please contact us.
The RuggOn VULCAN 10X 10.4” Vehicle Mount Computer comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RuggOn VULCAN 10X 10.4” Vehicle Mount Computer, must be presented to RUGGED in the United Kingdom.
For more information about the RuggOn VULCAN 10X 10.4” Vehicle Mount Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RuggOn VULCAN 10X 10.4” Vehicle Mount Computer, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RuggON VULCAN 10X or need a custom Data Terminal solution designed specifically for you, our team of technical experts are ready to assist you.
