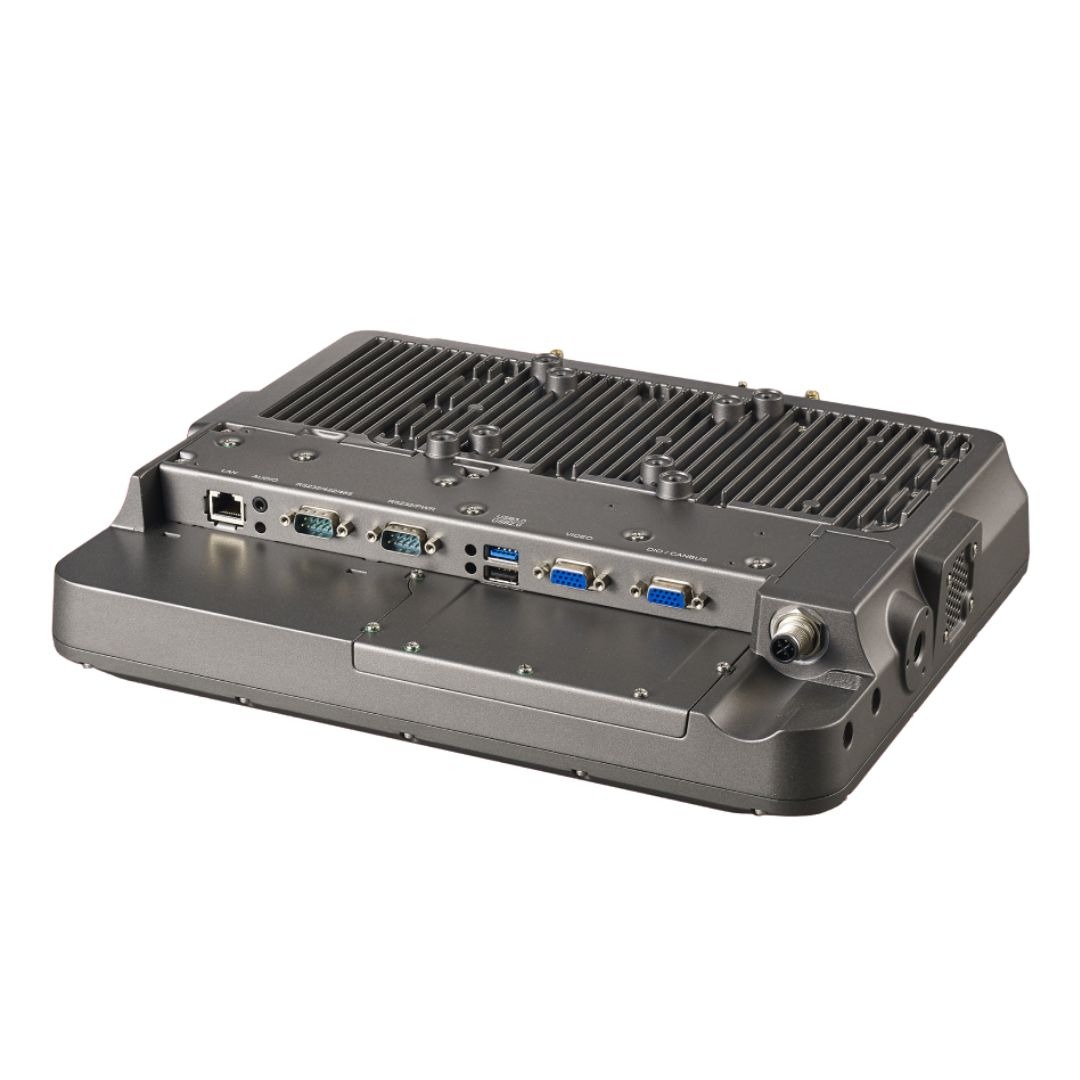

RuggOn VULCAN 12X Vehicle Mount Rugged Computer

  • IP66 RATED
  • MIL STD 810G
  • WINDOWS OS
  • 4G
  • GPS
  • 1200 NITS
  • WIDE VDC
  • RS232

Designed for vehicle-based industrial and logistics environments, the RuggOn VULCAN 12X Vehicle Mount Rugged Computer provides a sealed, impact-resistant design that endures vibration, dust, moisture, and temperature variations. Its 12.1-inch high-brightness display supports direct sunlight readability and gloved operation, critical for outdoor usability. Powered by an Intel Core i5 processor running Windows 10 IoT Enterprise, the VULCAN 12X offers reliable computing performance for fleet management and diagnostics. It features extensive connectivity options including RS-232/422/485 serial ports, USB, LAN, optional CAN bus, Wi-Fi, Bluetooth, GNSS, and optional LTE or CBRS modules, enabling versatile integration and continuous wireless operation.

The unit is built to MIL-STD-810H vibration and shock standards with an IP66 rating, ensuring dust and weather resistance suitable for continuous-duty vehicle mounting. Ignition sensing and a wide input voltage of 9 to 60 VDC adapt it to varied vehicle power systems. The ruggedised thermal management optimises performance across temperatures from -30°C to +55°C, supporting long-term deployment in demanding transport sectors.

VULCAN 12X Features

  • MIL-STD-810H certified for shock and vibration resistance
  • IP66 dust and water ingress protection
  • 12.1-inch sunlight-readable touchscreen usable with gloves and wet hands
  • Intel Core i5 processor with Windows IoT Enterprise for reliable data processing
  • Wide input voltage support with ignition sensing for vehicle integration
  • Built-in Wi-Fi Bluetooth GNSS with optional LTE or CBRS
  • Multiple industrial I/O ports including CAN bus support

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

Screen Size

Country Of Manufacture

Taiwan

System

Intel® Core™ i5-6300U 2.4GHz, optional Intel® Celeron® 3955U 2GHz 4GB DDR3L SODIMM, expandable to 16GB M.2 2280 SSD, SD slot Built-in 3-axis G-sensor, dual speaker Windows 10 IoT Enterprise

Display

12.1” XGA TFT LCD with LED backlight (1024 x 768) 700 / 1200 nits brightness, support auto-dimming 5-wire resistive touch, support defroster function PCT by request

Communication

Gigabit Ethernet (RJ45 ) Wi-Fi 802.11 a/b/g/n/ac Optional 4G LTE / HSPA+ / GPRS Bluetooth V4.0 Class 2 Optional GNSS (GPS / QZSS or GLONASS)

Function Button

Programmable button x 9, brightness adjustment x 2, volume adjustment x 2, display on/off x 1 Optional defrost / defog button x 1

I/O Interface

RS-232 with power supported x 1, RS-232/422/485 x 1 USB 3.0 / 2.0 x 1, USB 2.0 x 1 CAN bus (SAE J1939 supported) x 1 DI x 2, DO x 2 Audio headset jack x 1 Optional video input x 4 DC-in x 1

Certifications

CE, FCC,CB

Power management

9~60 VDC input Ignition sense with delay on/off setting Wake on RTC UPS backup battery (10.8V, 4500 mAhr)

Rugged Features

IEC 60529 IP66 Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4 IEC 60721-3-5 class 5M3 Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth Salt fog : MIL-STD-810G, Change1, Method 509.6

Environmental (Tested to MIL-STD-810G standards)

Operating temperature -30°C to +55°C Storage temperature -40°C to +70°C Humidity 95%, non-condensing

Mechanical Spec

VESA 75 / 100 Dimension (W x H x D) : 325 x 280 x 696 (mm) Weight : 4.8 kg, 4.9 kg with IPBOX

Ordering Information

VX-601-RS High brightness VX-601 with Intel Core i5-6300U 2.4GHz, 4GB DDR3L, 64GB M.2, and WIFI / BT VX-601C-R VX-601 with Intel Celeron 3955U 2GHz, 4GB DDR3L, 64GB M.2, and WIFI / BT

Software

DashON

Accessories

Mounting Kit Power Cable Antenna U-Shape Bracket Keyboard Tray (By request)

The RuggOn VULCAN 12X Vehicle Mount Rugged Computer is designed and engineered for use in demanding environments where reliability, durability and application suitability are essential. The VULCAN 12X supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Rail And Transport, Warehousing.

Across these sectors, the VULCAN 12X is typically used in applications such as Asset Tracking And Management, Driver Workflows And Tachograph Integration, Fleet Management And Telematics, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Route Planning And Navigation, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the VULCAN 12X across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the VULCAN 12X is appropriate for your specific application, please contact us.

The RuggOn VULCAN 12X Vehicle Mount Rugged Computer comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RuggOn VULCAN 12X Vehicle Mount Rugged Computer, must be presented to RUGGED in the United Kingdom.

For more information about the RuggOn VULCAN 12X Vehicle Mount Rugged Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RuggOn VULCAN 12X Vehicle Mount Rugged Computer, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RuggON VULCAN 12X or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
