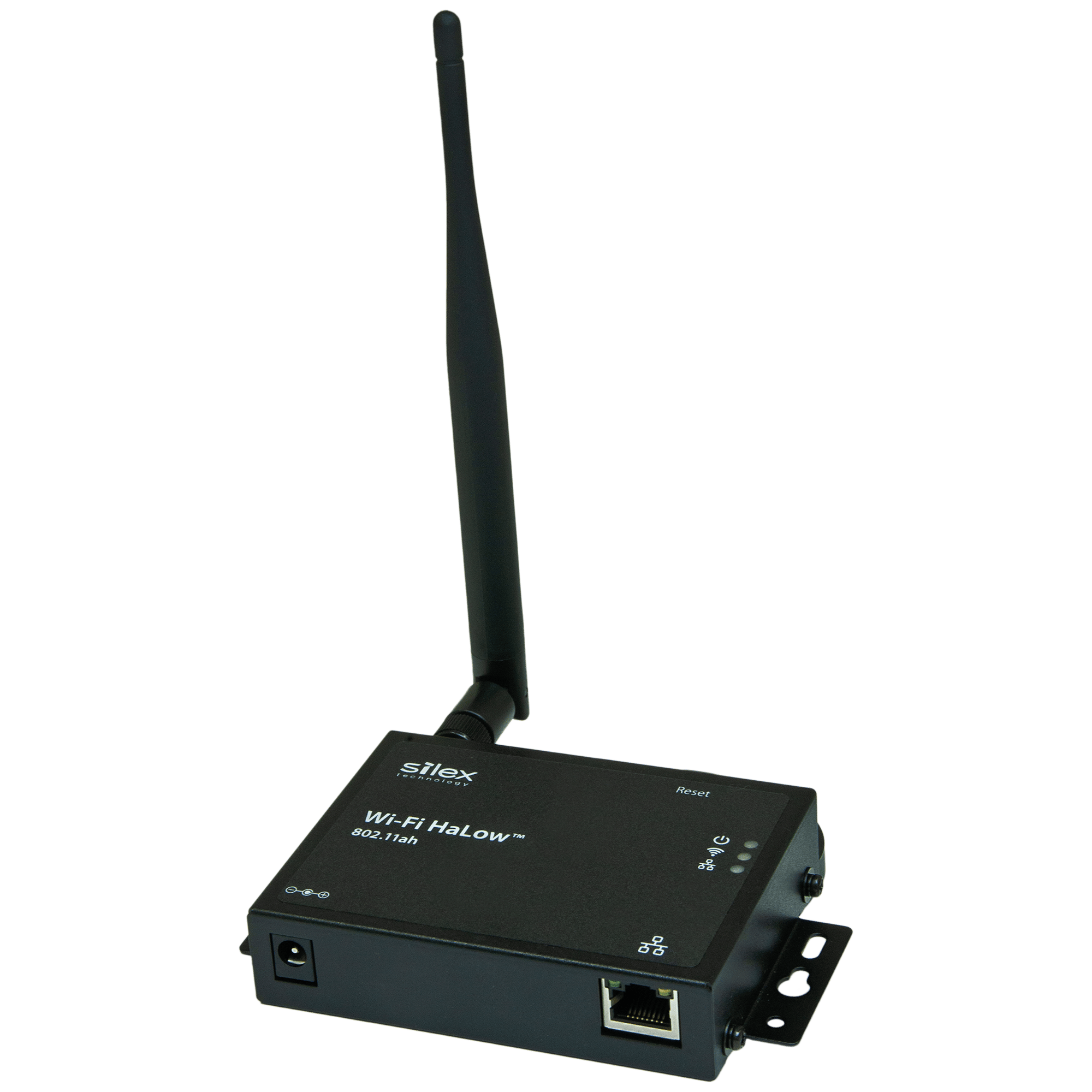

Silex AP-100AH 802.11ah HaLow Wireless Access Point
The Silex AP-100AH is a long-range wireless access point built on the IEEE 802.11ah (Wi-Fi HaLow) standard, designed to bring dependable connectivity to environments where traditional 2.4GHz and 5GHz Wi-Fi struggle to reach. Operating in the sub-GHz band, it delivers a coverage radius of up to three kilometres from a single access point and supports as many as 675 simultaneous client connections, allowing it to anchor large sensor networks and industrial IoT estates without a dense web of repeaters.
Performance is matched by enterprise-grade protection. The AP-100AH supports WPA3-Personal and WPA3-Enterprise with AES-CCMP encryption, giving sensitive deployments the cryptographic strength expected of mission-critical networks. An embedded web server with HTTP and HTTPS over TLS makes configuration straightforward, while compatibility with Silex AMC Manager lets administrators monitor status, push firmware and manage devices across the estate from a single point. Network Address Translation support allows the access point to act as a secure gateway between private devices and the wider network.
Housed in a compact enclosure measuring 126mm by 75mm by 24mm and operating from 0°C to 40°C, the AP-100AH integrates easily into both new and established infrastructure. It suits rural and agricultural connectivity, utilities and metering, surveillance, construction sites, warehousing and any application that needs stable, long-distance wireless coverage. Paired with the Silex BR-100AH bridge it forms a complete 802.11ah HaLow infrastructure, and a five-year warranty underlines its suitability for long-term, continuous-duty operation.
AP-100AH Features
- First commercially available 802.11ah Wi-Fi HaLow wireless access point
- Long-range sub-GHz coverage of up to 3 km from a single unit
- Supports up to 675 simultaneous client connections
- WPA3-Personal and WPA3-Enterprise security with AES-CCMP encryption
- Embedded web server with HTTP and HTTPS (TLS) configuration
- Network Address Translation (NAT) for secure gateway operation
- Compatible with Silex AMC Manager for centralised device management
- Integrates into new or existing Wi-Fi infrastructure
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Country Of Manufacture
Japan
Wired LAN
RJ-45 Connector x 1, 10Base-T / 100Base-TX
Wireless LAN
IEEE 802.11ah (1x1)
Channels
1 MHz, 2 MHz and 4 MHz
Operating Frequency
Sub-GHz 902 to 928 MHz band. BW 1 MHz: 903.5 to 926.5 MHz; BW 2 MHz: 905 to 925 MHz; BW 4 MHz: 910, 914, 918, 922 MHz
Security
Open, Enhanced Open, WPA3-Personal, WPA3-Enterprise (128-bit mode). Encryption: AES-CCMP
Data Rate
MCS 0, 1, 2, 3, 4, 5, 6, 7, 10
Modulation
OFDM
Range
Up to 3 km
Maximum Clients
675 stations simultaneously
Operating Temperature / Humidity
0°C to 40°C, 20% to 90% RH
Storage Temperature / Humidity
-20°C to 80°C, 20% to 90% RH
Device Management
AMC Manager
Power
5.0V ± 5% DC Jack (5.5mm x 2.1mm)
Dimensions
126mm x 75mm x 24mm
EMC Standards
FCC Part 15 Subpart B Class B, ICES-003 Class B, EU RoHS Directive (2015/863), China RoHS
Embedded Module Option
SX-NEWAH 802.11ah Wi-Fi HaLow module
Warranty
5 years
The Silex AP-100AH 802.11ah HaLow Wireless Access Point is designed and engineered for use in demanding environments where reliability, durability are essential. The AP-100AH supports a wide range of industries and operational applications.
Common deployment industries include: Agriculture, Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Security And Surveillance, Telecommunications.
Across these sectors, the AP-100AH is typically used in applications such as Asset Tracking And Management, Environmental Monitoring And Data Logging, Network Monitoring, Predictive Maintenance And Condition Monitoring, Remote Management, SCADA And Control-Room Access, Security And Surveillance Operations, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the AP-100AH across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the AP-100AH is appropriate for your specific application, please contact us.
The Silex AP-100AH 802.11ah HaLow Wireless Access Point comes with a 5 Years Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Silex AP-100AH 802.11ah HaLow Wireless Access Point, must be presented to RUGGED in the United Kingdom.
For more information about the Silex AP-100AH 802.11ah HaLow Wireless Access Point or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
