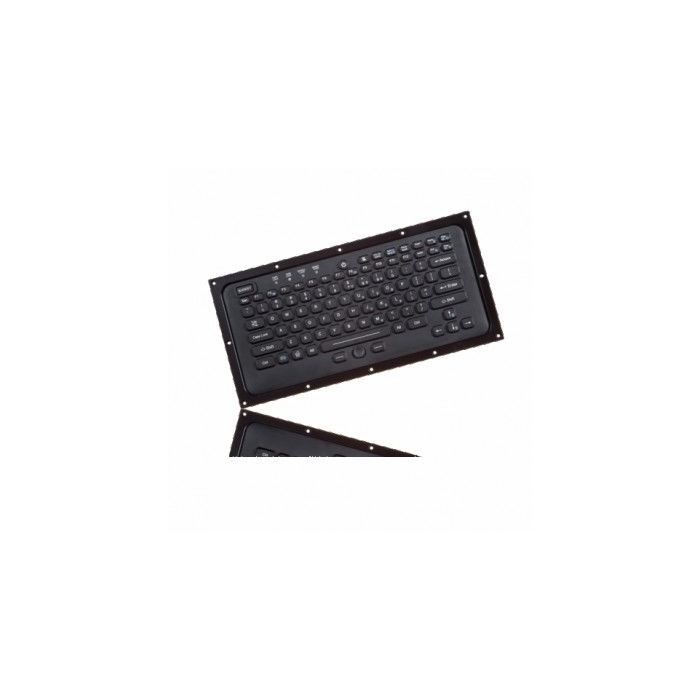

TMLT-890-OEM iKey Keyboard
iKey’s TMLT-890-OEM keyboard packs full military specifications into an extremely thin, 0.54″ depth, making it ideal for rugged applications.
Designed to meet MIL-461E standards, the TMLT-890-OEM has excellent performance for conducted and radiated emissions, including RS103 and 200 volts/meter. It also meets 25 kV ESD requirements.
The TMLT-890-OEM’s top-mounted assembly eliminates the need to dismantle laptop components to reach the keyboard. In addition, it features an integrated FSR pointing device and adjustable green LED backlighting, with optional NVIS Green B.
TMLT-890-OEM Features
- Designed To Meet Mill-Std-461E
- Integrated Fsr Pointing Device
- Switch Matrix Configuration
- Optional NVIS Compliant Green B Backlighting
- Various Keyboard and Language Layout Options
- Customisation Available On Request
Request for Quote (RFQ)
Case Material
No Case
Certifications
IP Rated, NEMA 4X UL60950, FCC Part 15 Class B
Custom Options Products
Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface
Dimensions
10.35" x 5.10" x 0.54" (w-h-d) 262.89mm x 129.54mm x 13.72mm
Humidity
100% Humidity Resistant (when properly installed)
Active Area
59 x 42 mm
Compatibility
All windows OS
Diameter
38 mm
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys
12 Keys
Key Feedback
Tactile with Mechanical Snap
Key Material
Industrial Silicone Rubber
Key Switch
MATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 230g (+/- 20g) FEEDBACK: Tactile with mechanical snap
Lifespan
>10 Million Actuations
Mounting Type
front panel with threaded bolts
No. Of Keys
89
Operating Force
1 N
Operating Principle
capacitive
Pointing Device
HulaPoint
Pointing Device Operating Principle
Capacitive
Power
250mA@5V KEYBOARD/BACKLIGHT PS2/POINTER
Product Weight
0.75 lbs (0.34 kg)
Resolution
100 - 300 dpi
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Switch Force
(180g +/- 30g)
Switch / Key Travel
0.055 in (1.4mm)
Switching Cycles
approx. 10 mill. (per key)
Tracking Force
65 g
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Temperature Rating
STORAGE: -51C to +71C OPERATING: -32C to +60C
The TMLT-890-OEM iKey Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the TMLT-890-OEM is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the TMLT-890-OEM iKey Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard fits your specific needs, please contact us.
The TMLT-890-OEM iKey Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, TMLT-890-OEM iKey Keyboard, must be presented to RUGGED in the United Kingdom.
For more information about the TMLT-890-OEM iKey Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the TMLT-890-OEM iKey Keyboard or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey TMLT-890-OEM or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
