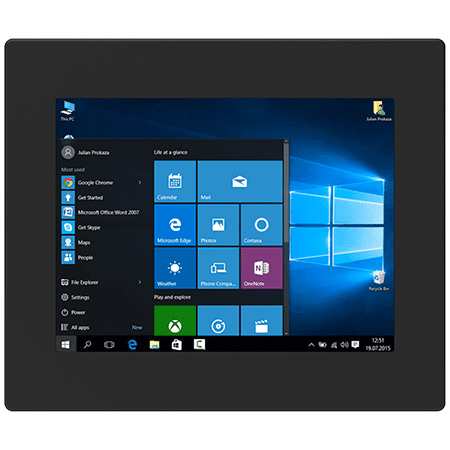

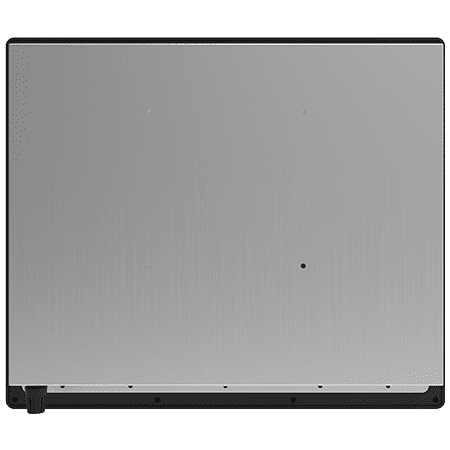

Winmate R12IAD3S-PMM2 12.1 Inch Panel Mount Panel PC
For industrial environments where panel mounting is essential, the Winmate R12IAD3S-PMM2 12.1 Inch Panel Mount Panel PC provides reliable computing within a reinforced metal housing with an IP65-rated front panel. Its dust-sealed and water-resistant design supports installation in dusty or wet conditions, common across manufacturing and automation sites. This unit operates continuously with a fanless cooling system paired with an Intel 4 Core 4 i5-1235U processor, ensuring stable performance and thermal management for demanding industrial applications.
The panel PC features a 12.1-inch display with optional resistive touch screen, delivering clear visuals at 1024×768 resolution with a brightness of 500 nits for enhanced visibility in varied lighting conditions. Dual Intel 4 Ethernet controllers offer robust network connections, while multiple USB, serial, and expansion ports accommodate diverse peripheral requirements. Security is supported via TPM 2.0, and wireless options include optional WLAN and Bluetooth modules, expanding connectivity in field-ready scenarios. Designed to operate between 0 0C and 50 0C and withstand vibrations and shocks, this industrial-grade panel PC combines practical features with durability for continuous-duty use.
R12IAD3S-PMM2 Features
- 12.1” 1024 x 768 Resolution Panel Mount PC
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
12.1 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1024x768
Panel Brightness
500.0 nits
Contrast Ratio
1000:1
View Angles
89-89-89-89
Active Area
245.76x184.32 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
324 x 274 x 67 mm
Cut out
302 x 234.3 mm
Weight
2.6 kg
Mounting
Panel mount VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
Power Rating
12V DC
Adapter
12V 120W"
The Winmate R12IAD3S-PMM2 12.1 Inch Panel Mount Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R12IAD3S-PMM2 supports a wide range of industries and operational applications.
Common deployment industries include: Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Pharmaceutical, Public Sector, Retail, Security And Surveillance.
Across these sectors, the R12IAD3S-PMM2 is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access.
These examples demonstrate the versatility of the R12IAD3S-PMM2 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R12IAD3S-PMM2 is appropriate for your specific application, please contact us.
The Winmate R12IAD3S-PMM2 12.1 Inch Panel Mount Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R12IAD3S-PMM2 12.1 Inch Panel Mount Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R12IAD3S-PMM2 12.1 Inch Panel Mount Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R12IAD3S-PMM2 12.1 Inch Panel Mount Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R12IAD3S-PMM2 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
