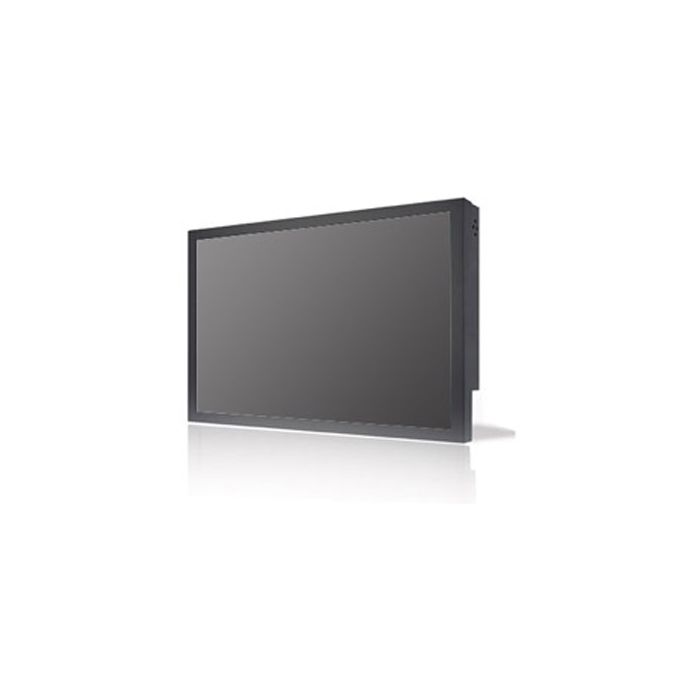

RD-2602-CM 26″ RUGGED Display
The RD-2602-CM 26″ Chassis Mount Widescreen LCD Display has a host of features including OSD With Multi-Language Support ,Wall Mount VESA Compliant (100 x 100 mm),Integrated Stereo Speakers to name a few. Designed and built to survive harsh conditions and are perfectly suited for Aerospace , Commercial , Defence , Industrial Consoles , Marine Consoles , Medical Systems , Military , OEM , Radar Applications , System Integrators and other demanding applications. The typical lifetime of an RD-2602-CM 26″ Chassis Mount Widescreen LCD Display is approximately 50,000 hours (typ).
RD-2602-CM Features
- Integrated Control Panel
- OSD With Multi-Language Support
- Wall Mount VESA Compliant (100 X 100 mm)
- Integrated Stereo Speakers
Request for Quote (RFQ)
Certifications
CE, UL
Dimensions
650.0 (W) x 430.0 (H) x 61.0 (D) mm
Display Accessories Included
AC/DC Power Adapter
Active Display Area
575.77 (H) x 323.71 (V)
Aspect Ratio
0.672916667
Backlight Life
50,000 hours (typ)
Connectivity
15 Pin female D-Sub x 1/ DVI-D, Stereo headphone jack x 1, AC Power Jack
Contrast Ratio
33.33402778
Display Backlight
LED BLU
Display Brightness
500 cd/m2
Display Resolution
1366 x 768
Frequency Range
Fh: 30 to 82Khz, Fv: 60 to 75Hz
Input Power
Universal/ Auto-sensing, 90 to260V AC, 50/60 Hz
Osd Control
No
Pixel Dimension
0.42 (H) x 0.42 (V) mm
Power Consumption
Operation 85Watt ( Max ), Stand-by < 5 Watt
Power Management
DPMS
Response Time
< 8 ms (G-to-G)
Screen Technology
LCD
Screensize
26"
Sync Signal
Separate Sync, Composite Sync, Sync on Green
Video Signal
Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Viewing Angle
176 degree in horizontal & 176 in vertical (typ)
Operating Temperature
OPERATING: 0C to +40C
Storage Temperature
STOREAGE: -20C to +60C
Temperature Rating
OPERATING: 0C to +40C / STOREAGE: -20C to +60C
The RD-2602-CM 26″ RUGGED Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RD-2602-CM is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the RD-2602-CM 26″ RUGGED Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display fits your specific needs, please contact us.
The RD-2602-CM 26″ RUGGED Display comes with a 1 Years RTB Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RD-2602-CM 26″ RUGGED Display, must be presented to RUGGED in the United Kingdom.
For more information about the RD-2602-CM 26″ RUGGED Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RD-2602-CM 26″ RUGGED Display?
If you have any questions about the RUGGED RD-2602-CM please get in touch today, our team of technical experts are ready to assist you.
