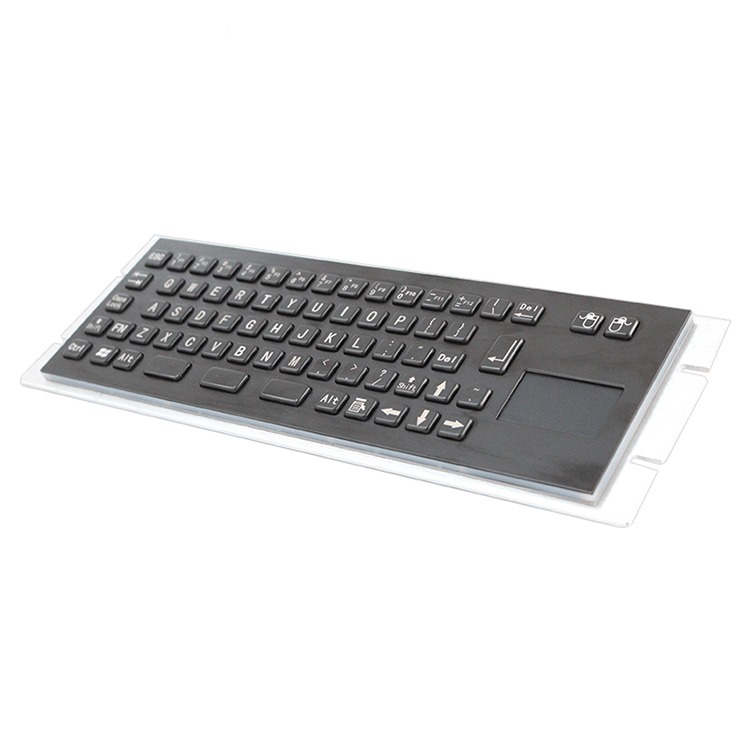

RUGGED RKB-D-8630T-B Compact Metel keyboard with Touchpad
Designed for industrial environments, the RUGGED RKB-D-8630T-B compact metal keyboard with touchpad combines rugged stainless steel construction and a sealed design to withstand dust, moisture, and mechanical wear. Its compact form optimises space while offering reliable data entry even under continuous-duty conditions in harsh settings. The keyboard supports USB and PS2 interfaces, enabling flexible integration with various control systems.
Featuring carbon contact key switches, the keyboard delivers over 10 million keystrokes with reduced maintenance. It is vibration tolerant for vehicle-mounted and industrial machinery use and operates across a wide temperature range from -40°C to +70°C. Protected to IP65 standards and compliant with CE, FCC, and RoHS, the RKB-D-8630T-B meets strict environmental and electromagnetic interference requirements. Measuring 288 by 101 millimetres, it is reinforced for durability and built to meet the demands of long-term, reliable operation in field conditions.
RKB-D-8630T-B Features
- Industrial Grade Stainless Steel
- IP65 Rated
- Suitable for Industrial & Public Environments
- Various Keyboard and Language Layout Options
- UK RTB Warranty
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Operating System
Country Of Manufacture
China
Case Material
Stainless Steel
Custom Options Products
Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

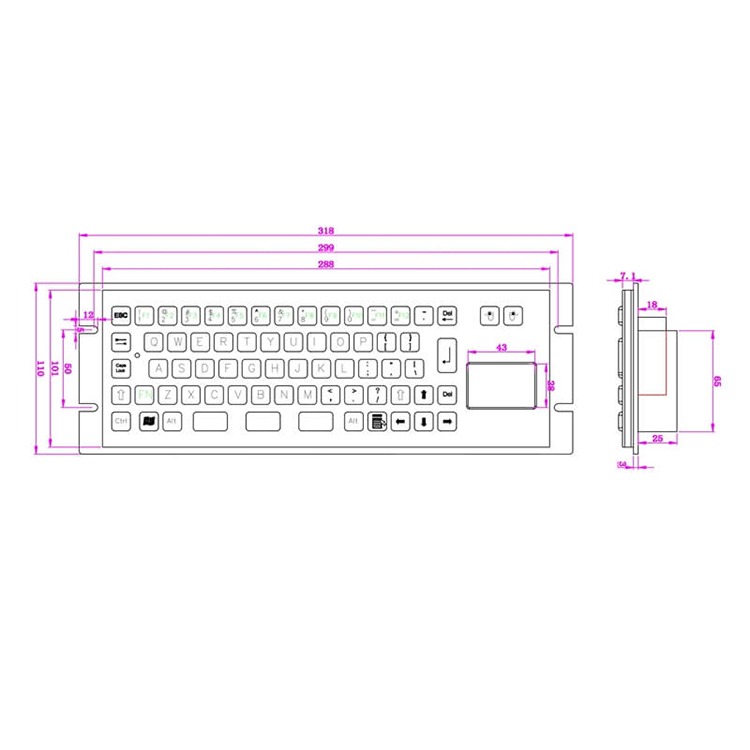

Dimensions
288 x 101mm (front panel)
Extended Warranty
Available On Request
Function Keys
12 Keys
Housing Colour
Stainless Steel
Base plate Material
Aluminum Alloy
Case Material
Stainless Steel (front panel) and Aluminum Alloy
Certified European Standards
CE, FCC, RoHS Compliant
Colour
Black
Compatibility
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc
Connectivity
USB or PS2 (optional)
Dimensions
288* 101mm (front panel)
Frontplate Material
Industrial Grade Stainless Steel
Function Keys
12
Key Switch
Carbon Contact Technology
Lifespan
>10 Million Actuations
Material (Bottom Plate)
Aluminum Alloy

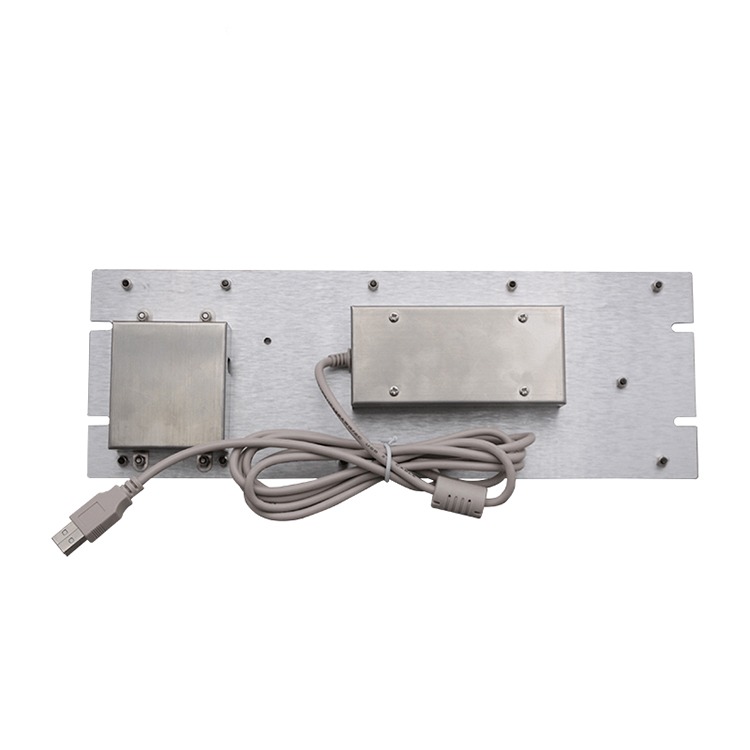

Mounting Type
Rear Panel Mount
MTBF
>50000H
MTTR
<30min
No. Of Keys
68
Pointing Device
Touchpad
Supply Voltage
+5V DC +/-5%
Switch / Key Travel
1.5mm
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Lifetime
Lifespan > 5 years
Operating System
IOS,Linux,Windows,Windows 10 IOT
Operating Temperature
OPERATING: -40C to +70C (-40F to +158F)
Storage Temperature
STORAGE: -50C to +80C
The RUGGED RKB-D-8630T-B Compact Metel keyboard with Touchpad is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D-8630T-B supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Rail And Transport.
Across these sectors, the RKB-D-8630T-B is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Port, Terminal, And Cargo Handling, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Robotics And Autonomous System Control, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals.
These examples demonstrate the versatility of the RKB-D-8630T-B across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the RKB-D-8630T-B is appropriate for your specific application, please contact us.
The RUGGED RKB-D-8630T-B Compact Metel keyboard with Touchpad comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RUGGED RKB-D-8630T-B Compact Metel keyboard with Touchpad, must be presented to RUGGED in the United Kingdom.
For more information about the RUGGED RKB-D-8630T-B Compact Metel keyboard with Touchpad or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RUGGED RKB-D-8630T-B Compact Metel keyboard with Touchpad, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8630T-B or need a custom 2074 solution designed specifically for you, our team of technical experts are ready to assist you.
