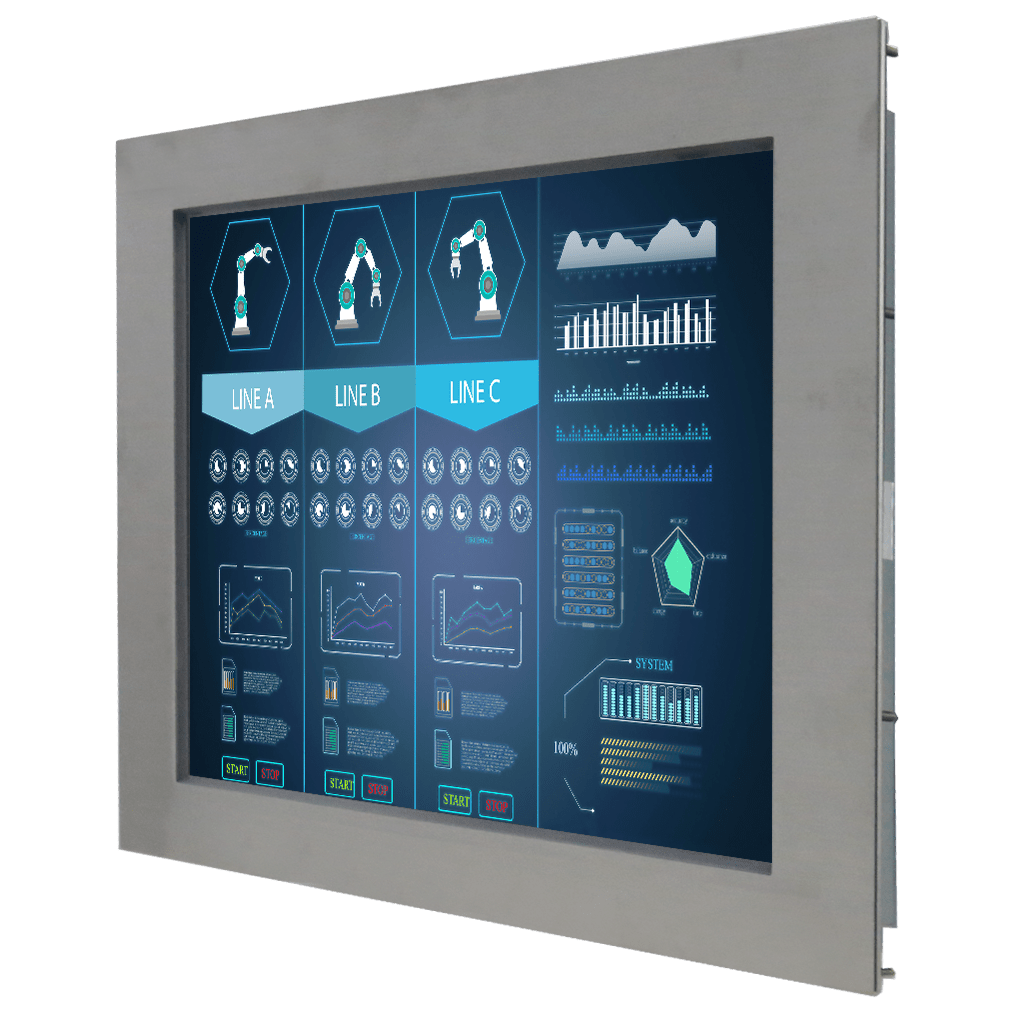

S17L500-STM1 Winmate 17 Inch Stainless Panel Mount Display
The Winmate S17L500-STM1 is a rugged 17-inch stainless steel panel mount display designed for industrial environments that require durability and resistance to harsh conditions. The stainless steel chassis provides corrosion resistance, making it suitable for food processing, pharmaceuticals, and chemical manufacturing. The panel mount design allows for secure and clean installation, while the bright display ensures excellent visibility in various lighting conditions. The S17L500-STM1 offers a robust and reliable solution for industries that demand both hygiene and durability.
S17L500-STM1 Features
- 17", 1280 x 1024 Stainless Panel Mount Display
- VGA and HDMI input
- Panel mount
- VESA mount
Request for Quote (RFQ)
Size
17 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1280x1024
Panel Brightness
350 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Display Color
16.2M Colors
Active Area
337.920x270.336 mm
Dimension
440 x 360 x 67 mm
Mounting
Panel mount VESA Mount
Enclosure
Stainless front bezel
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
1x USB type-A for touch screen control (Optional)
Serial Port
1 x RS232 D-sub9 for touch screen control (Optional)
Video
1x VGA input 1x HDMI input (Optional) 1x DVI input (Optional)
Indicator
1 x LED Indicator for power 1 x LED Indicator for status
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button
Accessory
100~240V AC to DC Adapter Power Cord External USB Cable For Touchscreen Control External VGA Cable External HDMI Cable VESA Screws
Optional Accessory
External DVI Cable (Optional)
Power Rating
12V DC
The S17L500-STM1 Winmate 17 Inch Stainless Panel Mount Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the S17L500-STM1 is commonly used:
These examples highlight the versatility of the S17L500-STM1 Winmate 17 Inch Stainless Panel Mount Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display fits your specific needs, please contact us.
The S17L500-STM1 Winmate 17 Inch Stainless Panel Mount Display comes with a 1 Year RTB UK Warranty With Option To Extend upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, S17L500-STM1 Winmate 17 Inch Stainless Panel Mount Display, must be presented to RUGGED in the United Kingdom.
For more information about the S17L500-STM1 Winmate 17 Inch Stainless Panel Mount Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the S17L500-STM1 Winmate 17 Inch Stainless Panel Mount Display or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate S17L500-STM1 or need a custom Display solution designed specifically for you, our team of technical experts are ready to assist you.

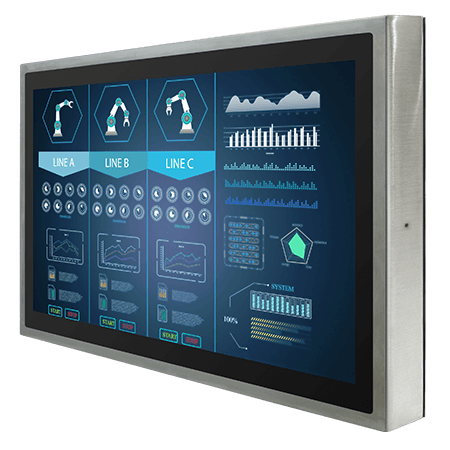

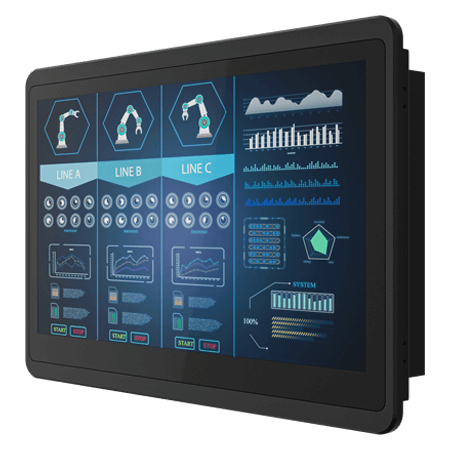

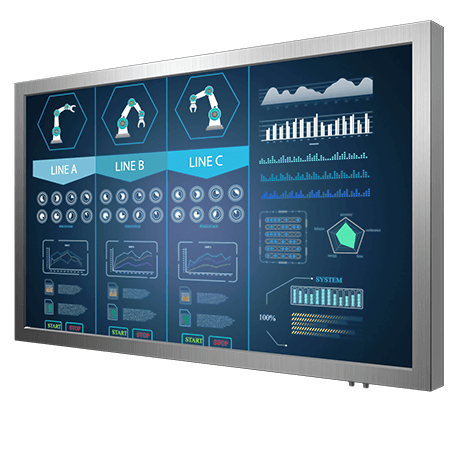

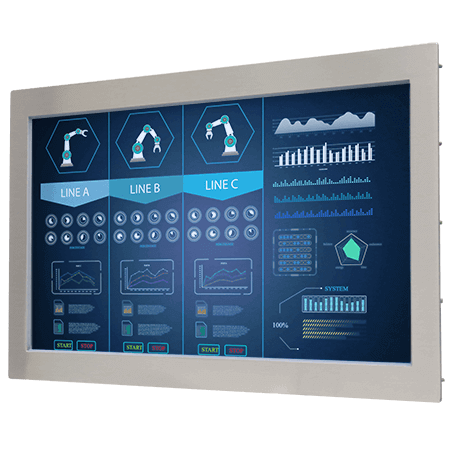

Alternative Products
